993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000101 - 000500) Dual Feed Roll (Optional On 993029) Parts Diagram

Pro-Chip Chipper without trailer

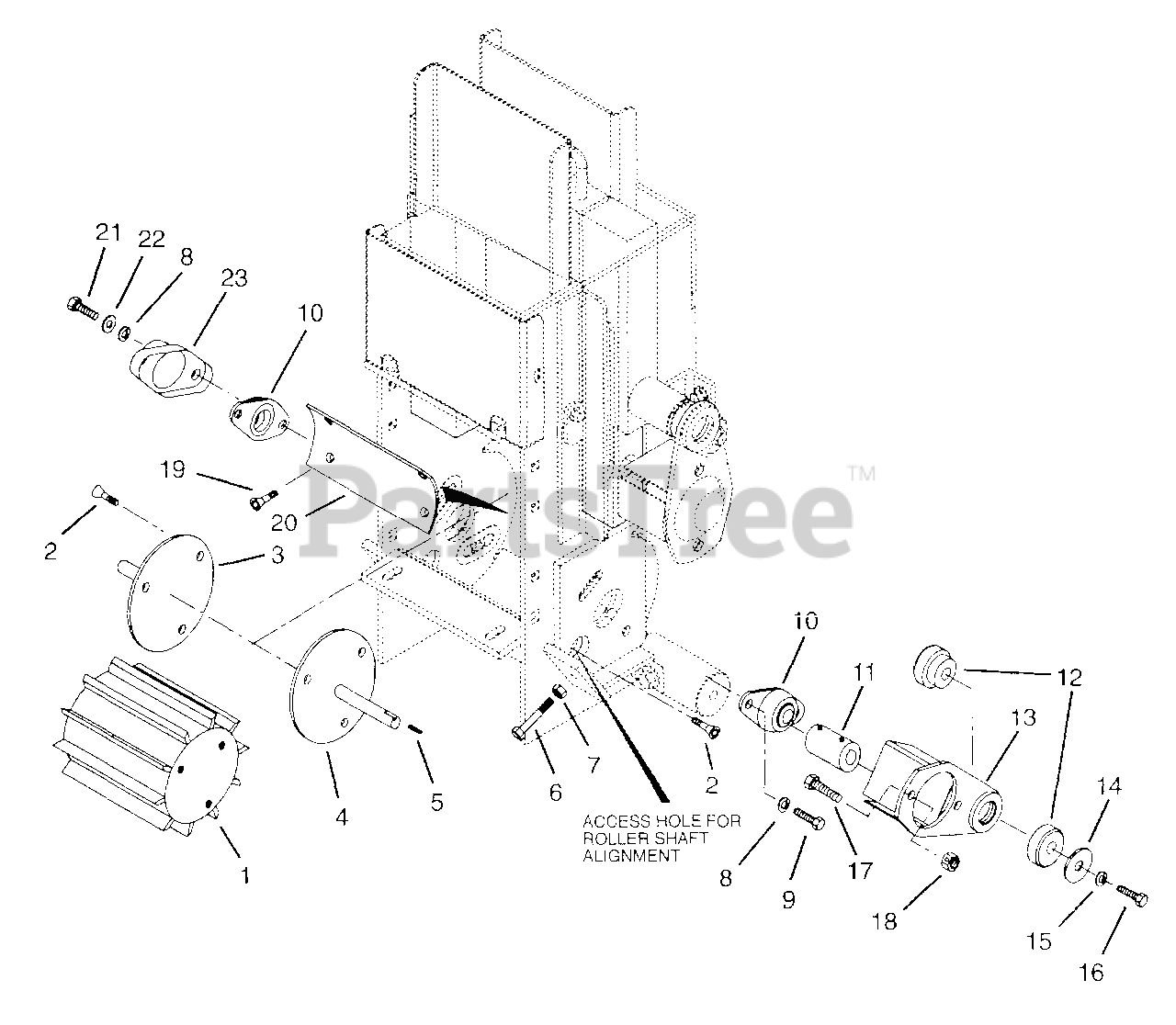

Dual Feed Roll (Optional On 993029) Parts Diagram

  • Title

1

Gravely 04108500

Roller

$

$

Not available

2

Gravely 05925500

Bolt-Flat Socket Head .50-13 x 1.0

$

$

Not available

3

Gravely 09341200

Roller Shaft - Left

$

$

Not available

4

Gravely 09341300

Roller Shaft - Right

$

$

Not available

5

Gravely 06603400

Key-Square

$3.99

$

In Stock, Qty 11

0

6

Gravely 05967800

Bolt-Hex-Full Thread .38-13 x 3.50

$

$

Not available

7

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

9

Gravely 05963800

Bolt-Hex .44-14 x 1.25 Grade 5

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 05416800

Bearing Flange

$

$

Not available

11

Gravely 04117500

Coupler

$52.99

$

Usually ships in 4-12 days

0

12

Gravely 09318200

Rubber Bushings

$

$

Not available

13

Gravely 09341100

Torque Arm Weldment

$

$

Not available

14

Gravely 06440900

Washer-Flat-Steel .50 x 2.25 x .13

$

$

Not available

15

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

16

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

17

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

18

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 06117300

Screw-Machine .25-20 x .50 FLTCNTRSK

$

$

Not available

20

Gravely 09341000

Wrapper-Inner

$

$

Not available

21

Gravely 05962800

Bolt-Hex .44-14 x 1.50 Grade 5
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

22

Gravely 06439200

Washer-Flat-Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 09342800

Cover-Bearing Feed Roll

$

$

Not available
