993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000101 - 000500) Battery And Fuel Parts Diagram

Pro-Chip Chipper without trailer

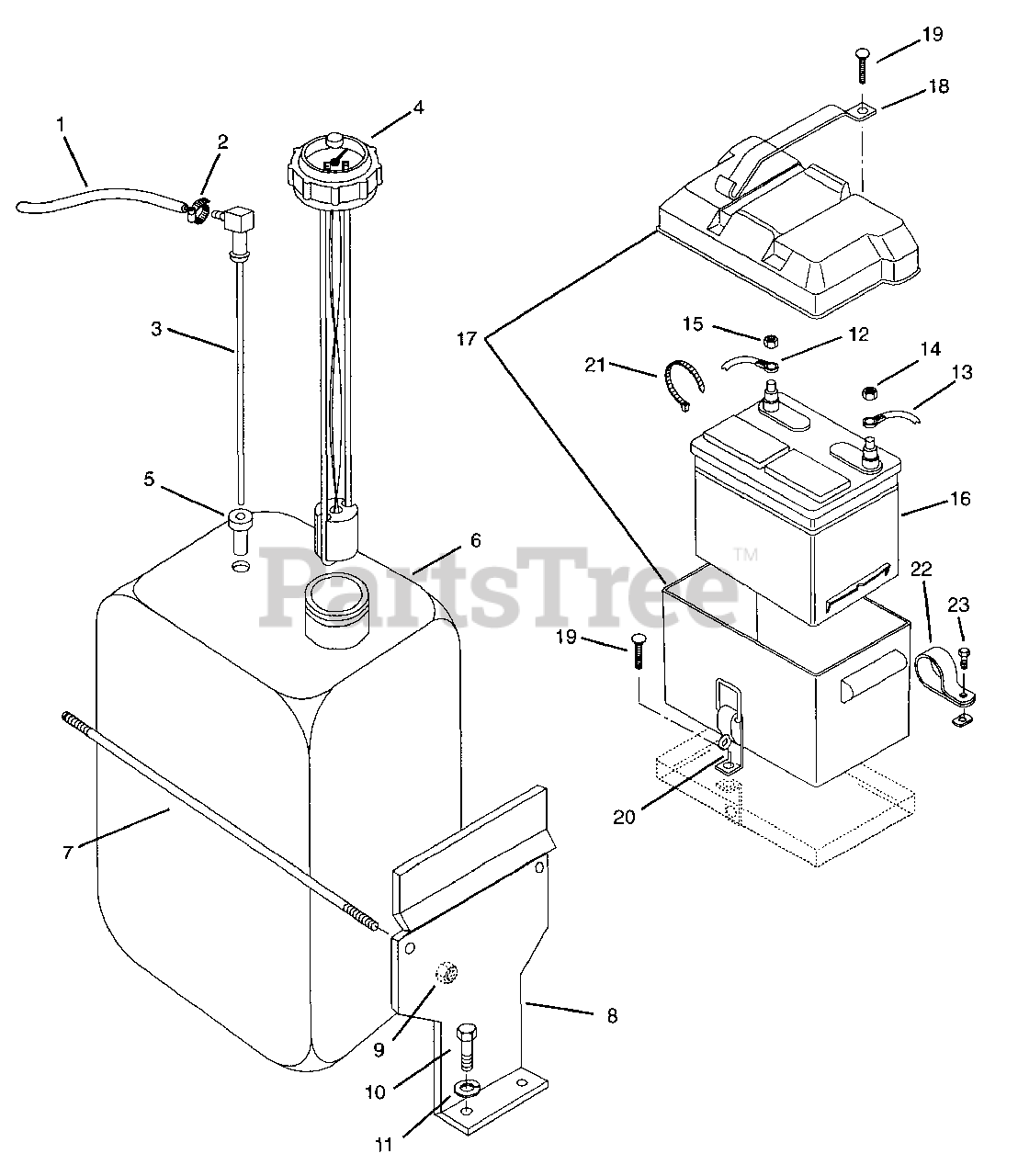

Battery And Fuel Parts Diagram

  • Title

1

Gravely 00095500

Gas Line - Bulk 1/4 IN. Inner Diameter

$

$

Not available

2

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 08983100

Fitting, Tank

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 08983200

Gauge, Fuel

$47.99

$

Usually ships in 4-12 days

0

5

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

6

Gravely 08983000

Tank, Fuel

$

$

Not available

7

Gravely 09037800

Rod, Tank

$29.99

$

Usually ships in 4-12 days

0

8

Gravely 08987900

Weldment, Tank Bracket

$

$

Not available

9

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05947200

Bolt-Hex .31-18 x .50 Grade 5
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

11

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04132500

Negative Battery Cable

$

$

Not available

13

Gravely 04132400

Positive Battery Cable

$

$

Not available

14

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

15

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 09305100

Battery, Marine Type

$

$

Not available

17

Gravely 09305200

Battery Box

$

$

Not available

18

Gravely 09329351

Strap-Battery Hold-Down

$

$

Not available

19

Gravely 06220200

Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

20

Gravely 09329451

Latch Assembly - Battery Hold-Down

$

$

Not available

21

Gravely 04003800

Tie Wrap

$

$

Not available

22

Gravely 06917900

Clamp-Steel 1.0

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0
