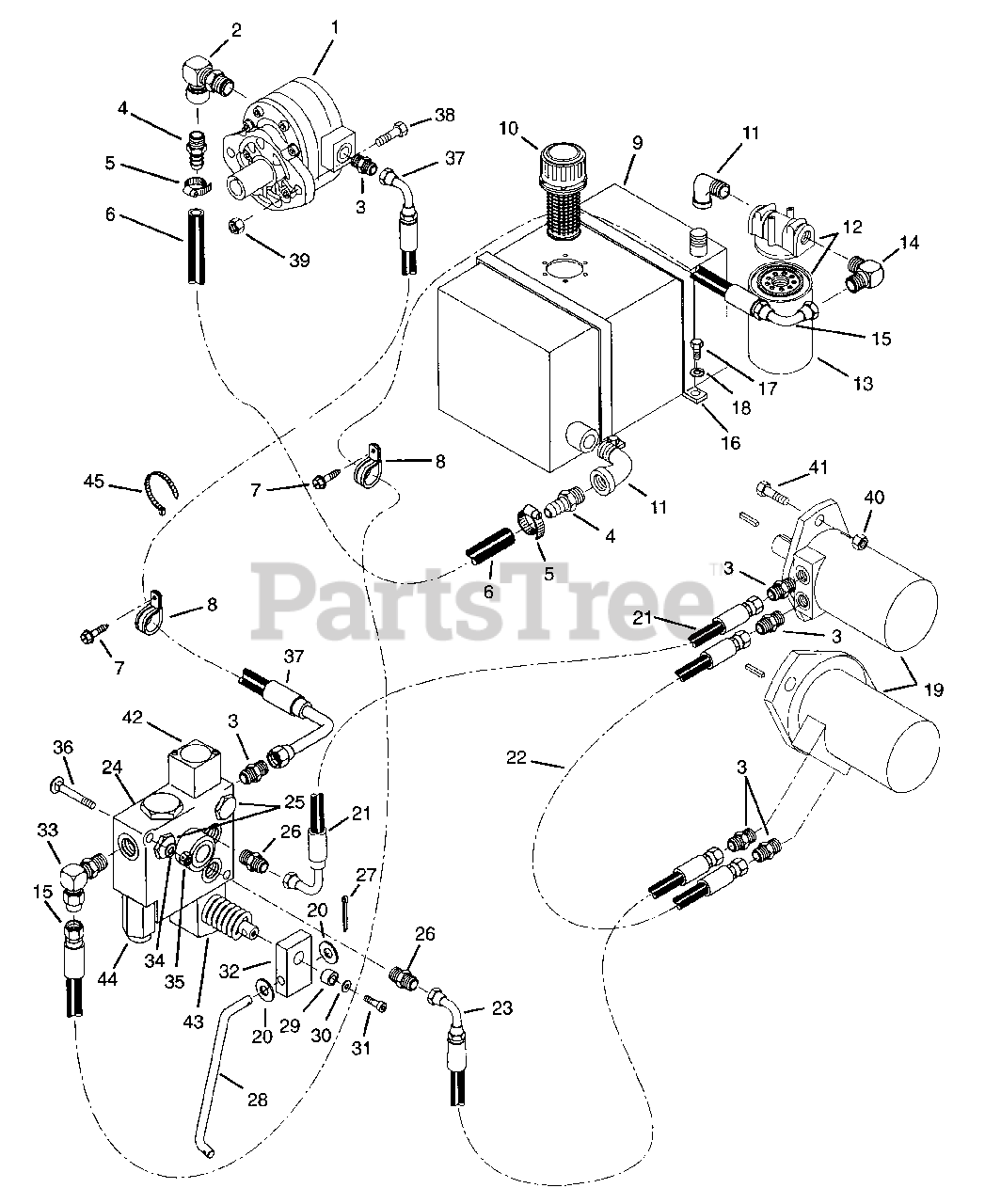

993029 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper (SN: 000101 - 000500) Hydraulics Parts Diagram

Pro-Chip Chipper

Hydraulics Parts Diagram

  • Title

1

Gravely 09334500

Pump-Hydraulic

$

$

Not available

2

Gravely 07051900

Elbow-Female

$

$

Not available

3

Gravely 07025800

Adapter-Hydraulic-Steel 7/8 "O" To 3/4

Note: (Model 029)

$13.99

$

In Stock, only 2 left!

0

3

Gravely 07025800

Adapter-Hydraulic-Steel 7/8 "O" To 3/4

Note: (Models 027, 032)

$13.99

$

In Stock, only 2 left!

0

4

Gravely 07027300

Barbed Insert Adapter

$

$

Not available

5

Gravely 04132100

Clamp-Hose H-20 1-3/16 To 1-3/4

$

$

Not available

6

Gravely 09339000

Hose-Suction (18 IN.)

Note: (18 IN.)

$

$

Not available

7

Gravely 07412900

Screw-Tapping .38-16 X .50 HWH
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06917900

Clamp-Steel

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 04109950

Hydraulic Oil Tank

$

$

Not available

10

Gravely 04105800

Filler Cap Assembly

$

$

Not available

11

Gravely 04108300

Street Elbow 90 Degree Galvanized 3/4 IN.

$

$

Not available

12

Gravely 04108000

Filter

Note: (Includes Element)

$

$

Not available

13

Gravely 04108100

Replacement Element (Part of Filter)

Note: (Part of Filter)

$50.99

$

Usually ships in 4-12 days

0

14

Gravely 04110500

Hydraulic Fitting

$

$

Not available

15

Gravely 09336700

Hose-Hydraulic 64 IN. ST

$48.99

$

Usually ships in 4-12 days

0

16

Gravely 04110150

Hydraulic Tank Straps
(Superseded to 04110151)

$

$

Not available

17

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 09338400

Motor-Hydraulic

Note: (Models 027, 032)

$713.99

$

Usually ships in 4-12 days

0

19

Gravely 09338400

Motor-Hydraulic

Note: (Model 029)

$713.99

$

Usually ships in 4-12 days

0

20

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 09336600

Hose-Hydraulic 22 IN. w/elbow

$40.99

$

Usually ships in 4-12 days

0

22

Gravely 09336400

Hose-Hydraulic-Steel

Note: (Models 027, 032)

$

$

Not available

23

Gravely 09335900

Hose-Hydraulic 26.5 IN. w/elbow

$42.99

$

Usually ships in 4-12 days

0

24

Gravely 09338500

Valve-Direction/Flow Control

Note: (Includes Items 42, 43, 44)

$

$

Not available

25

Gravely 07051700

Plug-Hex 3/4-16 "O" Ring

$

$

Not available

26

Gravely 07020400

Adapter-hydraulic-Steel 3/4 "O" To 3/4

$

$

Not available

27

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

28

Gravely 09343100

Rod-Valve

$

$

Not available

29

Gravely 03101900

Spacer .318 x .430 x .375

$

$

Not available

30

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 05932500

Screw-Socket Head M8 x 1.25 x 20

$

$

Not available

32

Gravely 09342400

Adapter-Valve Handle

$

$

Not available

33

Gravely 07020000

Adapter-Hydraulic Elbow 7/8 "O" To 3/4

$

$

Not available

34

Gravely 06308600

Washer-Locking .31-.078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06529200

Nut-Locking-Center .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

36

Gravely 06212300

Bolt-Round Head Square Neck .31-18 x 2.75

$2.99

$

In Stock, only 4 left!

0

37

Gravely 09336500

Hose-Hydraulic 70 IN. w/Elbow

$71.99

$

Usually ships in 4-12 days

0

38

Gravely 05963800

Bolt-Hex .44-14 X 1.50 Grade 5

$2.99

$

Usually ships in 4-12 days

0

39

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

40

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

Note: (Model 029)

$3.99

$

In Stock, only 2 left!

0

40

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

Note: (Models 027, 032)

$3.99

$

In Stock, only 2 left!

0

41

Gravely 05962000

Bolt-Hex .50-13 X 1.50 Grade 5
(Superseded to 05901631)

Note: (Model 029)

$3.99

$

In Stock, only 1 left!

0

41

Gravely 05962000

Bolt-Hex .50-13 X 1.50 Grade 5
(Superseded to 05901631)

Note: (Models 027, 032)

$3.99

$

In Stock, only 1 left!

0

42

Gravely 09333900

Detent Assembly-Control Valve

$

$

Not available

43

Gravely 09334100

Lever Assembly-Hydraulic Control Valve

$

$

Not available

44

Gravely 09334000

Relief Valve-Hydraulic Control Assembly

$

$

Not available

45

Gravely 04003800

Tie Wrap

$

$

Not available
