993027 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper (SN: 000101 - 000500) Flywheel Parts Diagram

Pro-Chip Chipper

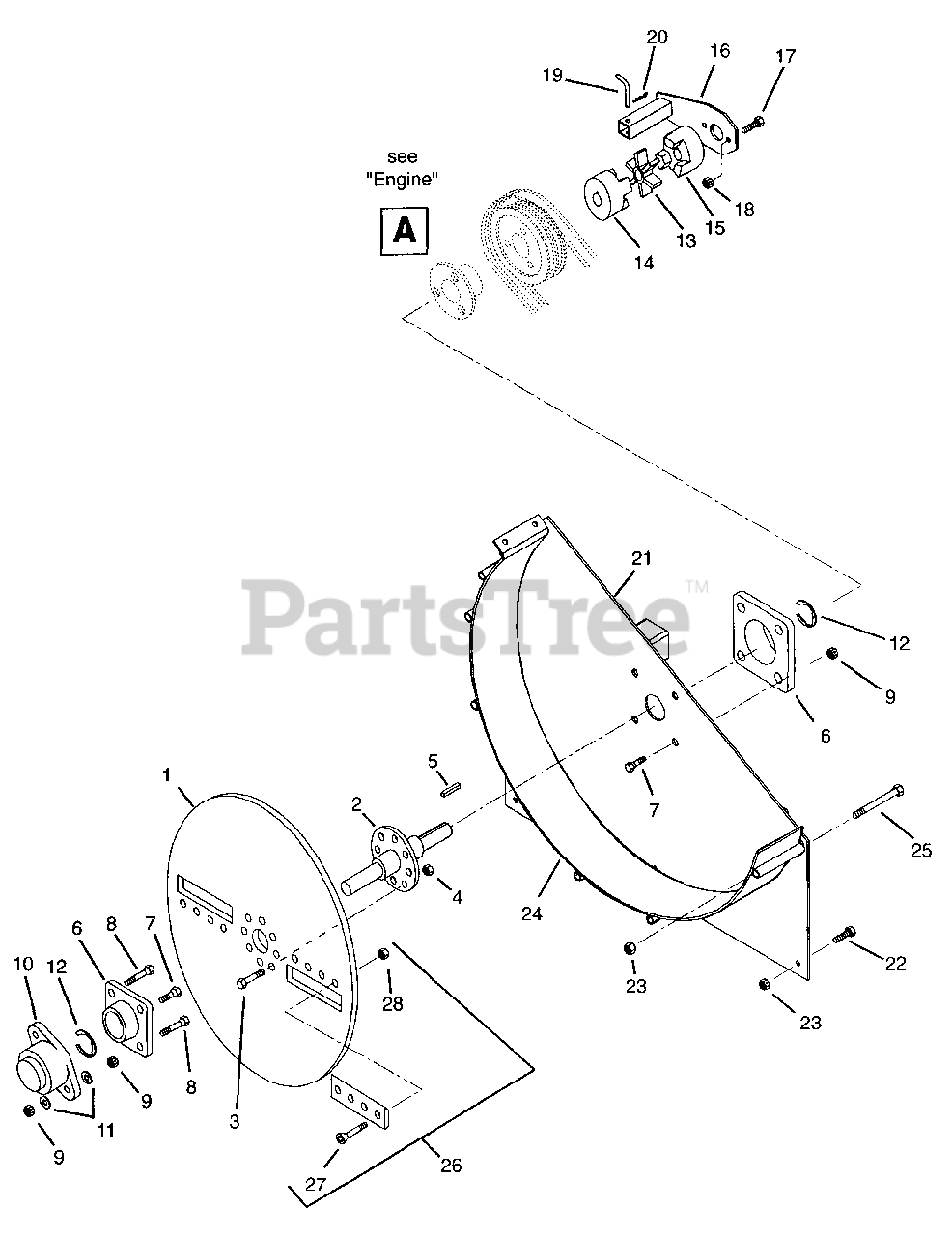

Flywheel Parts Diagram

  • Title
1

Gravely 09302300

Cutting Wheel

$1429.99

$

Usually ships in 4-12 days

0

2

Gravely 04120000

Arbor Shaft

$

$

Not available

3

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

4

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 06605400

Key-Straight .38 x 2.75 x .38

$

$

Not available

6

Gravely 09302100

4 Hole Flange Bearing

$

$

Not available

7

Gravely 07009700

Bolt-Lug .50-20 x 1.50

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 07029400

Wheel Lug Bolt 1/2-20 x 2.50

$

$

Not available

9

Gravely 06530000

Nut-Locking-Center .50-20

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 09308900

Bearing Cover

$30.99

$

Usually ships in 4-12 days

0

11

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05710400

Ring-Retaining-External 1.500 x .109
(Superseded to 05715500)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 04112400

Flex Joint Coupler

$168.99

$

In Stock, only 2 left!

0

14

Gravely 04113300

Coupler Half

$

$

Not available

15

Gravely 04112300

Coupler Half

$

$

Not available

16

Gravely 04107600

Hydraulic Pump Mount

$

$

Not available

17

Gravely 05963800

Bolt-Hex .44-14 x 1.50 Grade 5

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

$

$

Not available

20

Gravely 06714000

Pin-Hair-Internal

$2.99

$

In Stock, Qty 6

0

21

Gravely 09339900

Plate Weldment-Flywheel Housing

$

$

Not available

22

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 09340000

Wrapper Weldment-Flywheel Housing

$45.99

$

Usually ships in 4-12 days

0

25

Gravely 05966100

Bolt-Hex .38-1 6 x 5.75 Grade 5

$

$

Not available

26

Gravely 59304300

Chipper Knife Set

Note: (Contains Items 27 & 28)

$

$

Not available

27

Gravely 05924800

Bolt-Flat Socket Head .50-13 x 1.75 Grade 8

$

$

Not available

28

Gravely 06528200

Nut-Locking .50-13 Grade C

$3.99

$

In Stock, only 3 left!

0
