993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Wiring Diagram Parts Diagram

Pro-Chip Chipper

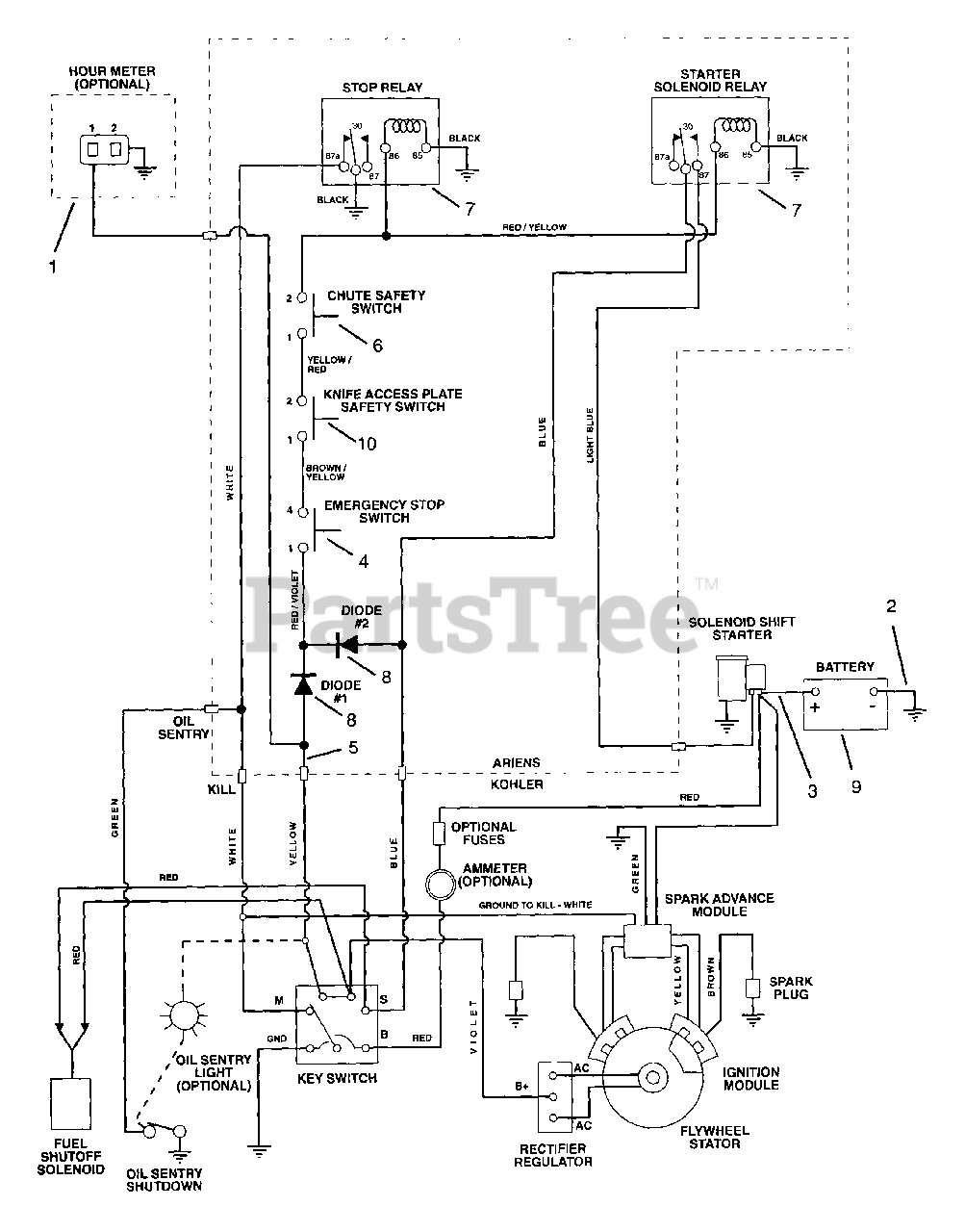

Wiring Diagram Parts Diagram

  • Title

1

Gravely 79302100

Accessory-Hour Meter

Note: (Optional)

$

$

Not available

2

Gravely 09304300

Battery Cable (Positive)

Note: (Positive)

$

$

Not available

3

Gravely 09304200

Battery Cable (Negative)

Note: (Negative)

$

$

Not available

4

Gravely 09303500

Switch Push/Pull

Note: Before Serial #000134

$

$

Not available

4

Gravely 01545600

Switch, Clutch with Retainer

Note: After Serial #000135

$25.99

$

In Stock, Qty 20+

0

5

Gravely 09302400

Harness-Wiring

Note: Before Serial #000134

$

$

Not available

5

Gravely 09348200

Harness-Wiring

Note: (Includes Items 6 through 8); After Serial #000135

$

$

Not available

6

Gravely 09348500

Switch, Sealed Safety

Note: After Serial #000135

$

$

Not available

7

Gravely 03042800

Relay
(Superseded to 00432101)

Note: After Serial #000135

$22.99

$

In Stock, Qty 20+

0

8

Gravely 03081700

Diode

Note: After Serial #000135

$26.99

$

Usually ships in 4-12 days

0

9

Gravely 09305100

Battery

$

$

Not available

10

Gravely 01526100

Switch, Knife Access Plate Safety

$55.99

$

In Stock, only 1 left!

0
