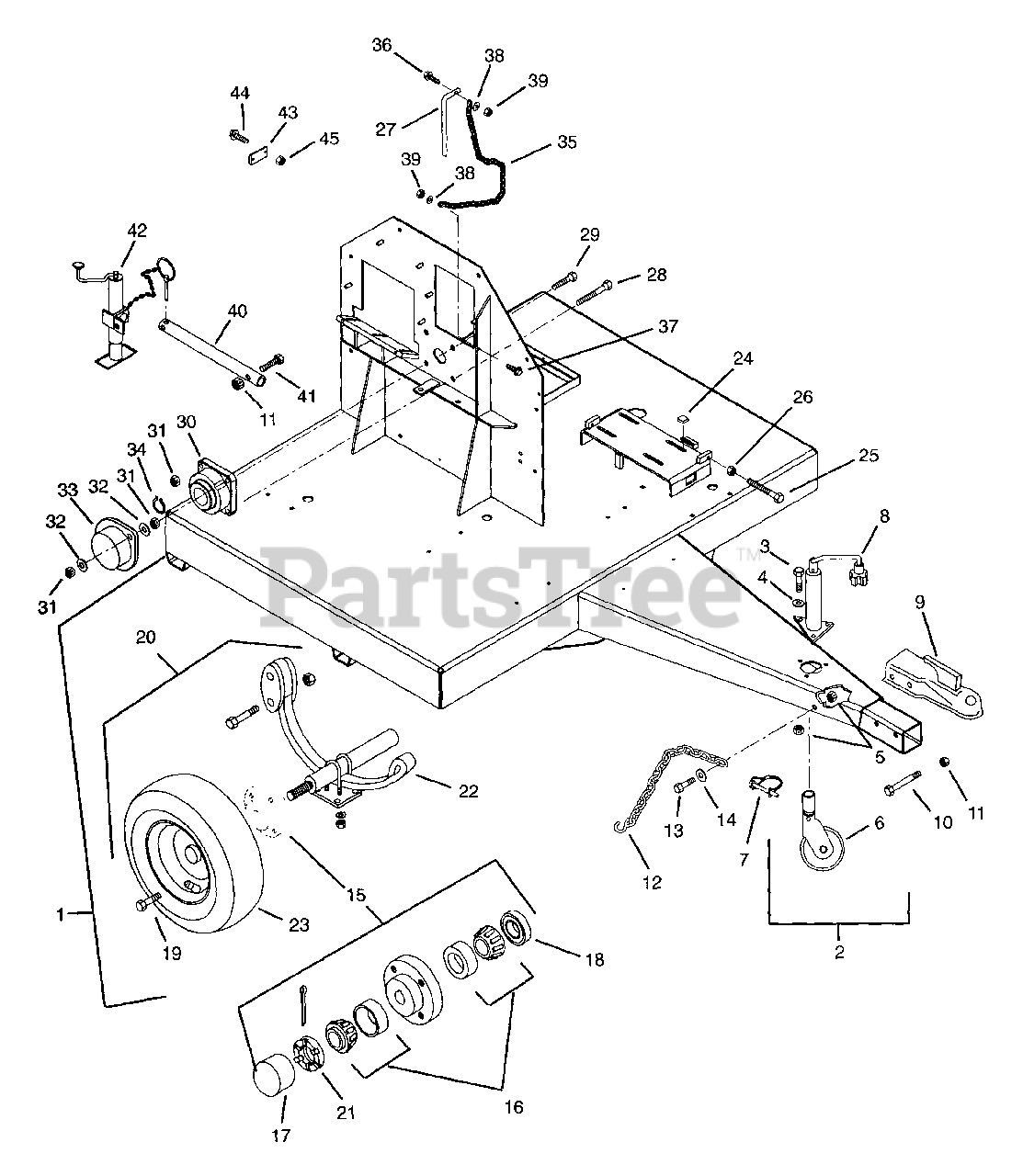

993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Trailer Parts Diagram

Pro-Chip Chipper

Trailer Parts Diagram

  • Title

1

Gravely 09348000

Trailer Bed, Complete

Note: (Contains Items 20 and 23)

$

$

Not available

2

Gravely 09301700

Jack Assembly

Note: (Contains items 6-8)

$

$

Not available

3

Gravely 05963800

Bolt-Hex .44-14 x 1.25 Grade 5

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

5

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

6

Gravely 09301900

Swivel Wheel

$

$

Not available

7

Gravely 09302000

Quick Latch Pin, Jack Wheel

$

$

Not available

8

Gravely 09301800

Pillow Jack Assembly - Less Wheel

$

$

Not available

9

Gravely 09300100

2" Coupler Ball Type

$

$

Not available

10

Gravely 05960100

Bolt-Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 09300200

Safety Chain,

Note: Includes "S" Hook

$

$

Not available

13

Gravely 05958700

Bolt-Hex .44-14 x 1.00 Grade 5
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

14

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

15

Gravely 09301000

Axle Hub, Complete

Note: (Contains Items 16-19)

$

$

Not available

16

Gravely 05417300

Bearing Replacement Assembly

$

$

Not available

17

Grease Cap

Grease Cap

$

$

Not available

18

Seal

Seal

$

$

Not available

19

Gravely 07014600

Bolt-Hex .50-20 x .75 x 1.62
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

20

Gravely 09300900

Trailer Axle, Complete - Less Tire and Wheels
(Superseded to 09353300)

Note: (Contains Items 15,19, 21,22)

$392.99

$

Usually ships in 4-12 days

0

21

Gravely 06513100

Nut-Slotted 1.0-14

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 09301100

Axle Spring

$

$

Not available

23

Gravely 07119700

Tire and Wheel Assembly

$

$

Not available

24

Gravely 06605400

Key-Straight .38 x 2.75 x .38

$

$

Not available

25

Gravely 05967800

Bolt-Hex .38-16 x 3.5

$

$

Not available

26

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 09335300

Pin-Arbor Shaft Lock

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 07029400

Bolt-Lug .50-20 x 2.50

$

$

Not available

29

Gravely 07009700

Bolt-Lug .50-20 x 1.50

$11.99

$

Usually ships in 4-12 days

0

30

Gravely 09302100

Bearing-Flange 1.500 x 4 Bolt x 2.047

$

$

Not available

31

Gravely 06530000

Nut-Locking-Center .50-20

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 09308900

Bearing Cover

$30.99

$

Usually ships in 4-12 days

0

34

Gravely 05710400

Retaining Ring-External 1.500 x .109
(Superseded to 05715500)

$5.99

$

Usually ships in 4-12 days

0

35

Gravely 09335400

Chain-14 Straight Link #4

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 06118500

Screw-Machine-Hex Washer Head 10-24 x 1.00
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

37

Gravely 06116900

Screw-Machine-Hex Washer Head 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

38

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

39

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 09342000

Tube-Jack Pivot

$

$

Not available

41

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

42

Gravely 09320400

Jack-2000 LB x 12.75 Screw

$

$

Not available

43

Gravely 07536500

Reflector

$22.99

$

Usually ships in 4-12 days

0

44

Gravely 06116900

Screw-Machine 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

45

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
