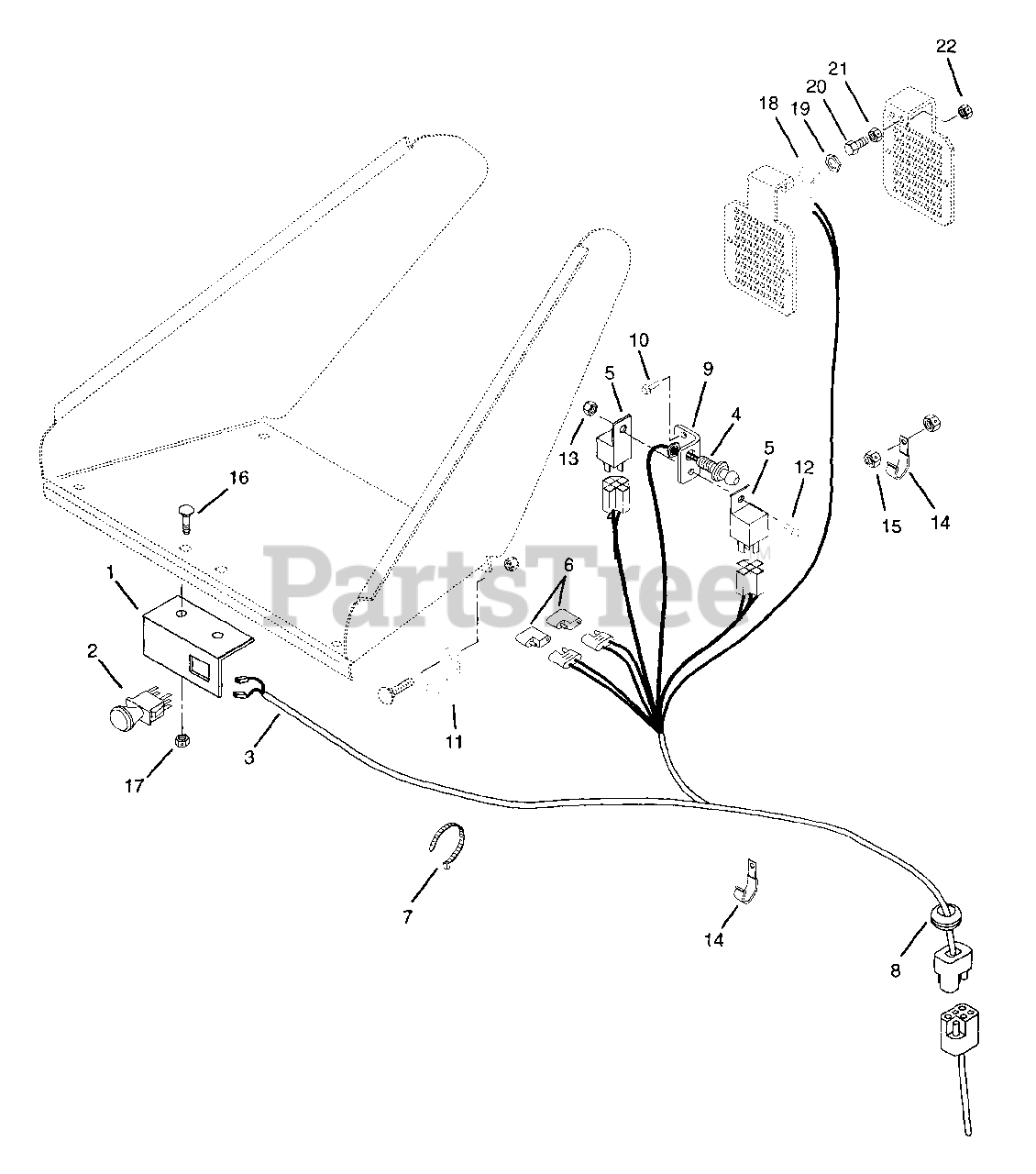

993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Hopper Wiring Parts Diagram

Pro-Chip Chipper

Hopper Wiring Parts Diagram

  • Title

1

Gravely 09311500

Bracket, Stop Switch

Note: Before Serial #000135

$

$

Not available

1

Gravely 09348700

Bracket, Stop Switch

Note: After Serial # 000134

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 09303500

Switch, Push/Pull

Note: Before Serial #000135

$

$

Not available

2

Gravely 01545600

Switch, Emergency Stop

Note: After Serial # 000134

$25.99

$

In Stock, Qty 20+

0

3

Gravely 09303500

Harness, Wiring

Note: (Includes Items 4, 5, & 6); Before Serial #000135

$

$

Not available

3

Gravely 09348200

Harness, Wiring

Note: After Serial # 000134

$

$

Not available

4

Gravely 09348500

Switch

Note: After Serial # 000134

$

$

Not available

5

Gravely 040216

Relay
(Superseded to 00432101)

Note: After Serial # 000134

$22.99

$

In Stock, Qty 20+

0

6

Gravely 03081700

Diode

Note: After Serial # 000134

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 04003800

Tie Wrap

$

$

Not available

8

Gravely 045290

Grommet .75 x 1.06 x 1.38
(Superseded to 07530600)

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 09348300

Bracket-Switch & Relay

Note: After Serial # 000134

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

Note: After Serial # 000134

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06904800

Clamp, Line

$

$

Not available

12

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

Note: After Serial # 000134

$2.49

$

In Stock, Qty 15

0

13

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

Note: After Serial # 000134

$0.99

$

In Stock, Qty 20+

0

14

Gravely 036518

J-Clamp
(Superseded to 06909400)

Note: After Serial # 000134

$3.49

$

In Stock, Qty 8

0

15

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

Note: After Serial # 000134

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 01526100

Switch, Safety

Note: After Serial # 000134

$55.99

$

Usually ships in 4-12 days

0

19

Gravely 07015100

Nut, Stamped .56-18

Note: After Serial # 000134

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

Note: After Serial # 000134

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

Note: After Serial # 000134

$0.99

$

In Stock, Qty 10

0

22

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

Note: After Serial # 000134

$1.49

$

In Stock, Qty 20+

0
