993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Hopper Parts Diagram

Pro-Chip Chipper

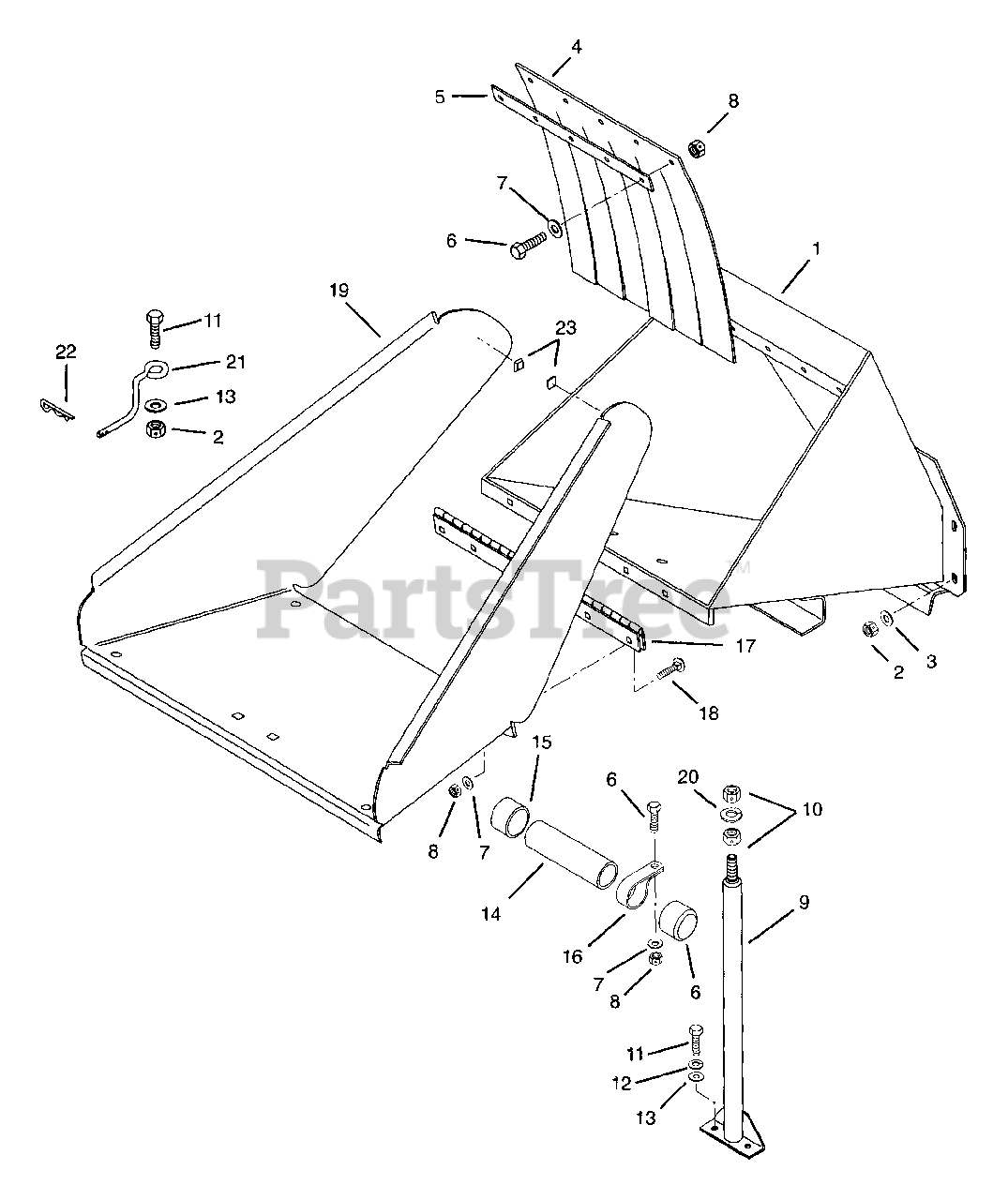

Hopper Parts Diagram

  • Title

1

Gravely 04101200

Hopper
(Superseded to 04101253)

$

$

Not available

2

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06444000

Washer-Flat-Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 09303900

Flap-Protective

$

$

Not available

5

Gravely 04102700

Brace

$

$

Not available

6

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

7

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 04101900

Hopper Stand

$

$

Not available

10

Gravely 06537600

Nut-Locking-Center .75-10

$

$

Not available

11

Gravely 05948700

Bolt-Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09305800

Plastic Tube, Instructions

$

$

Not available

15

Gravely 09305900

End Cap, Instruction Tube

$

$

Not available

16

Gravely 06924400

Clamp

$

$

Not available

17

Gravely 09310800

Hinge

$

$

Not available

18

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 09311400

Safety Bonnet

$

$

Not available

20

Gravely 06310300

Washer-Locking .75 x .188

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09326600

Bonnet Positioner

$

$

Not available

22

Gravely 06714000

Pin-Hair-Internal .15 x 2.937

$2.99

$

In Stock, Qty 6

0

23

Gravely 07525100

Stop

$2.49

$

Usually ships in 4-12 days

0
