993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Flywheel And Housing Parts Diagram

Pro-Chip Chipper

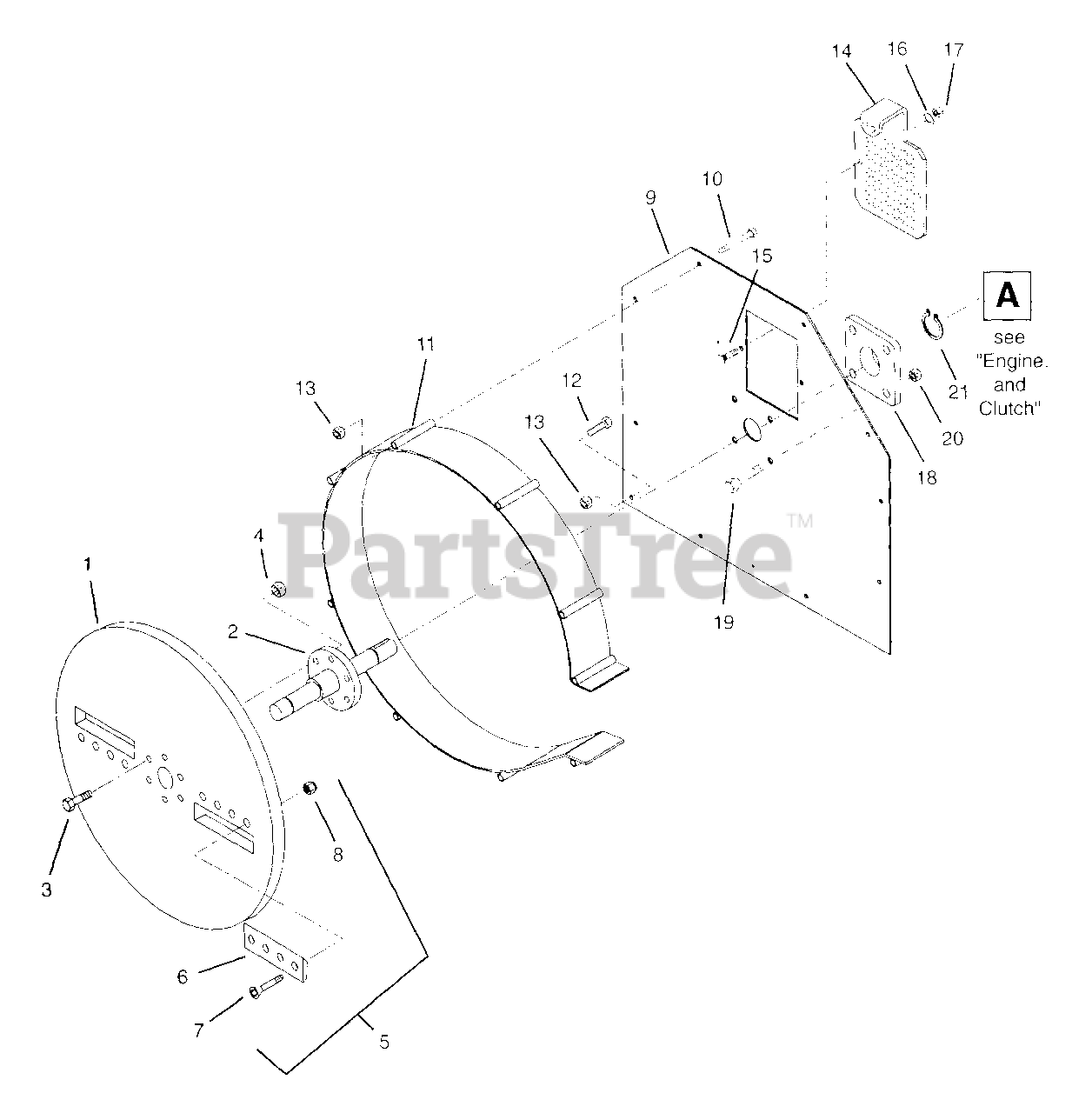

Flywheel And Housing Parts Diagram

  • Title

1

Gravely 09302300

Flywheel

$1429.99

$

Usually ships in 4-12 days

0

2

Gravely 09302200

Shaft-Flywheel

$

$

Not available

3

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

4

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 59304100

Chipper Knife Set - 210/PTO

Note: (Contains Items 6-8)

$

$

Not available

6

Chipper Knife

Chipper Knife

$

$

Not available

7

Gravely 05924800

Bolt-Flat Socket Head .50-13 x 1.75 Grade 8

$

$

Not available

8

Gravely 06528200

Nut-Locking-Crown .50-13 Grade C

$3.99

$

In Stock, only 3 left!

0

9

Gravely 04100900

Blower Side, Left Hand
(Superseded to 04100953)

$

$

Not available

10

Gravely 05966100

Bolt-Hex .38-16 x 5.75 Grade 5

$

$

Not available

11

Gravely 04100800

Drum Strap Weldment

$

$

Not available

12

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09348600

Plate, Knife Access

$

$

Not available

15

Gravely 07009800

Bolt-Carriage Special Ribbed .38-16 x 1.0 Grade 5

$

$

Not available

16

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 09302100

Bearing-Flange 1.500 x 4 Bolt x 2.047

$

$

Not available

19

Gravely 07009700

Bolt-Lug,50-20 x 1.50

$11.99

$

Usually ships in 4-12 days

0

20

Gravely 06530000

Nut-Locking-Center .50-20

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 05710400

Retaining Ring-External 1.500 x .109
(Superseded to 05715500)

$5.99

$

Usually ships in 4-12 days

0
