993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Chute And Belt Guard Parts Diagram

Pro-Chip Chipper

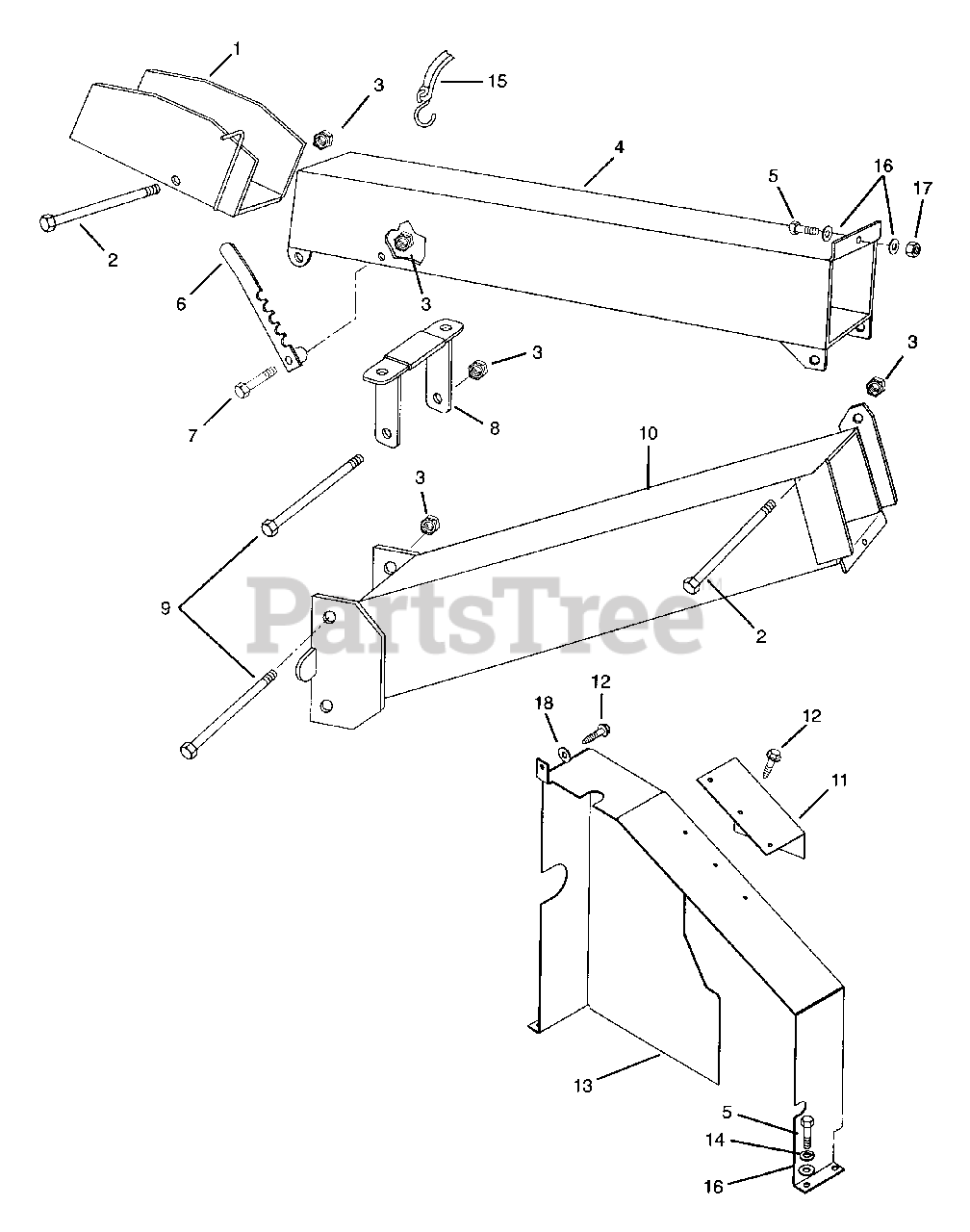

Chute And Belt Guard Parts Diagram

  • Title

1

Gravely 04125800

Cap

$

$

Not available

2

Gravely 05966000

Bolt-Hex .38-16 x 6.00 Grade 5

$

$

Not available

3

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09350800

Chute, Upper

$

$

Not available

5

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09303400

Lock Bar
(Superseded to 09303451)

$

$

Not available

7

Gravely 05963300

Bolt-Hex .39-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

8

Gravely 04101851

Chute Rest

$

$

Not available

9

Gravely 05966100

Bolt-Hex .38-16 x 5.75 Grade 5

$

$

Not available

10

Gravely 09348100

Lower Chute

$

$

Not available

11

Gravely 09344800

Sheave Guard

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 09343300

Belt Guard Weldment

$

$

Not available

14

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07516300

Rubber Strap - Hold Down

$

$

Not available

16

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0
