993025 - Gravely PTO Chipper (SN: 000101 & Above) DRIVE SHAFT Parts Diagram

PTO Chipper

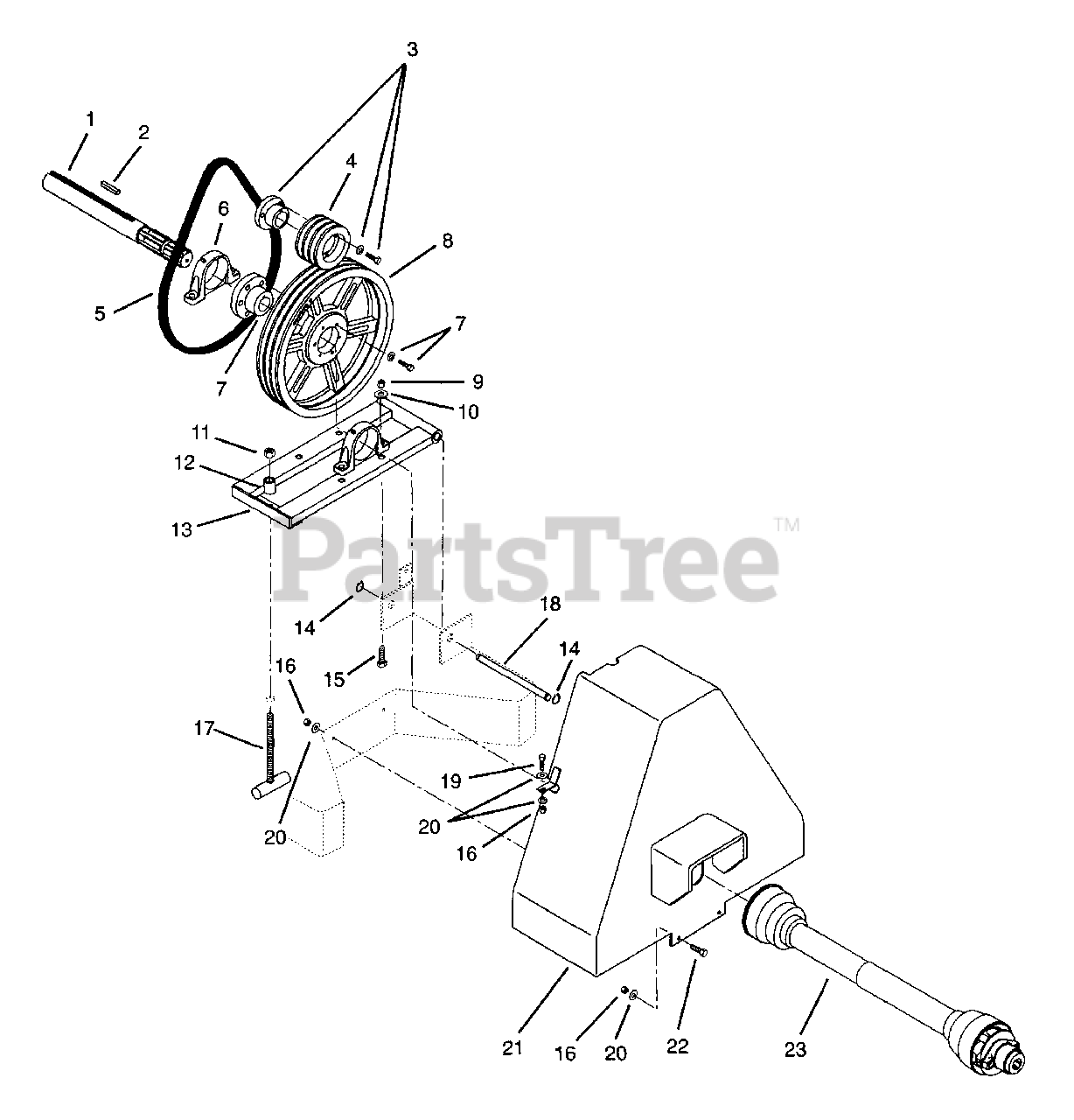

DRIVE SHAFT Parts Diagram

  • Title

1

Gravely 04118900

PTO Jack Shaft

$

$

Not available

2

Gravely 06605600

Key-Straight .38 x 2.0 x .38

$

$

Not available

3

Gravely 04118800

Bushing with Hardware

$

$

Not available

4

Gravely 07314400

Pulley

$

$

Not available

5

Gravely 07233700

V-Belt B54

$

$

Not available

6

Gravely 05417900

Bearing Pillow

$

$

Not available

7

Gravely 09304500

Bushing SK x 1 1/2 with Hardware

$43.99

$

Usually ships in 4-12 days

0

8

Gravely 07314200

Pulley

$

$

Not available

9

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 04118700

Adjuster Spacer

$

$

Not available

13

Gravely 04118553

Swing Arm Weldment
(Superseded to 04118500)

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 05706200

Ring-Retaining-External 1.00 x .042

$2.49

$

In Stock, only 1 left!

0

15

Gravely 05965500

Bolt-Hex .50-13 x 2.75 Grade 5
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 04118600

Threaded T Handle

$

$

Not available

18

Gravely 09333600

Pin-Swing Arm

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 04119053

Belt Guard Weldment
(Superseded to 04119000)

$121.99

$

Usually ships in 4-12 days

0

22

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 74100300

PTO Kit

$

$

Not available
