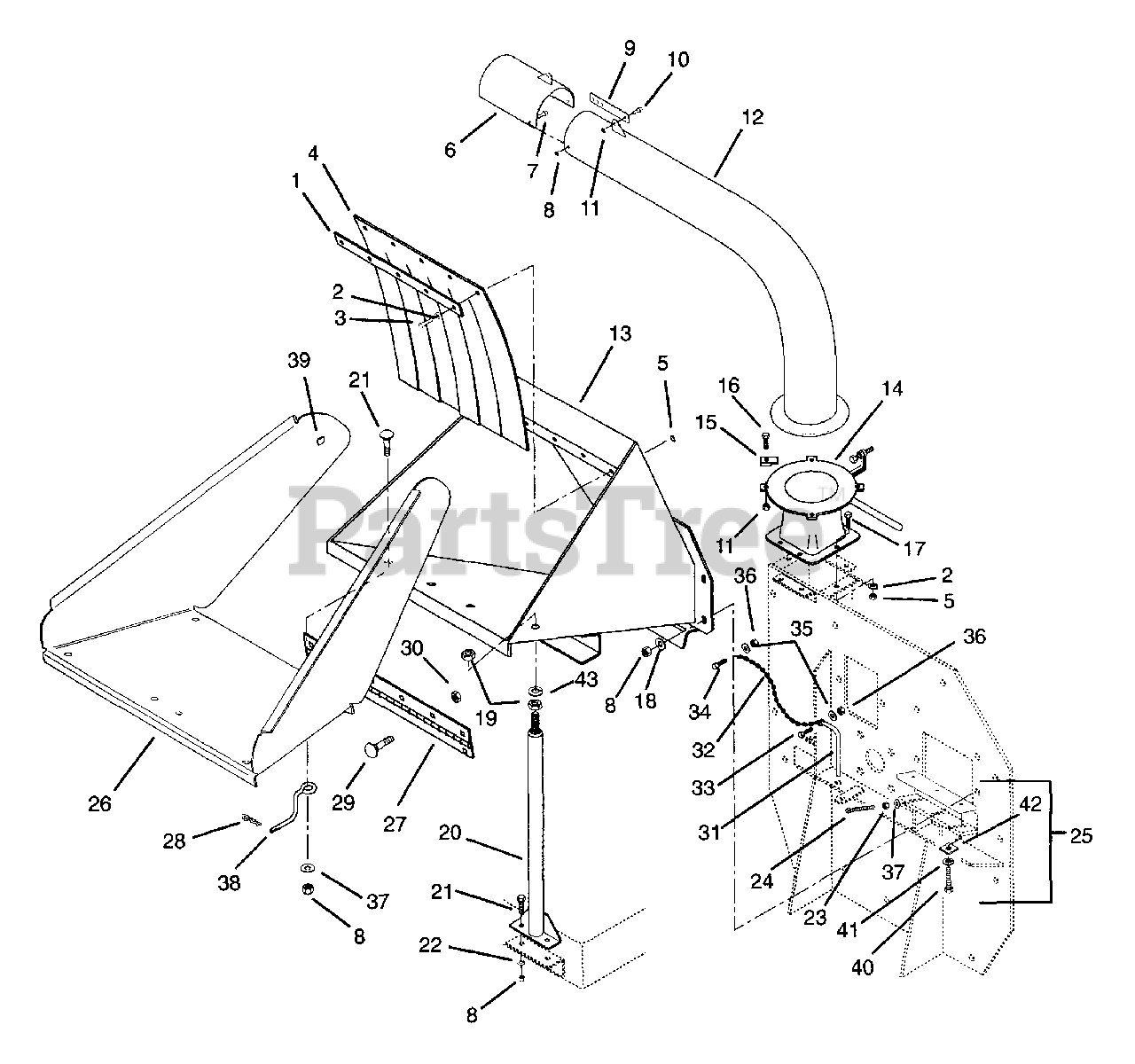

993025 - Gravely PTO Chipper (SN: 000101 & Above) DISCHARGE CHUTE Parts Diagram

PTO Chipper

DISCHARGE CHUTE Parts Diagram

  • Title

1

Gravely 04102753

Brace
(Superseded to 04102700)

$

$

Not available

2

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09303900

Rubber Flap

$

$

Not available

5

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 04107353

Deflector
(Superseded to 04107300)

$

$

Not available

7

Gravely 05948700

Bolt-Hex .38-16 x 1.0 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06529600

Nut-Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 04107253

Deflector Arm
(Superseded to 04107200)

$

$

Not available

10

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06529800

Nut-Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 04107153

Discharge Chute
(Superseded to 04107100)

$

$

Not available

13

Gravely 04118300

PTO-Hopper Weldment

$

$

Not available

14

Gravely 09349900

Discharge Neck

$

$

Not available

15

Gravely 09333353

Clamp
(Superseded to 09333300)

$

$

Not available

16

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

17

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

18

Gravely 06444000

Washer-Flat-Steel .406 x 1.000 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06537600

Nut-Locking-Center .75-10

$

$

Not available

20

Gravely 04101900

Hopper Stand

$

$

Not available

21

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06004100

Screw-Set .38-16 x 3.50
(Superseded to 05967800)

$

$

Not available

25

Gravely 59305200

Bed Knife Kit 210/PTO

Note: (Includes items 40,41,42)

$

$

Not available

26

Gravely 09311400

Safety Bonnet Weldment

$

$

Not available

27

Gravely 09310800

Hinge

$

$

Not available

28

Gravely 06713200

Pin-Hair Internal .15 x .43 x 2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

29

Gravely 06220600

Bolt Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 09335300

Pin-Arbor Shaft Lock

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 09335400

Chain-14 Straight Link

$5.99

$

Usually ships in 4-12 days

0

33

Gravely 06118500

Screw-Machine 10-24 x 1.00
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

34

Gravely 06116900

Screw-Machine 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

35

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

36

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 09326600

Bonnet Positioner

$

$

Not available

39

Gravely 07525100

Stop

$2.49

$

Usually ships in 4-12 days

0

40

Gravely 05965900

Bolt-Hex .38-16 x 1.25 Grade 8

$

$

Not available

41

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 04127300

Double Hole Washer

$

$

Not available

43

Gravely 06310300

Washer-Locking .75 x .188

$1.49

$

In Stock, Qty 20+

0
