993017 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 102hp Perkins Diesel (SN: 000101 & Above) FUEL SYSTEM Parts Diagram

Pro-Chip Chipper, 102hp Perkins Diesel

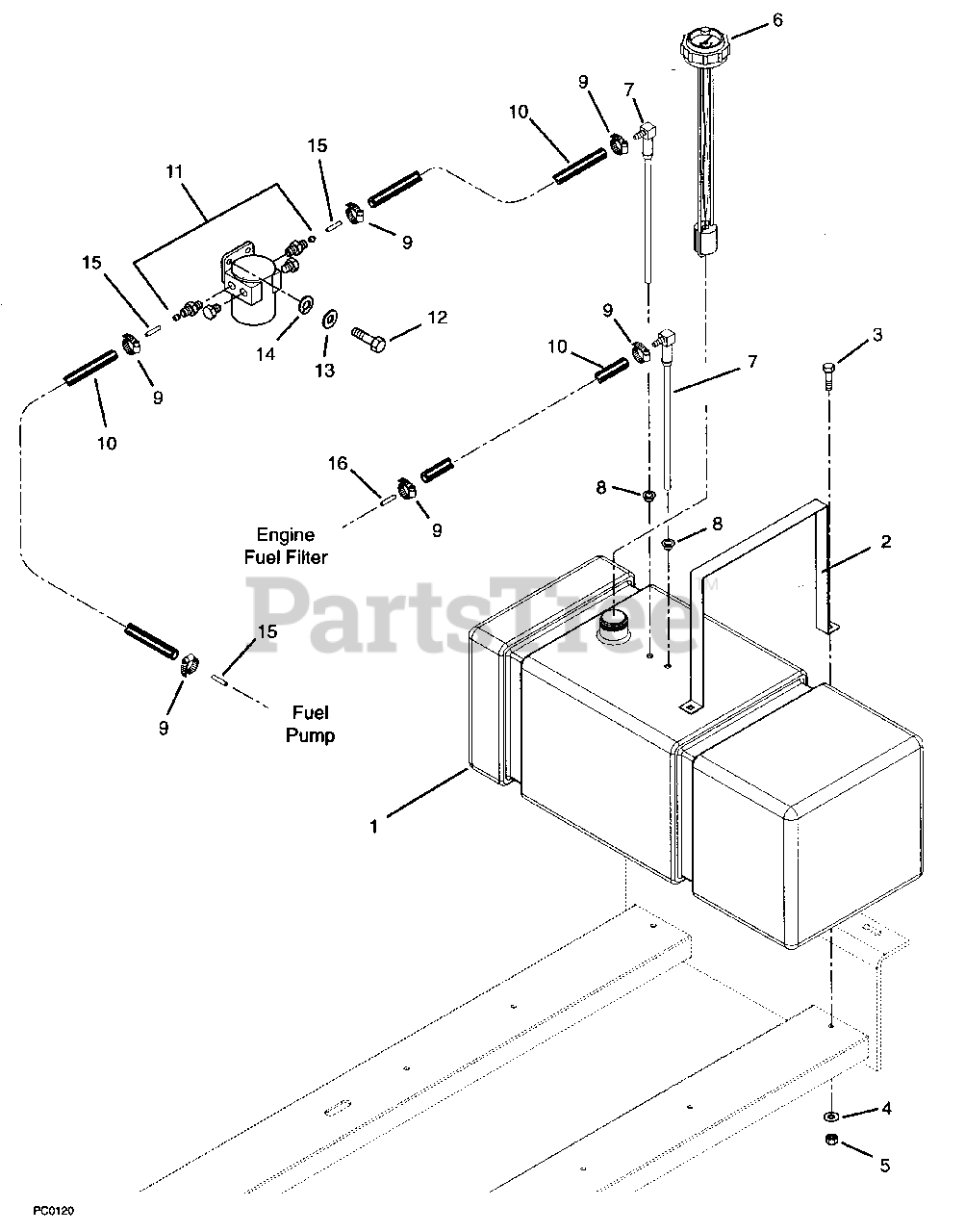

FUEL SYSTEM Parts Diagram

  • Title

1

Gravely 09319300

Fuel Tank

$

$

Not available

2

Gravely 09321800

Fuel Tank Strap

$

$

Not available

3

Gravely 180128

Bolt-Hex .38-16 x 1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06400800

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 036889

Nut-Locking .375-16
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 047615

Gauge-Fuel
(Superseded to 08983200)

$47.99

$

Usually ships in 4-12 days

0

7

Gravely 047614

Fitting-Tank
(Superseded to 08983100)

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 032045

Clamp-Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 021134

Bulk Gas Line
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09326900

Fuel Filter-Perkins

$

$

Not available

12

Gravely 180079

Bolt-Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 120386

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06300200

Washer-Lock .250 x .077
(Superseded to 06308000)

$

$

Not available

15

Gravely 00928600

Tubing 5/16" OD x .028 Wall x 1.5

$

$

Not available

16

Gravely 00928500

Tubing 1/4" OD x .028 Wall x 1.5

$

$

Not available
