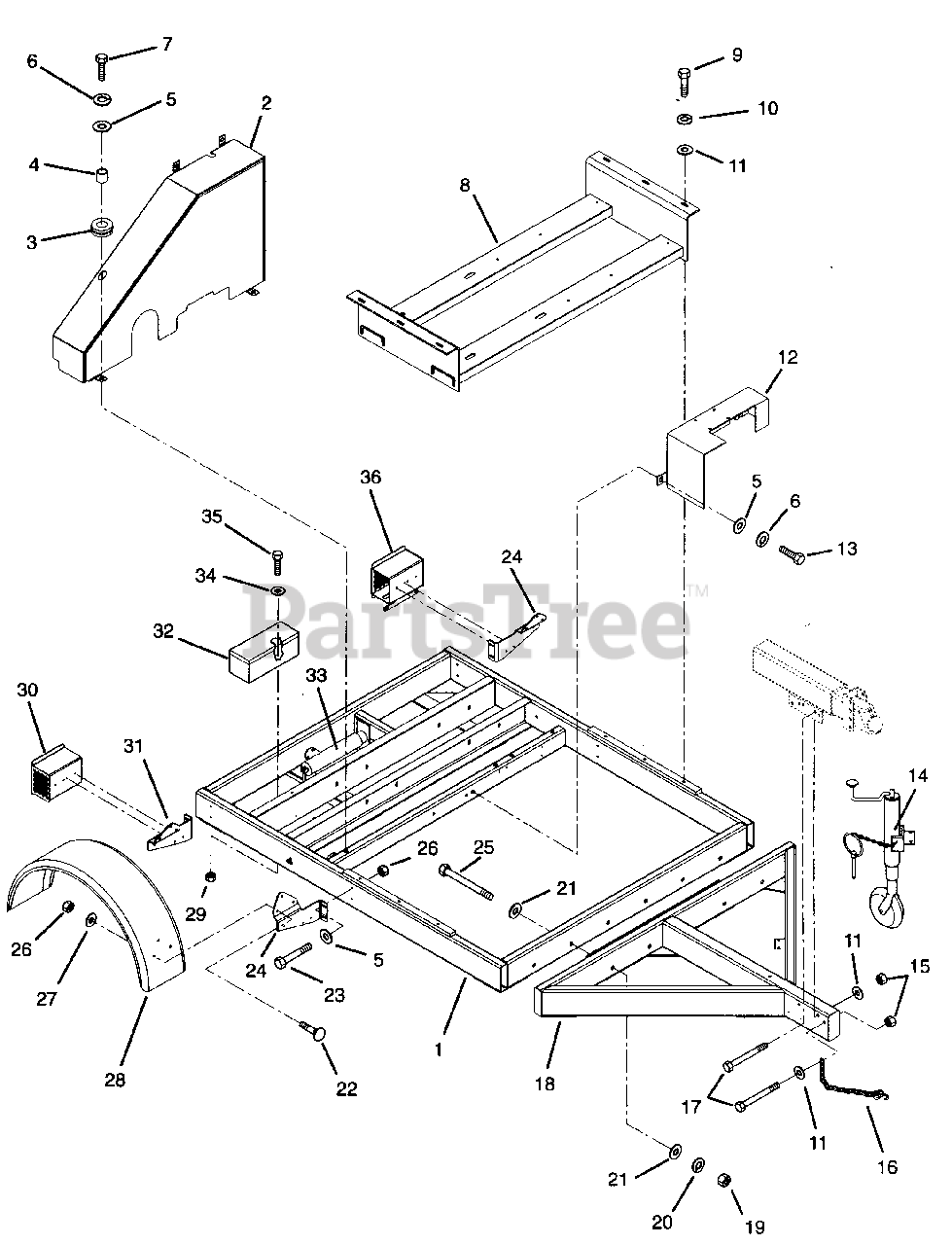

993016 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 80hp Perkins Diesel (SN: 000101 & Above) FRAME Parts Diagram

Pro-Chip Chipper, 80hp Perkins Diesel

FRAME Parts Diagram

  • Title

1

Gravely 09315600

Frame, Weldment

$

$

Not available

2

Gravely 09327300

Weldment- Belt- Guard

$

$

Not available

3

Gravely 07506400

Grommet .188 x .500

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 09326700

Bushing

$

$

Not available

5

Gravely 06400200

Washer - Flat - Steel .38 x .875 x .083
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 131099

Washer - Lock .375 x 155
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

7

Gravely 05900400

Bolt - Hex .38-16 x 100
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09315400

Engine Base Weldment

$

$

Not available

9

Gravely 180175

Bolt - Hex .50 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

10

Gravely 120384

Washer - Lock .50 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

11

Gravely 06412000

Washer - Flat - Steel .563 x 1.375 x .109
(Superseded to 06442000)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 09322000

Hydraulic Component Cover Weldment

$

$

Not available

13

Gravely 180120

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09318300

Jack/Wheel
(Superseded to 09332400)

$

$

Not available

15

Gravely 06512700

Nut - Locking - Crown .50-13
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

16

Gravely 09319500

Safety Chain

$

$

Not available

17

Gravely 05953200

Bolt-Hex .50-13 x 5.00 Grade 8
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 09315800

Drawbar Weldment

$

$

Not available

19

Gravely 06514000

Nut .75-10

$

$

Not available

20

Gravely 06300800

Washer - Lock .750 x .188
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06424600

Washer - Flat - Steel .313

$

$

Not available

22

Gravely 126390

Bolt - Round Head Square Neck .31-18 x 1.0
(Superseded to 06215800)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 05913600

Bolt - Hex .31-18 x 3.00 Grade 2
(Superseded to 05962500)

$3.99

$

In Stock, only 4 left!

0

24

Gravely 09318100

Fender Bracket - Left Hand

$

$

Not available

25

Gravely 429887

Bolt - Hex .75-10 x 5.50
(Superseded to 05964300)

$7.99

$

Usually ships in 4-12 days

0

26

Gravely 413447

Nut - Locking .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06421500

Washer - Flat - Steel .38 x 1.50 x 1.25
(Superseded to 06443400)

$3.49

$

In Stock, Qty 9

0

28

Gravely 09317400

Fender
(Superseded to 09317450)

$

$

Not available

29

Gravely 06503200

Nut .250-20
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

30

Gravely 09322100

Tail Light Bracket Weldment

$

$

Not available

31

Gravely 09318000

Fender Bracket Right Hand

$

$

Not available

32

Gravely 09319400

Tool Box

$

$

Not available

33

Gravely 09320400

Jack

$

$

Not available

34

Gravely 120386

Washer - Flat - Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 180020

Bolt - Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 09322300

Left Hand Tail Light Bracket Weldment

$

$

Not available
