993016 (Pro-Chip 495) - Gravely Pro-Chip Chipper, 80hp Perkins Diesel (SN: 000101 & Above) ENGINE Parts Diagram

Pro-Chip Chipper, 80hp Perkins Diesel

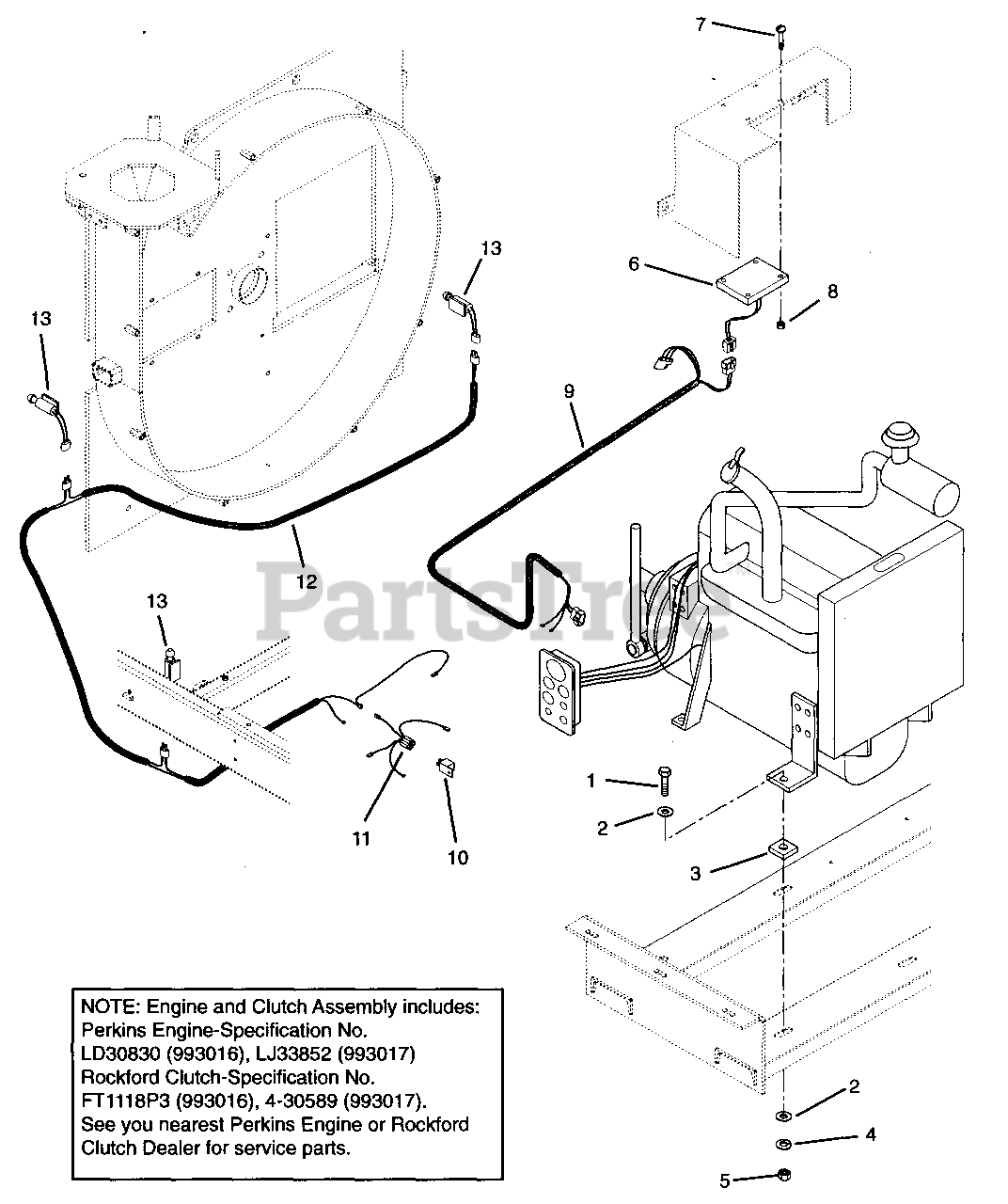

ENGINE Parts Diagram

  • Title

1

Gravely 05953400

Bolt - Hex .50-13 x 2.00
(Superseded to 05961700)

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 131000

Washer-Flat-Steel .813 x 2.000 x .148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

3

Gravely 09325000

Engine Base Spacer

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 06300800

Washer-Lock .750 x .188
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06514000

Nut .75-10

$

$

Not available

6

Gravely 09320100

Module-Load Control
(Superseded to 09338800)

$

$

Not available

7

Gravely 06116100

Screw-Machine 10-24 x 1.75 Slotted Pan Head

$

$

Not available

8

Gravely 06505100

Nut-Keps 10-24
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

9

Gravely 09323600

Wire Harness-Autofeed

$

$

Not available

10

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

11

Gravely 04139900

Jumper Connection

$

$

Not available

12

Gravely 09323700

Wire Harness-Safety Switch
(Superseded to 09350500)

$

$

Not available

13

Gravely 09323800

Safety Switch

$

$

Not available
