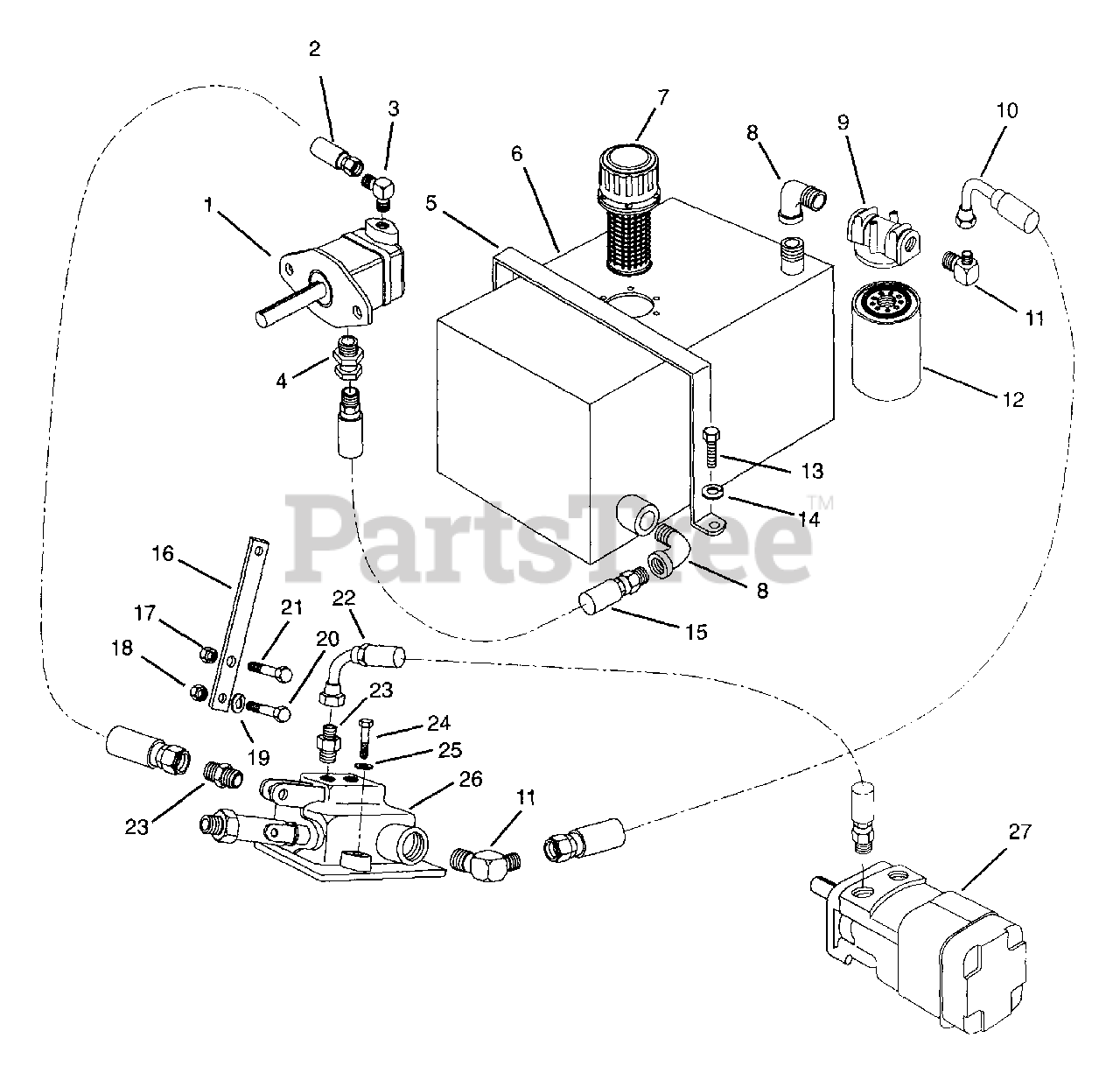

993013 (Pro-Chip 350) - Gravely Pro-Chip Chipper, 25hp Kohler Command (SN: 000101 & Above) HYDRAULICS (PART 1) Parts Diagram

Pro-Chip Chipper, 25hp Kohler Command

HYDRAULICS (PART 1) Parts Diagram

  • Title

1

Gravely 09309400

Hydraulic Pump

$

$

Not available

2

Gravely 04111200

Hydraulic Hose
(Superseded to 09336700)

$48.99

$

Usually ships in 4-12 days

0

3

Gravely 07018200

Adapter-Pipe .75-16 "O" Ring

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 07028900

Hydraulic Swivel Fitting

$

$

Not available

5

Gravely 04110153

Tank Strap
(Superseded to 04110151)

$

$

Not available

6

Gravely 04109953

Hydraulic Oil Tank
(Superseded to 04109950)

$

$

Not available

7

Gravely 04105800

Filler Cap Assembly

$

$

Not available

8

Gravely 04108300

Street Elbow-90 Degree-Galvanized 3/4 In.

$

$

Not available

9

Gravely 04108000

Filter

$

$

Not available

10

Gravely 04111300

Hydraulic Hose

$

$

Not available

11

Gravely 04110500

Hydraulic Fitting

$

$

Not available

12

Gravely 04108100

Replacement Element

$50.99

$

Usually ships in 4-12 days

0

13

Gravely 05959400

Bolt-Hex .38-16 x .75-Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 04111900

Hydraulic Hose w/ Straight Swivel Fitting

$

$

Not available

16

Gravely 04105251

Bar

$

$

Not available

17

Gravely 06507000

Nut-Locking-Top .25-20
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06509900

Nut-Hex Jam .25-20
(Superseded to 06500908)

$0.99

$

Usually ships in 4-12 days

0

19

Gravely 06300200

Washer-Lock .25 x .077
(Superseded to 06308000)

$

$

Not available

20

Gravely 05908300

Bolt-Hex .25-20 x 1.00-Grade 5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

21

Gravely 05905000

Bolt-Hex .25-20 x 1.50-Grade 5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 04111500

Hydraulic Hose

$

$

Not available

23

Gravely 04111800

Hydraulic Fitting

$

$

Not available

24

Gravely 05927500

Bolt-Hex .38-16 x 1.25-Grade 8
(Superseded to 05965900)

$

$

Not available

25

Gravely 06302100

Washer-Lock .38 x .094
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 04107900

Hydraulic Valve

$

$

Not available

27

Gravely 04108953

Hydraulic Motor

$

$

Not available
