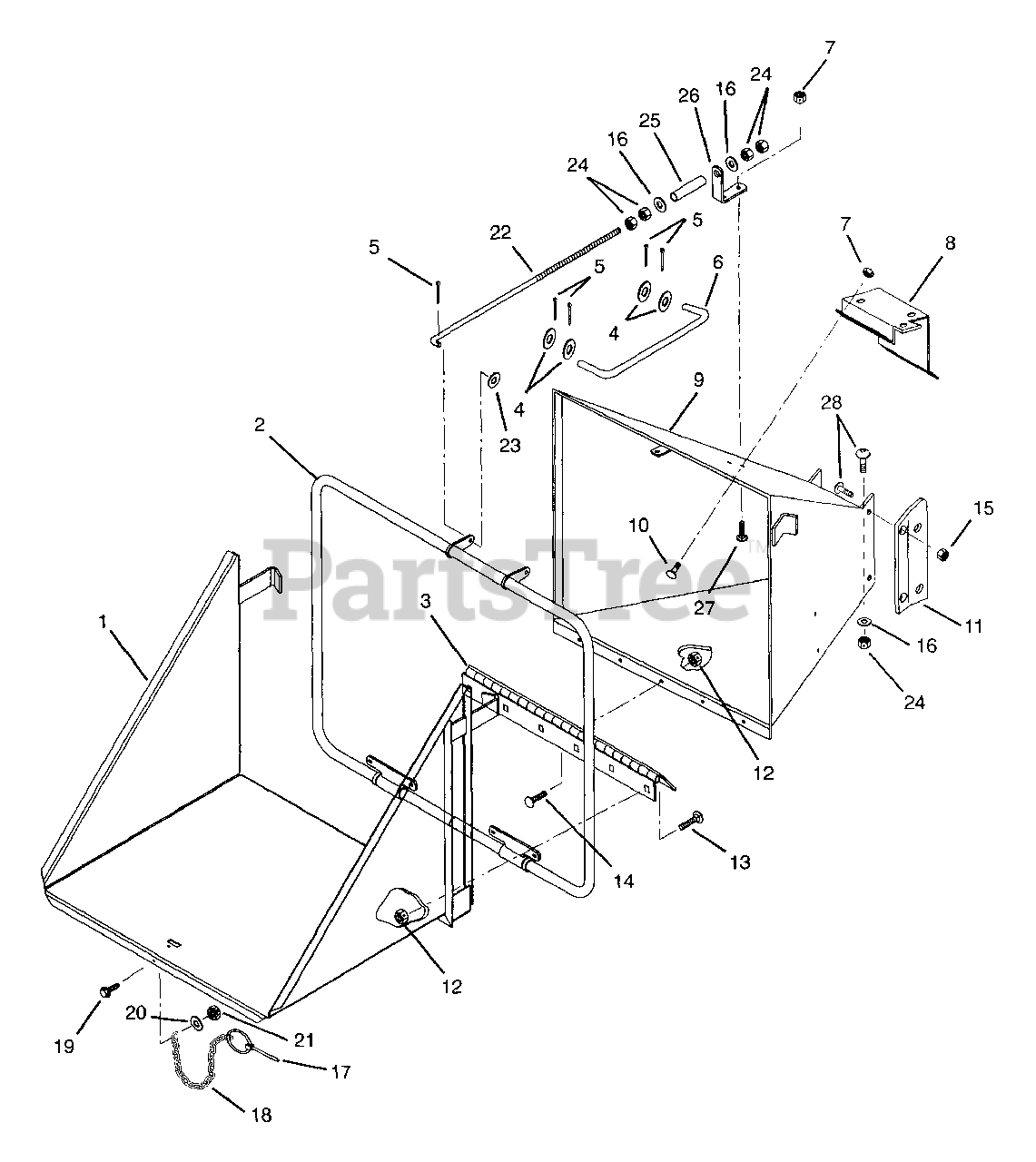

993013 (Pro-Chip 350) - Gravely Pro-Chip Chipper, 25hp Kohler Command (SN: 000101 & Above) HOPPER Parts Diagram

Pro-Chip Chipper, 25hp Kohler Command

HOPPER Parts Diagram

  • Title

1

Gravely 09310400

Apron Weldment

$

$

Not available

2

Gravely 09340500

Loop Weldment

$

$

Not available

3

Gravely 09310800

Hinge

$

$

Not available

4

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06707300

Pin-Cotter .12 X .75

$0.99

$

In Stock, Qty 5

0

6

Gravely 09311000

Rod

$

$

Not available

7

Gravely 06528800

Nut-Locking .312-18
(Superseded to 06500925)

$

$

Not available

8

Gravely 09309751

Valve Mount

$

$

Not available

9

Gravely 09310553

Hopper

$

$

Not available

10

Gravely 06216100

Bolt-Round Head-Square Neck-.312-18 x 1.00 Gr 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09310653

Left Hand Support

$

$

Not available

11

Gravely 09310753

Right Hand Support

$

$

Not available

12

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

15

Gravely 06529600

Nut - Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07015800

Pin-Lock .31 x 2.00

$6.99

$

In Stock, only 2 left!

0

18

Gravely 09335200

Chain-5 Straight Link #4

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 06116900

Screw-Machine 10-24 x .75 w/ Insert
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

20

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

21

Gravely 06553000

Nut-Lock-10-24 w/ Insert
(Superseded to 06517600)

Note: (Models 993007, 013, 022)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09338300

Rod-Valve Stop

Note: (Models 993007, 013, 022)

$

$

Not available

23

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06931900

Tubing-Urethane .438 x .688

$

$

Not available

26

Gravely 09337700

Bracket-Valve Stop

$

$

Not available

27

Gravely 06215700

Bolt-Round Head-Square Neck .312-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 05924900

Screw, Socket-Button Head .38-16 x 1.00

$

$

Not available
