993009 (Pro-Chip 395) - Gravely Pro-Chip Chipper, 40.5hp Yanmar Diesel (SN: 000101 & Above) TRAILER Parts Diagram

Pro-Chip Chipper, 40.5hp Yanmar Diesel

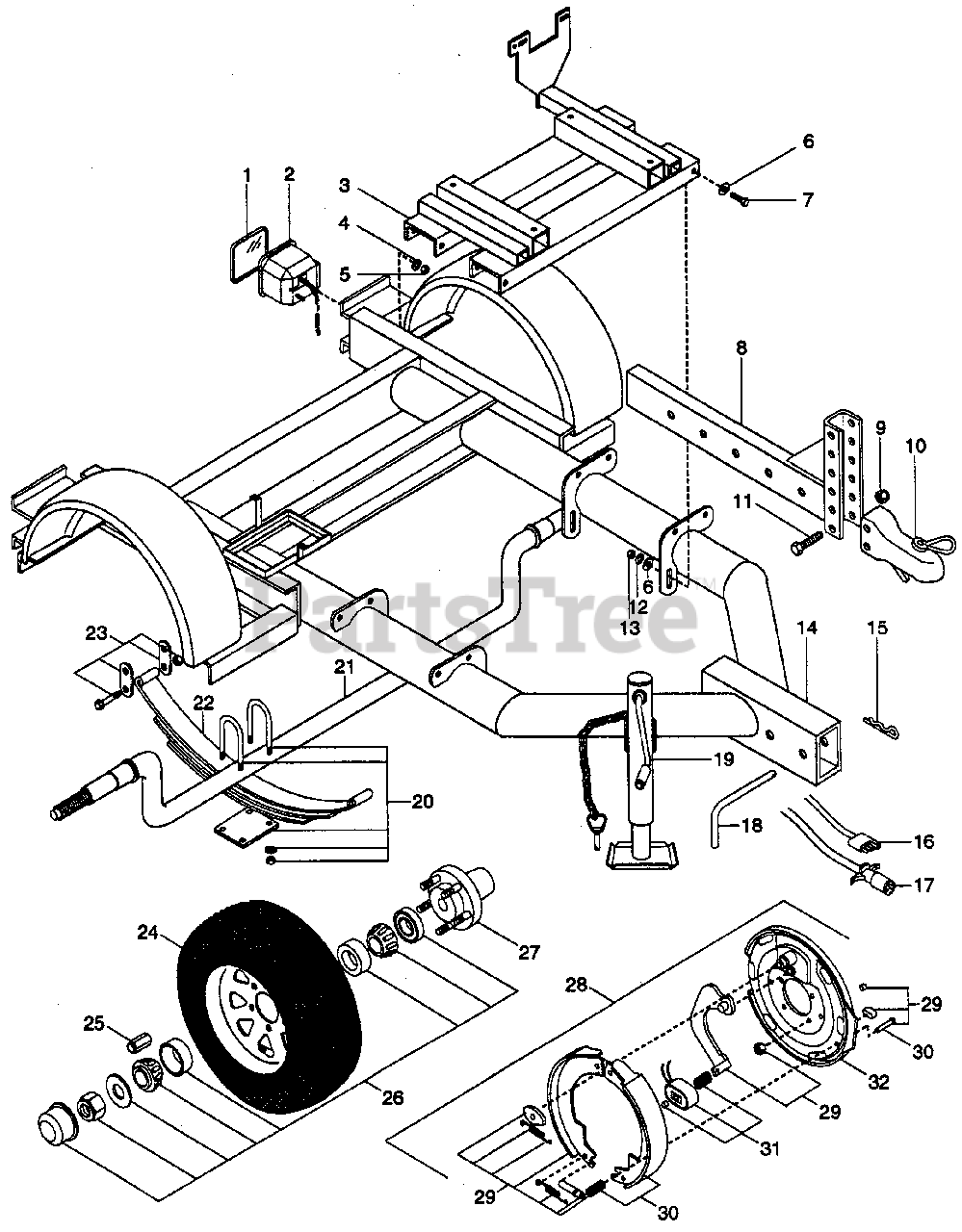

TRAILER Parts Diagram

  • Title

1

Gravely 04126100

Electric Axle 395
(Superseded to 09330900)

$

$

Not available

2

Gravely 04116300

P-Tail Light LH

$

$

Not available

Gravely 04116400

P-Tail Light RH

$

$

Not available

3

Gravely 04136300

Engine Crossbrace Weld-Diesel

$

$

Not available

4

Gravely 06301700

Wshr-Lock Ext. 250 ID

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 06503200

Nut .250-20 Pl
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

6

Gravely 06412000

Wshr-Fl-Stl .563 x 1.37 x .109 Pl
(Superseded to 06442000)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 05923500

Blt-Hex .50-13 x 2.00 Pl Gr 5
(Superseded to 05901929)

$

$

Not available

8

Gravely 04123500

Tongue Weldment
(Superseded to 04123551)

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 06506900

Nut-Lk-Ctr .625-11 Pl
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 04124700

Hitch-Ring
(Superseded to 04124751)

$

$

Not available

11

Gravely 05929000

Blt-Hex .62-11 x 4.25 Pl Gr 5
(Superseded to 05962400)

$

$

Not available

12

Gravely 06300600

Wshr-Lock .625 x .156 Med Pl
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

13

Gravely 06502100

Nut .50-13 Pl
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 04120700

Traillor Frame Weldment

$

$

Not available

15

Gravely 06703800

Pin-Hair lnt .17 x .68 x 3.50 Pl
(Superseded to 06713300)

$2.99

$

In Stock, only 1 left!

0

16

Gravely 04117200

P-Wire Harness

$

$

Not available

17

Gravely 04153000

Plug Connector-Trailor

$

$

Not available

18

Gravely 04125100

Hitch Pin

$

$

Not available

19

Gravely 04124600

Jack

$

$

Not available

20

Gravely 59301000

U-Bolt Kit 3500# Axle STD

$

$

Not available

21

Gravely 04123400

Rear Axle W/A/P
(Superseded to 09330800)

$1314.99

$

Usually ships in 4-12 days

0

22

Gravely 09306200

Spring 3500# Axle STD

$

$

Not available

23

Gravely 59300900

Hardware Kit 3500# Axle STD

$

$

Not available

24

Gravely 07126300

T/Whl Assy

$

$

Not available

25

Gravely 59300800

Lug Nut Kit 3500# Axle STD

$

$

Not available

26

Gravely 59300700

Bearing Kit 3500# Axle STD

$

$

Not available

27

Gravely 09306100

Hub 3500# Axle STD

$

$

Not available

Gravely 09306300

Hub/Drum Kit 3500# Electric Axle(Not Shown)

Note: (Not Shown)

$

$

Not available

28

Gravely 59301100

LH Assy Complete 3500# Electric Axle

$

$

Not available

Gravely 59301200

RH Assy Complete 3500# Electric Axle

$

$

Not available

29

Gravely 59301300

LH Rebuild Kit 3500# Electric Axle

$

$

Not available

Gravely 59301400

RH Rebuild Kit 3500# Electric Axle

$

$

Not available

30

Gravely 59301500

Lining Kit 3500# Electric Axle

$

$

Not available

31

Gravely 59301600

Magnet Kit 3500# Electric Axle

$

$

Not available

32

Gravely 09306400

Backing Plate Kit 3500# Electric Axle

$

$

Not available
