993007 (Pro-Chip 310) - Gravely Pro-Chip Chipper, 25hp Kohler Command (SN: 000101 & Above) TRAILER Parts Diagram

Pro-Chip Chipper, 25hp Kohler Command

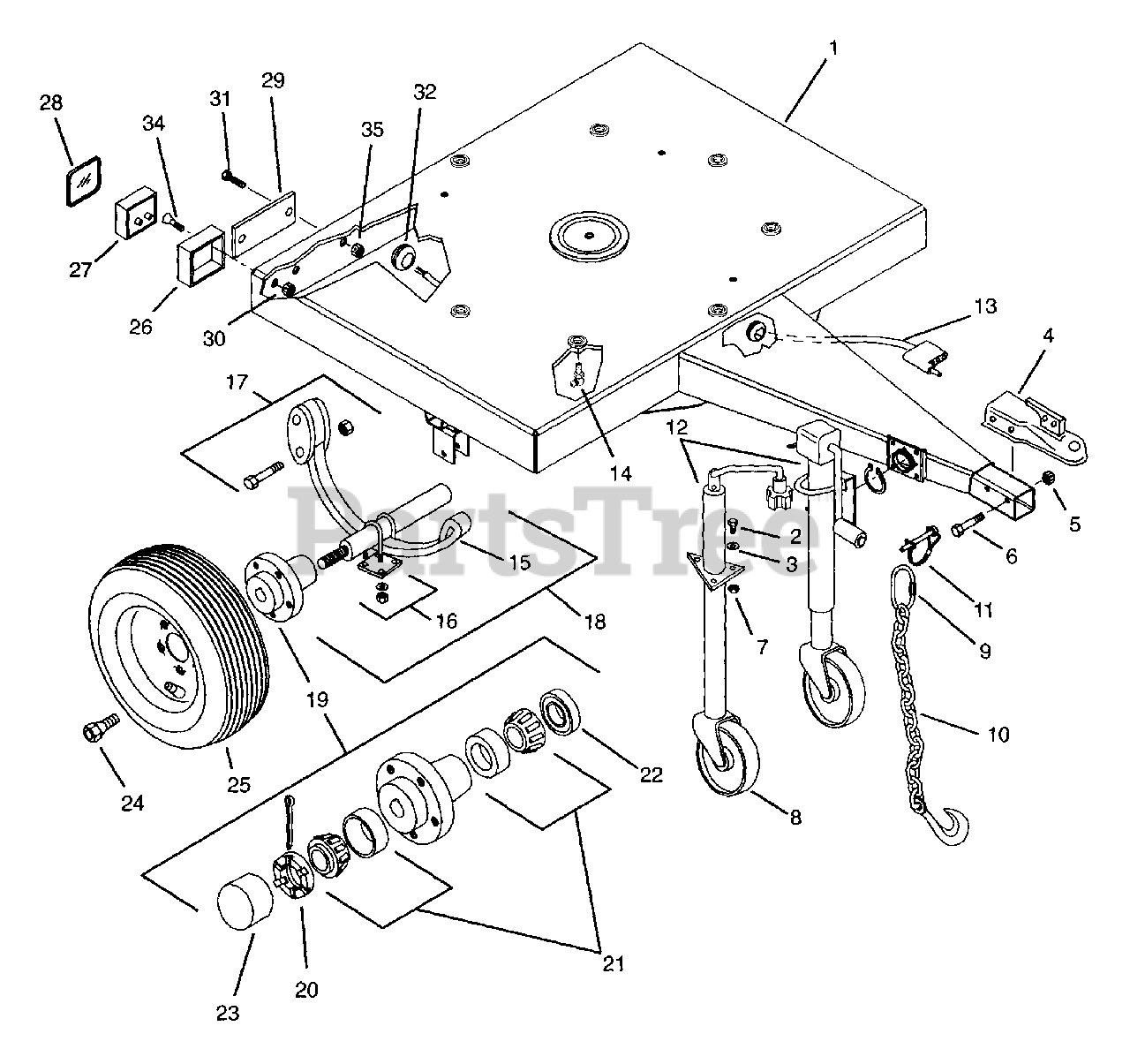

TRAILER Parts Diagram

  • Title

1

Gravely 04106453

Trailer 310

Note: (Includes Items 20, 23 & 24). (Models 941003, 993003, 007)

$

$

Not available

1

Gravely 04134853

Trailer 350
(Superseded to 09341900)

Note: (Includes Items 20 & 23). (Models 993012, 013)

$1675.99

$

Usually ships in 4-12 days

0

2

Gravely 05924400

Bolt-Hex .44-14 x 1.25-Grade 5
(Superseded to 05964800)

Note: (Models 941003, 993003, 007)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 06400800

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06435900)

Note: (Models 941003, 993003, 007)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09300100

Coupler 2" Ball Type

$

$

Not available

5

Gravely 06536300

Nut-Locking Crown .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 05961900

Bolt-Hex .50-13 x 3.75
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06508200

Nut-Locking-Crown .437-14

Note: (Models 941003, 993003, 007)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 09301900

Swivel Wheel

Note: (Models 941003, 993003, 007)

$

$

Not available

9

Gravely 09300300

Quick Link 5/16

$

$

Not available

10

Gravely 09300200

Safety Chain

$

$

Not available

11

Gravely 09302000

Quick Latch Pin Jack Wheel

Note: (Models 941003, 993003,007)

$

$

Not available

12

09391700

Jack Assembly

Note: (Models 941003, 993003, 007)

$

$

Not available

12

Gravely 04201300

Jack Assembly

Note: (Models 993012, 013)

$

$

Not available

13

Gravely 04117200

Wire Harness

Note: (Models 993012, 013)

$

$

Not available

13

Gravely 04117300

Wire Harness

Note: (Models 941003, 993003, 007)

$

$

Not available

14

Gravely 07029700

Hydraulic Drive Fitting

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 09301100

Axle Spring

$

$

Not available

16

59399400

U-Bolt, Kit, Dexter Axle 2000#

$

$

Not available

17

59399300

Hardware

$

$

Not available

18

Gravely 09300900

Axle, Complete-Less Tire & Wheel
(Superseded to 09353300)

Note: (Contains Items 15, 16, 17, & 19). (Models 941003, 993003, 007)

$392.99

$

Usually ships in 4-12 days

0

18

Gravely 04134200

Axle, Complete-Less Tire & Wheel
(Superseded to 09353400)

Note: (Contains Items 15, 16, 17, & 19). (Models 941012, 013)

$

$

Not available

19

Gravely 09301000

Axle Hub

Note: (Contains Items 20, 21, 22, & 23)

$

$

Not available

20

Gravely 06513100

Nut Slotted 1.0-14

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 05417300

Kit, Bearing

Note: (Contains Items 22 & 23)

$

$

Not available

22

Seal

Seal

$

$

Not available

23

Grease Cap

Grease Cap

$

$

Not available

24

Gravely 07014600

Lug .50-20 x .75 x 1.62 Plated
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

25

Gravely 07119900

Tire/Wheel Assembly

Note: (Models 941003, 0993003, 007)

$

$

Not available

25

Gravely 04134000

Tire and Wheel Assembly

Note: (Models 993012, 013)

$

$

Not available

26

Gravely 04116500

Left Taillight Weldment

Note: (Models 993012, 013)

$

$

Not available

26

Gravely 04116600

Right Taillight Weldment

Note: (Models 993012, 013)

$

$

Not available

27

Gravely 04116300

Taillight, Left Hand

Note: (Includes Item 28). (Models 993012, 013)

$

$

Not available

27

Gravely 04116400

Taillight, Right Hand

Note: (Includes Item 28). (Models 993012, 013)

$

$

Not available

28

Gravely 09310000

Lens, Tail Light

Note: (Models 993012, 013)

$

$

Not available

29

Gravely 07536500

Reflector

$22.99

$

Usually ships in 4-12 days

0

30

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06116900

Screw-Machine 10-24 x 1.00 HWH
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

32

Gravely 07504400

Grommet .188 x 1.38

$

$

Not available

33

Gravely 07530600

Grommet .75 x 1.06 x 1.38

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 06118900

Screw-Machine-Flat .25 x .75

Note: (Models 993012, 013)

$

$

Not available

35

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
