993007 (Pro-Chip 310) - Gravely Pro-Chip Chipper, 25hp Kohler Command (SN: 000101 & Above) ROTATING BASE Parts Diagram

Pro-Chip Chipper, 25hp Kohler Command

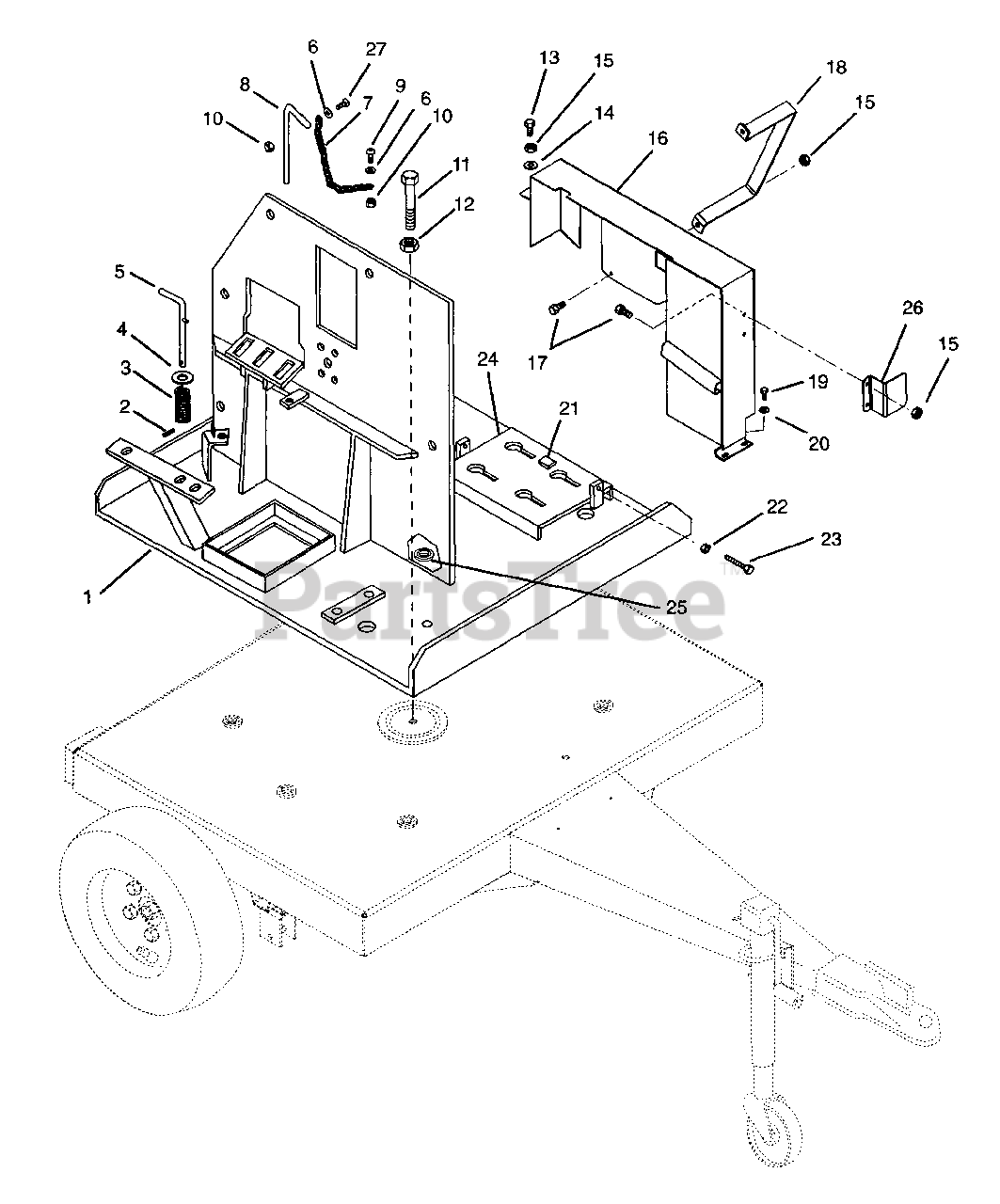

ROTATING BASE Parts Diagram

  • Title

1

Gravely 09313100

Rotating Base Plate

$

$

Not available

2

Gravely 05803000

Pin-Roll .188 x 1.50

$0.99

$

In Stock, Qty 20+

0

3

Gravely 08324100

Spring, Compression .080 x .91 x 3.38

$

$

Not available

4

Gravely 06442800

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 04106200

Pin Index

$

$

Not available

6

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

7

Gravely 09335400

Chain-14 Straight Link 44

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 09335300

Lock Handle

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 06116900

Screw-Machine 10-24 x 1.00 HWH
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

10

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05966900

Bolt-Hex .75-16 x 2.50-Grade 5

$

$

Not available

12

Gravely 06535400

Nut-Locking-Center .75-10

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 05946900

Bolt-Hex .31 x .875 x .083
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09342300

Guard Weldment

$

$

Not available

17

Gravely 05947200

Bolt-Hex .31-18 x .50-Grade 5
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

18

Gravely 09331200

Guard-Muffler

Note: (Not on model 022)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 05959400

Bolt-Hex .38-16 x 1.00
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06308800

Washer-Lock .375 x .155
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06605400

Key

$

$

Not available

22

Gravely 06529400

Nut-Hex .38-18
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05967800

Bolt-Hex .38-16 x 3.50

$

$

Not available

24

Gravely 04109351

Engine Adjuster

Note: (Models 941003, 993003, 012)

$

$

Not available

24

Gravely 09306000

Engine Adjuster

Note: (Models 993007, 993013)

$

$

Not available

25

Gravely 07506500

Grommet .125 x 1.00 ID

$3.49

$

In Stock, only 1 left!

0

26

Gravely 09331100

Guard-Manifold

Note: (Not on model 022)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 06118500

Screw-Machine 10-24 x 1.00
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0
