993007 (Pro-Chip 310) - Gravely Pro-Chip Chipper, 25hp Kohler Command (SN: 000101 & Above) HYDRAULICS (PART 2) Parts Diagram

Pro-Chip Chipper, 25hp Kohler Command

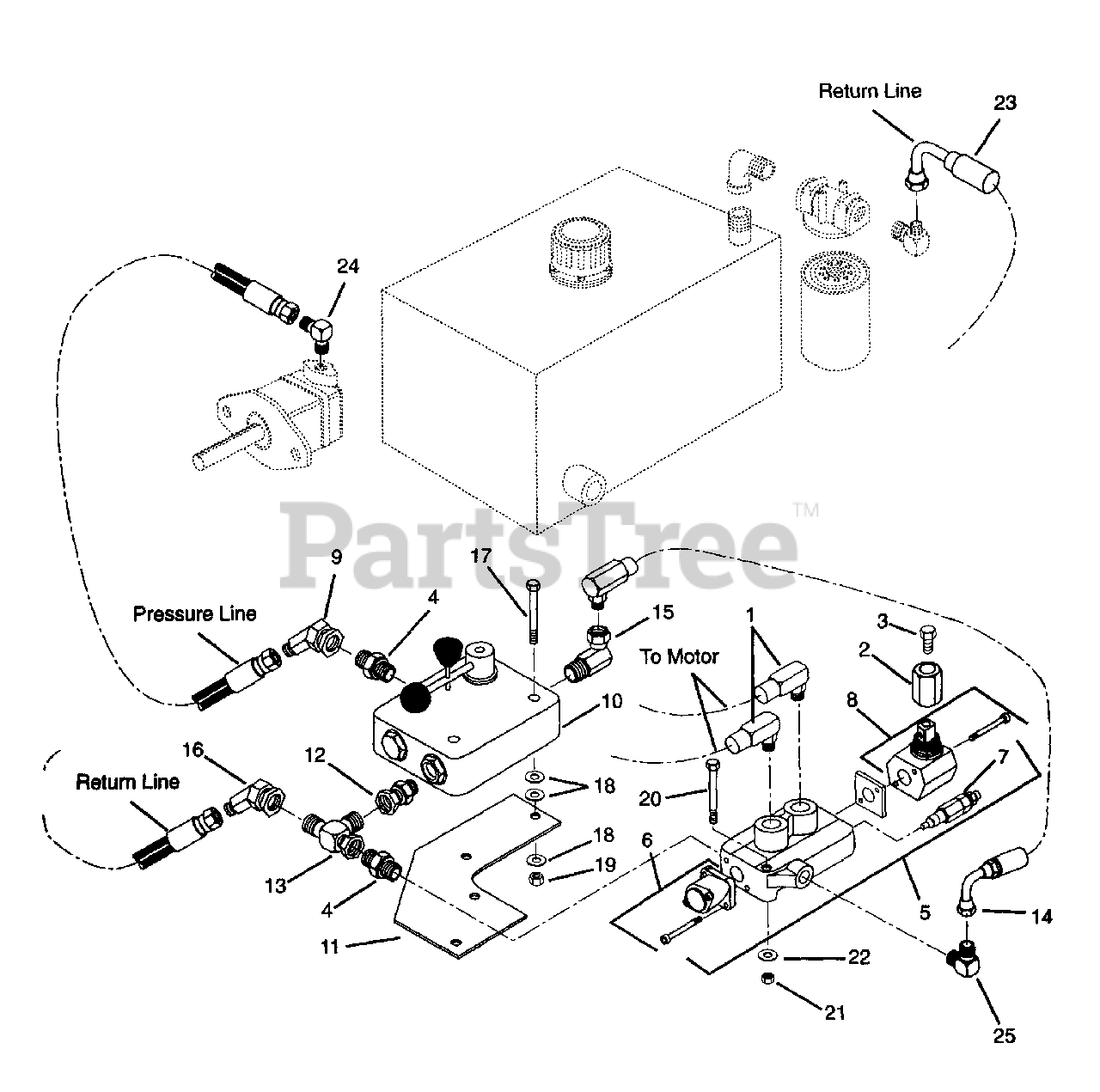

HYDRAULICS (PART 2) Parts Diagram

  • Title

1

Gravely 09311200

Hydraulic Hose

$

$

Not available

2

Gravely 09311600

Hex Adapter

$

$

Not available

3

Gravely 05932500

Screw M8 x 1.25 x 20MM

$

$

Not available

4

Gravely 07020400

Adapter, Hydraulic Steel 3/4 inch "O" Ring to 3/4 NPT

$

$

Not available

5

Gravely 09308800

Valve, Hydraulic

Note: (Includes items 6 through 8)

$

$

Not available

6

Gravely 09333900

Detent Assembly-Hydraulic Control Valve

$

$

Not available

7

Gravely 09334000

Relief Valve

$

$

Not available

8

Gravely 09334100

Lever Assembly

$

$

Not available

9

Gravely 07026000

45 Degree NPTF Elbow

$

$

Not available

10

Gravely 04126200

Flow Control Valve-Hydraulic

$

$

Not available

11

Gravely 09312300

Bracket-Manual Feed

$

$

Not available

12

Gravely 07029200

Straight Swivel Fitting

$

$

Not available

13

Gravely 04128200

Swivel Tee

$

$

Not available

14

Gravely 04128600

Hose - 3500 psi Hydraulic .50 x 17.88

$

$

Not available

15

Gravely 04128100

90 Degree Swivel Adapter

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 07025900

Swivel Elbow - 45 Degree

$

$

Not available

17

Gravely 05916300

Bolt-Hex .31-18 x 2.50-Grade 5
(Superseded to 05952600)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06400700

Washer-Flat-Steel .31 x .734 x .065
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06504000

Nut-Locking-Center .31-18
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05961600

Bolt-Hex .25-20 x 2.50-Grade 5

$2.49

$

In Stock, only 1 left!

0

21

Gravely 06529700

Nut-Lock-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .049
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 04111300

Hydraulic Hose

$

$

Not available

24

Gravely 07018200

Adapter-Hydraulic Elbow 3/4 Inch "O" Ring to 3/4 NPT

$6.99

$

Usually ships in 4-12 days

0

25

Gravely 04110500

Fitting, Hydraulic

$

$

Not available
