993007 (Pro-Chip 310) - Gravely Pro-Chip Chipper, 25hp Kohler Command (SN: 000101 & Above) ENGINE Parts Diagram

Pro-Chip Chipper, 25hp Kohler Command

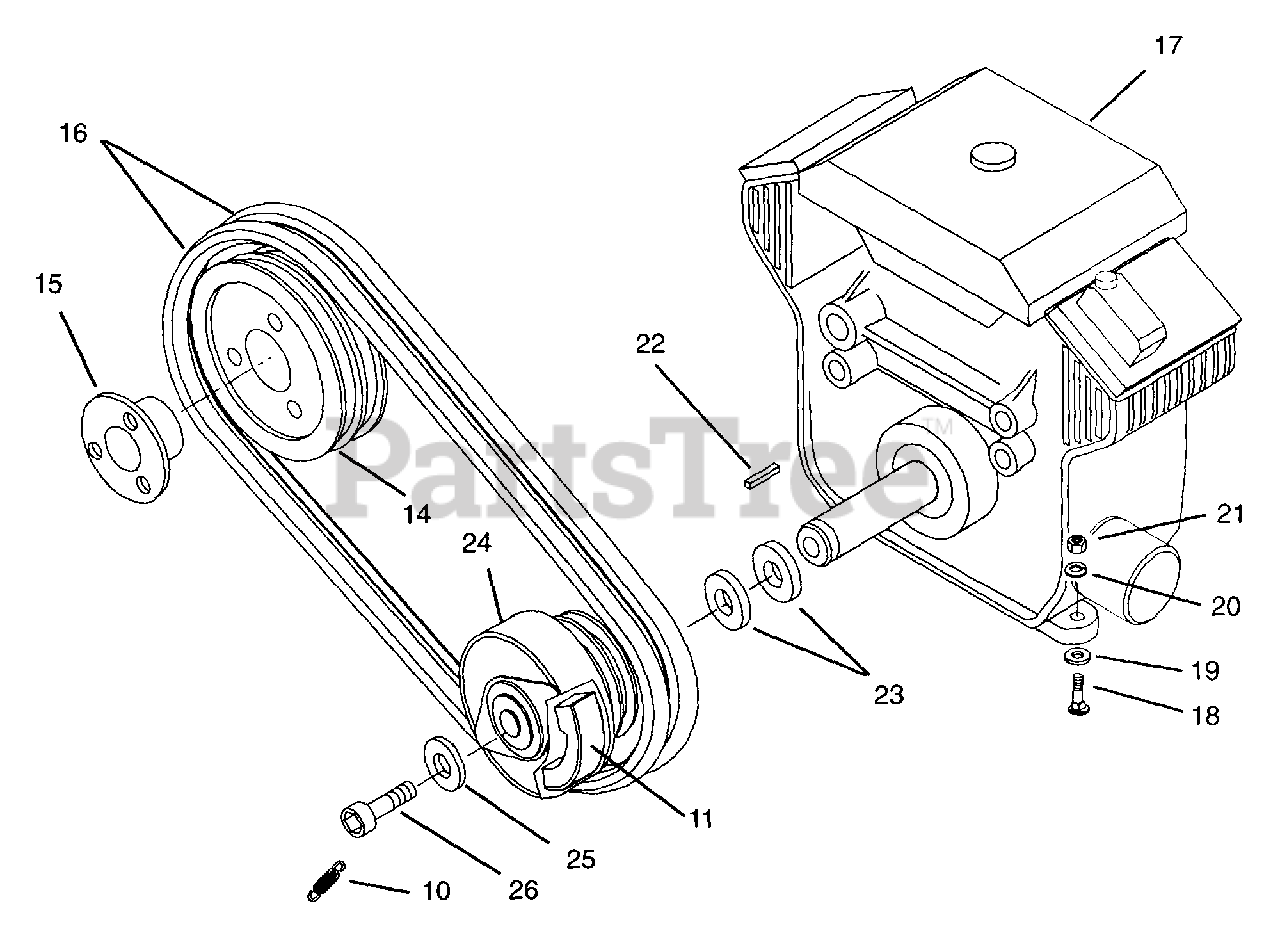

ENGINE Parts Diagram

  • Title

10

Gravely 09312100

Spring-Clutch

$

$

Not available

11

Gravely 09312000

Shoe-Clutch

$

$

Not available

14

Gravely 07313700

Pulley

$

$

Not available

15

Gravely 09304500

Bushing SK x 1.50

$43.99

$

Usually ships in 4-12 days

0

16

Gravely 07215300

V-Belt-Set of 2

$68.99

$

Usually ships in 4-12 days

0

17

Gravely 08240800

25 H.P. Kohler Command PS-68548

Note: (Models 993007, 013)

$

$

Not available

18

Gravely 06220500

Bolt-Round Head-Square Neck .38-16 x 2.00
(Superseded to 06224300)

$3.99

$

In Stock, only 3 left!

0

19

Gravely 06435900

Washer-Flat Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06529400

Nut-Hex .38-16-Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06602600

Key-Square .25 x .25 x 2.50

$5.99

$

In Stock, only 3 left!

0

23

Gravely 09313600

Shim

Note: (Models 993007, 013)

$

$

Not available

24

Gravely 09308100

Clutch-1.25 Bore

Note: (Models 993007, 013)

$

$

Not available

25

Gravely 09313700

Washer 25 H.P.
(Superseded to 06401111)

Note: (Models 993007, 013)

$6.99

$

In Stock, only 2 left!

0

26

Gravely 05949000

Screw-Socket Head .43-20 x 1.50

Note: (Models 993007, 013)

$

$

Not available
