993003 (Pro-Chip 310) - Gravely Pro-Chip Chipper, 23hp Kohler (SN: 000101 & Above) ENGINE Parts Diagram

Pro-Chip Chipper, 23hp Kohler

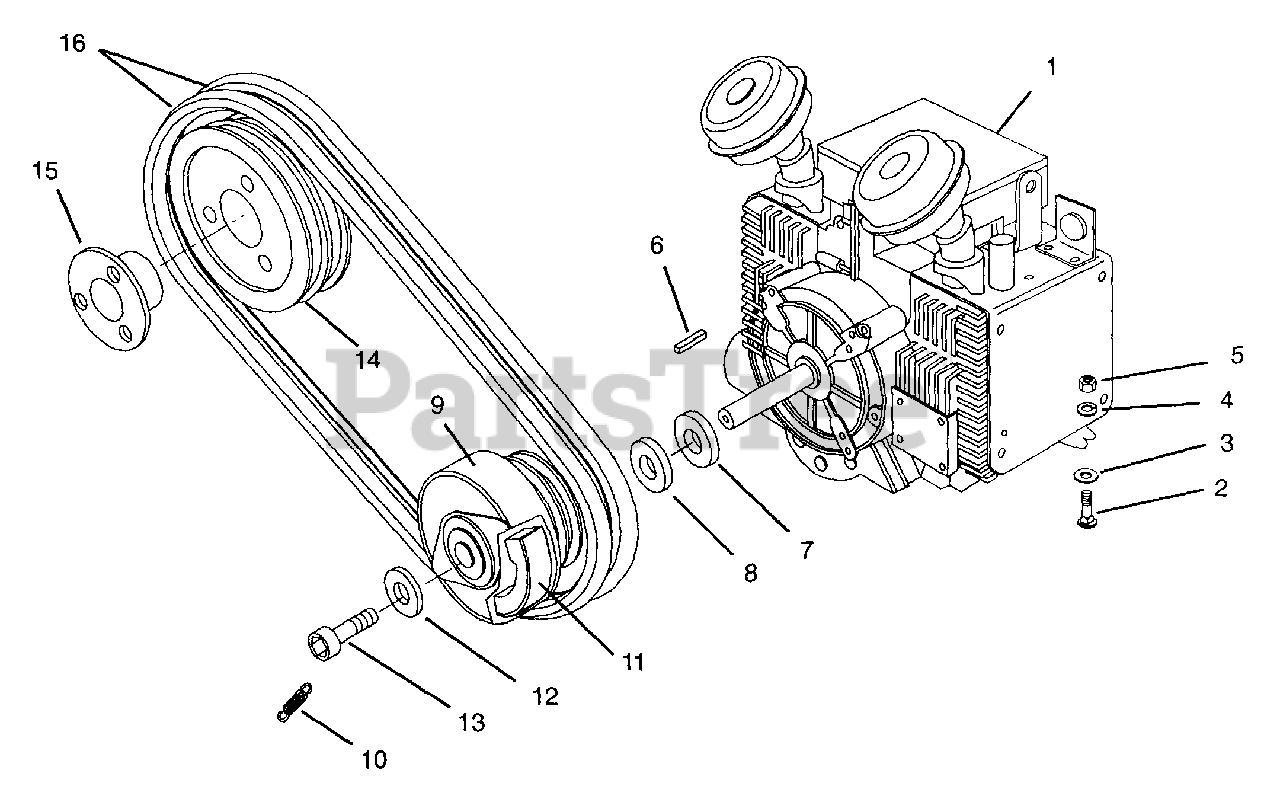

ENGINE Parts Diagram

  • Title

1

Gravely 08231100

23 H.P. Kohler Engine

Note: (Models 941003, 993003, 012)

$

$

Not available

2

Gravely 06209700

Bolt-Round Head Square Neck .50-13 x 1.50-Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

3

Gravely 06401700

Washer-Flat-Steel .755 x 1.375 x .093
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

4

Gravely 06300600

Washer-Lock .50 x .151
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

5

Gravely 06502100

Nut .50-13
(Superseded to 06537300)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 06605400

Key-Straight .38 x .38 x 2.75

$

$

Not available

7

Gravely 04107400

Spacer-Centrifugal Clutch

$

$

Not available

8

Gravely 04135900

Bushing-Narrow Rim 14 GA 1.50 x 2.25

$

$

Not available

9

Gravely 09307200

Noram Clutch 1.125 Bore

Note: (Models 993003, 012)

$

$

Not available

10

Gravely 09312100

Spring-Clutch

$

$

Not available

11

Gravely 09312000

Shoe-Clutch

$

$

Not available

12

Gravely 06435200

Washer-Flat .640 x 1.81 x 2.50
(Superseded to 06400829)

Note: (Models 993003, 012, 022)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 07009100

Screw-Socket Head SPL .62-18 x 1.75

Note: ((Models 993003, 012, 022)

$

$

Not available

14

Gravely 07313700

Pulley

$

$

Not available

15

Gravely 09304500

Bushing SK x 1.50

$43.99

$

Usually ships in 4-12 days

0

16

Gravely 07215300

V-Belt-Set of 2

$68.99

$

Usually ships in 4-12 days

0
