993003 (Pro-Chip 310) - Gravely Pro-Chip Chipper, 23hp Kohler (SN: 000101 & Above) BATTERY & FUEL Parts Diagram

Pro-Chip Chipper, 23hp Kohler

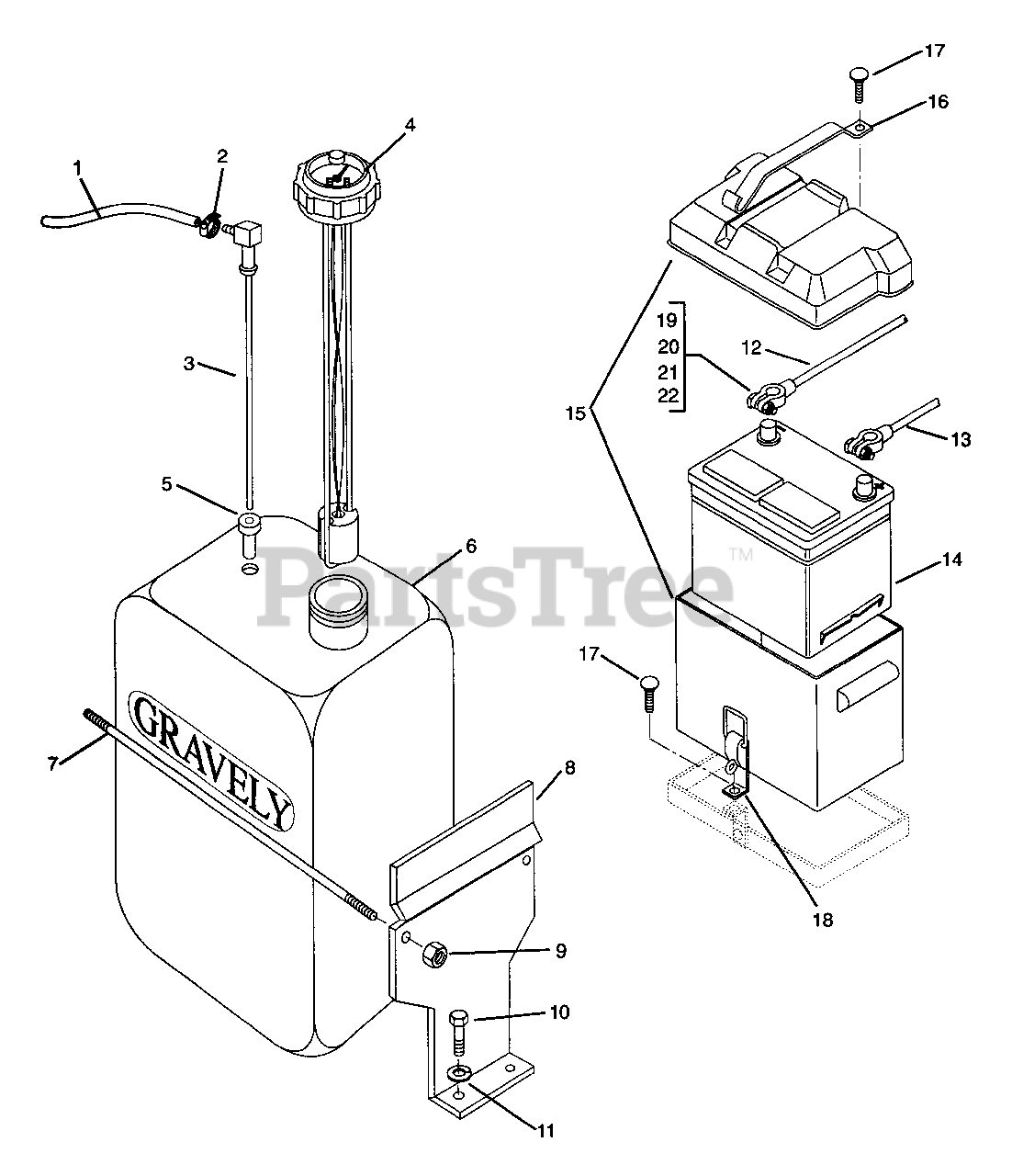

BATTERY & FUEL Parts Diagram

  • Title

1

Gravely 00924300

Gas Line - Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 08983100

Fitting, Tank

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 08983200

Gauge, Fuel

$47.99

$

Usually ships in 4-12 days

0

5

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

6

Gravely 08983000

Tank, Fuel

$

$

Not available

7

Gravely 09037800

Rod, Tank

$29.99

$

Usually ships in 4-12 days

0

8

Gravely 08987900

Weldment, Tank Bracket

$

$

Not available

9

Gravely 06529800

Nut-Locking-Center .31 - 18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05947200

Bolt-Hex .31-18 x .50-Grade 5
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

11

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 09304200

Negative Battery Cable

Note: (Includes Items 19, 20, 21 & 22)

$

$

Not available

13

Gravely 04132400

Positive Battery Cable

Note: (Includes Items 19, 20, 21 & 22)

$

$

Not available

14

Gravely 09305100

Battery, Marine Type

$

$

Not available

15

Gravely 09305200

Battery Box

$

$

Not available

16

Gravely 09329300

Strap, Battery Hold-Down
(Superseded to 09329351)

$

$

Not available

17

Gravely 06220200

Bolt-Round Head Square Neck .31-18 x 1.75-Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, Qty 6

0

18

Gravely 09329400

Latch Assembly-Battery Hold-Down
(Superseded to 09329451)

$

$

Not available

19

Gravely 05946800

Bolt-Hex .25-20 x .75-Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0
