993002 (Pro-Chip 395) - Gravely Pro-Chip Chipper, 40.5hp Yanmar Diesel (SN: 000101 & Above) HOPPER Parts Diagram

Pro-Chip Chipper, 40.5hp Yanmar Diesel

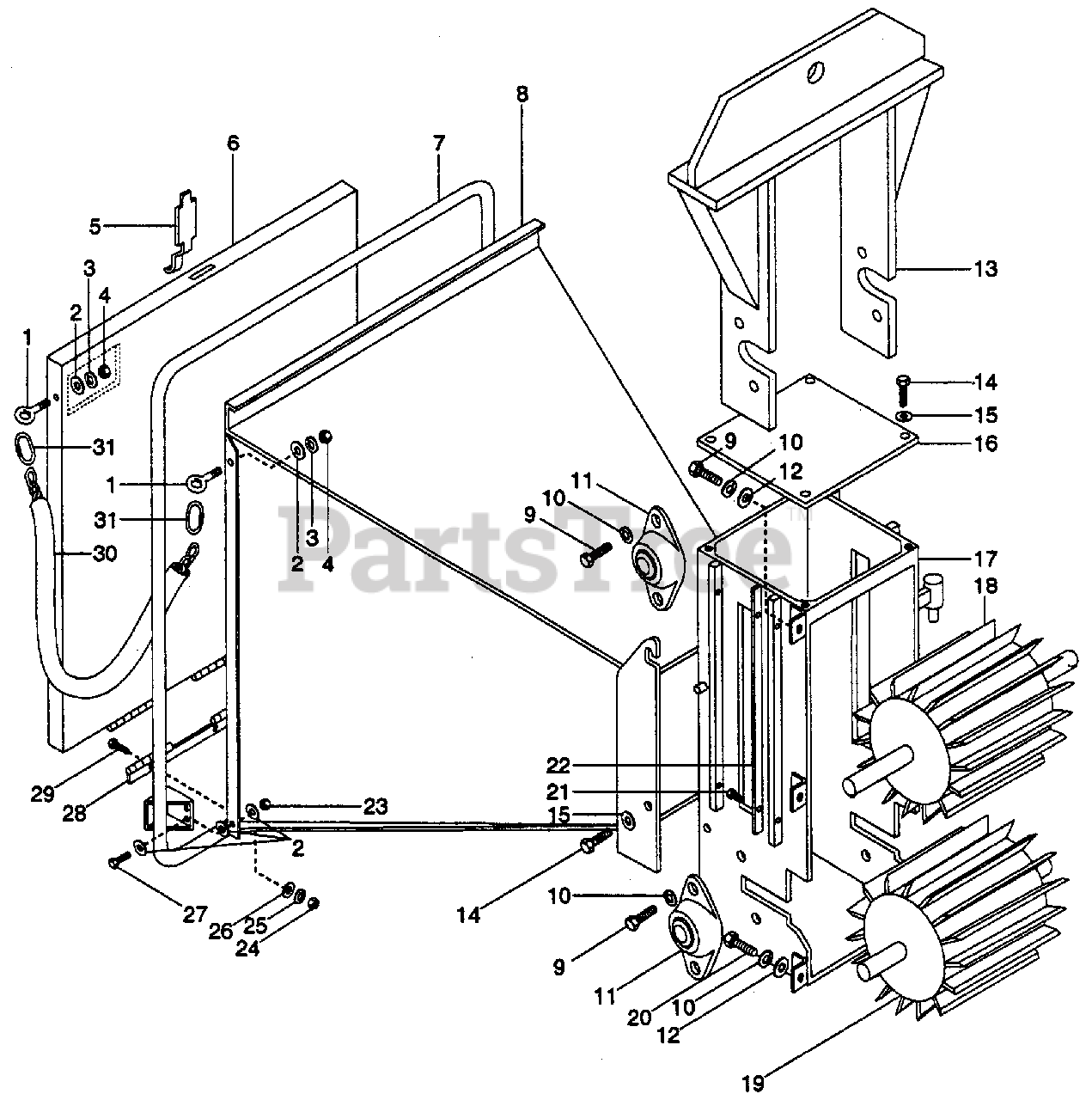

HOPPER Parts Diagram

  • Title

1

Gravely 04132600

Turned Eye Bolt

$

$

Not available

2

Gravely 06400800

Wshr-Fl Stl .438 x 1.0 x .083 Pl
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06302100

Wshr-Lock .375 x .094 Med Pl
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06501800

Nut-Hex .375 x .094 Med Pl
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 04122900

Latch

$

$

Not available

6

Gravely 04125353

Apron Weldment
(Superseded to 04125350)

$

$

Not available

6

Gravely 04125357

Apron Weldment

Note: (Used Only On Model(s): 941011).

$

$

Not available

7

Gravely 04124353

Safety Loop Weldment

$

$

Not available

7

Gravely 04124357

Safety Loop Weldment

Note: (Used Only On Model(s): 941011).

$

$

Not available

8

Gravely 04122853

Hopper Weldment
(Superseded to 04122800)

$

$

Not available

8

Gravely 04122857

Hopper Weldment

Note: (Used Only On Model(s): 941011).

$

$

Not available

9

Gravely 05914600

Blt-Hex .50-13 x 1.25 Pl Gr 5
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

10

Gravely 06300600

Wshr-Lock .500 x 1.51 Hvy Pl
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

11

Gravely 05418700

Brg 2 Bolt-Flg

$

$

Not available

12

Gravely 06400300

Wshr-Fl-Stl .531 x 1.062 x .095 Pl
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 04121300

Saddle Weldment

$

$

Not available

14

Gravely 05915400

Blt-Hex .38-16 x .75 Pl Gr 5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06404300

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 04123153

Cover

$

$

Not available

16

Gravely 04123157

Cover

Note: (Used Only On Model(s): 941011).

$

$

Not available

17

Gravely 04122700

Feed Roller Box Weldment

$

$

Not available

18

Gravely 04123900

Upper Feed Roller Weldment

$

$

Not available

19

Gravely 04124000

Lower Feed Roller Weldment

$

$

Not available

20

Gravely 05930200

Blt-Hex .50-13 x l.00 Pl Gr 8

$

$

Not available

21

Gravely 05929400

Scr-Skh .25-20 x.50 FltCntSk
(Superseded to 06117300)

$

$

Not available

22

Gravely 04123300

Front Rub Strip

$

$

Not available

Gravely 04124100

Rear Rub Strip

$

$

Not available

23

Gravely 06503900

Nut-Lk .375-16 Gr A Pl
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06503200

Nut .250-20 Pl
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

25

Gravely 06300200

Wshr-Lock .250 x .007 Hvy Pl
(Superseded to 06308000)

$

$

Not available

26

Gravely 06412700

Wshr-Fl Stl .281 x .62 x .065 Pl
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 05916100

Blt-Hex .38-16 x 1.75 Pl Gr 5
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 04125303

Apron-Hinge-Cut
(Superseded to 04125400)

$

$

Not available

29

Gravely 05908200

Blt-Hex .25-20 x .75 Pl Gr 5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0
