993002 (Pro-Chip 395) - Gravely Pro-Chip Chipper, 40.5hp Yanmar Diesel (SN: 000101 & Above) FLYWHEEL AND DISCHARGE Parts Diagram

Pro-Chip Chipper, 40.5hp Yanmar Diesel

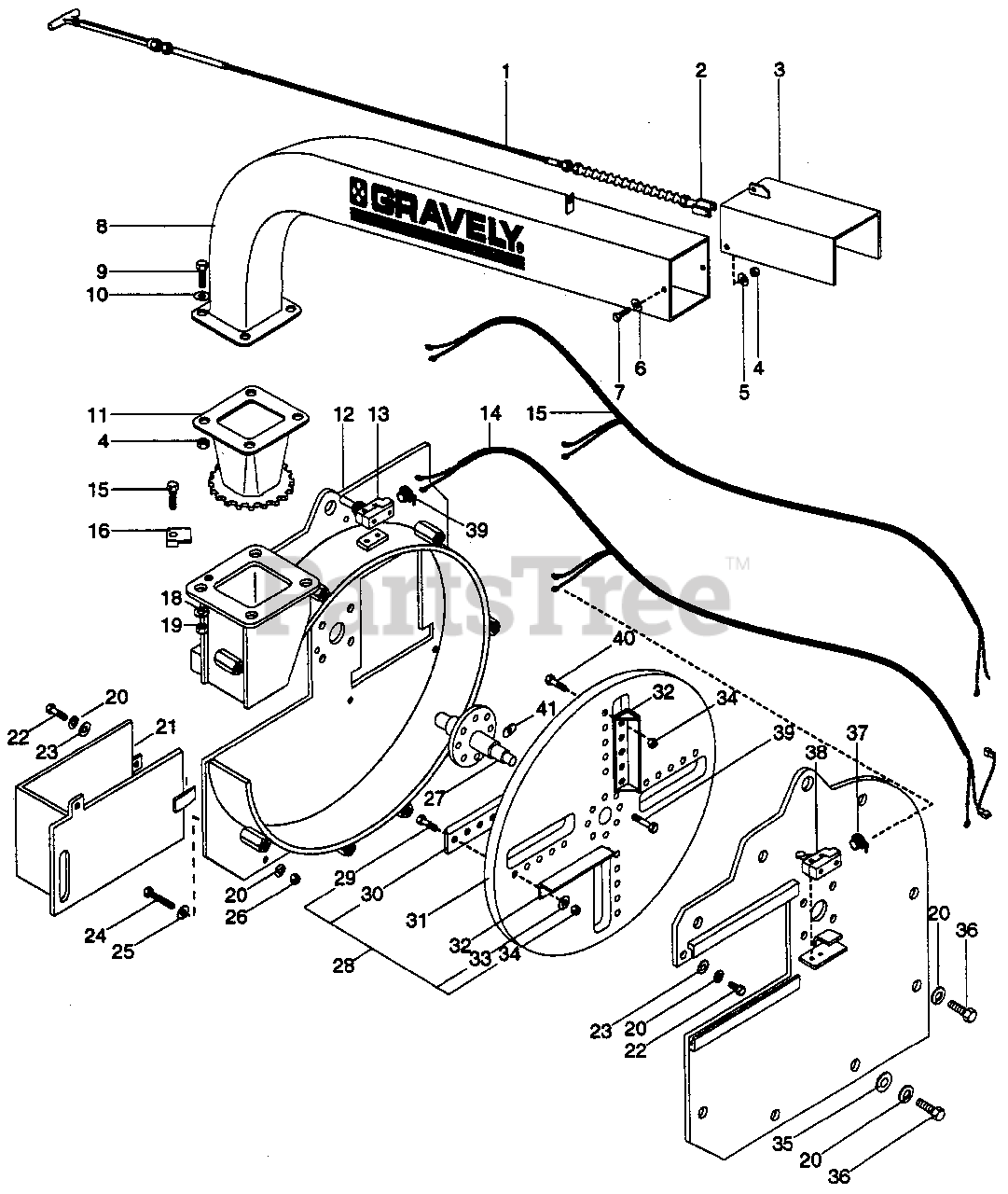

FLYWHEEL AND DISCHARGE Parts Diagram

  • Title
1

Gravely 06917800

Control Cable
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

2

Gravely 04139200

Clevis Assembly

$

$

Not available

3

Gravely 04123053

Bonnet Weldment

$

$

Not available

3

Gravely 04123057

Bonnet Weldment

Note: (Used Only On Model(s): 941011).

$

$

Not available

4

Gravely 06503900

Nut Lk .375-16 Gr A Pl
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06425000

Wshr-Fl-Ny .38 x 1.0 x .083

$

$

Not available

6

Gravely 06421500

Wshr-Fl-Stl .38 x 1.60 x. 1 25 Pl
(Superseded to 06443400)

$3.49

$

In Stock, Qty 11

0

7

Gravely 05914500

Blt-Hex .38-16 x 1.00 Pl Gr 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 04121453

Discharge Tube Weldment
(Superseded to 59304000)

$

$

Not available

8

Gravely 04121457

Discharge Tube Weldment

Note: (Used Only On Model(s): 941011).

$

$

Not available

9

Gravely 05913300

Blt-Hex .38-16 x 1.25 Pl Gr 5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06404300

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 04124453

Vertical Discharge Riser Weldment
(Superseded to 04124400)

$

$

Not available

11

Gravely 04124457

Vertical Discharge Riser Weldment

Note: (Used Only On Model(s): 941011).

$

$

Not available

12

Gravely 04120853

Rear Chipper Housing Weldment
(Superseded to 04120800)

$

$

Not available

12

Gravely 04120857

Rear Chipper Housing Weldment
(Superseded to 04120800)

Note: (Used Only On Model(s): 941011).

$

$

Not available

13

$

$

Not available

14

Gravely 04140200

Safety Wire Harness

Note: (Used Only On Model(s): 993002,941011).

$

$

Not available

15

Gravely 09306800

Safety Wire Harness

Note: (Used Only On Model(s): 993009).

$

$

Not available

16

Gravely 05914700

Blt-Hex .38-16 x 2.00 Pl Gr 5
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

17

Gravely 04123753

Bed Knife Mount Weldment
(Superseded to 04123700)

$

$

Not available

17

Gravely 04123757

Bed Knife Mount Weldment

Note: (Used Only On Model(s): 941011).

$

$

Not available

18

Gravely 06302100

Wshr-Lock .375 x.094 Med Pl
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06501800

Nut-Hex .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06300600

Wshr-Lock .500 x 1.51 Hvy Pl
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

21

Gravely 04120953

Access Cover Weldment

$79.99

$

Usually ships in 4-12 days

0

21

Gravely 04120957

Access Cover Weldment

Note: (Used Only On Model(s): 941011).

$

$

Not available

22

Gravely 05930000

Blt-Hex .50-13 x 1 Pl Gr 5
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

23

Gravely 06400300

Wshr-Fl-Stl .531 x 1.062 x .095 Pl
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05923500

Blt-Hex .50-13 x 2.00 Pl Gr 5
(Superseded to 05901929)

$

$

Not available

25

Gravely 06412000

Wshr-Fl-Stl .563 x 1.37 x .109 Pl
(Superseded to 06442000)

$2.49

$

In Stock, only 2 left!

0

26

Gravely 06502100

Nut .50-13 Pl
(Superseded to 06537300)

$3.99

$

In Stock, only 1 left!

0

27

Gravely 04121700

Shaft Weldment

$

$

Not available

28

Gravely 79300600

Chipper Knife Set

$

$

Not available

29

Gravely 05930800

Blt-Hex .50-13 x 3.0 Gr 8 Fl Skh

$

$

Not available

30

Gravely 04121800

Chipper Knife
(Superseded to 59304500)

$

$

Not available

31

Gravely 04122000

Cutter Wheel

$

$

Not available

32

Gravely 04121900

Impeller Angle Weldment

$

$

Not available

33

Gravely 06403200

Wshr-Fl-Stl .568 x 1.750 x .219

$

$

Not available

34

Gravely 06512700

Nut-Lk-Crown .50-13 Gr C Pl
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

35

Gravely 06420100

Wshr-Fl-Stl .531 x 1.250 x .100 Pl
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 05920000

Blt-Hex .50-13 x 1.50 Pl Gr 5
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

37

Gravely 04132700

Romex Connector 6623 3/8

$

$

Not available

38

$

$

Not available

39

Gravely 05930700

Blt-Hex .62-11 x 2.25 Pl Gr 8

$3.99

$

In Stock, only 1 left!

0

40

Gravely 05914600

Blt-Hex .50-13 x 1.25 Pl Gr 5
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

41

Gravely 04125200

Lock Tab

$

$

Not available
