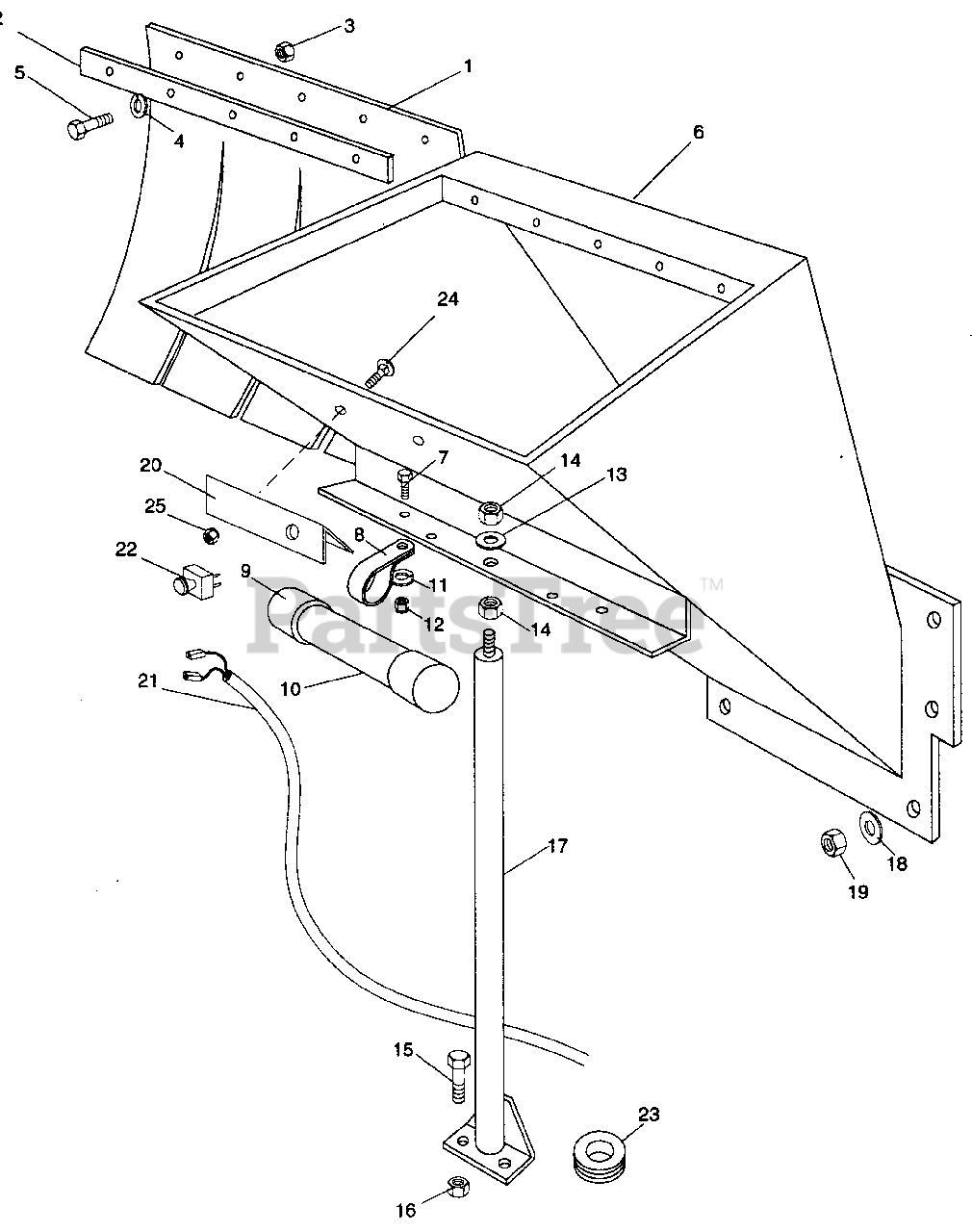

993001 (Pro-Chip 210) - Gravely Pro-Chip Chipper, 18hp Kohler (SN: 000101 & Above) HOPPER Parts Diagram

Pro-Chip Chipper, 18hp Kohler

HOPPER Parts Diagram

  • Title
1

Gravely 093039

RUBBER FLAP
(Superseded to 09303900)

$

$

Not available

2

Gravely 04102753

BRACE
(Superseded to 04102700)

$

$

Not available

3

Gravely 065070

NUT-LK TOP .250-20 PL
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 064094

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 059082

BLT-HEX .25-20X.75 PL GR 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

$

$

Not available

7

Gravely 059082

BLT-HEX .25-20X.75 PL GR 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 069244

CLAMP
(Superseded to 06924400)

$

$

Not available

9

Gravely 093059

END CAP INSTRUCTION TUBE
(Superseded to 09305900)

$

$

Not available

10

Gravely 093058

PLASTIC TUBE INSTRUCTIONS
(Superseded to 09305800)

$

$

Not available

11

Gravely 063002

WSHR-LOCK .250X.007 HVY PL
(Superseded to 06308000)

$

$

Not available

12

Gravely 065032

NUT .250-20 PL
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

13

Gravely 063008

WSHR-LOCK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 065025

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 074030

SCR-TAP .375-16X1.0 HWH PL TR
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 065039

NUT-LK .375-16 GR A PL
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 04101953

HOPPER STAND

$

$

Not available

18

Gravely 064130

WSHR-FL-STL .406X1.000X.188 PL
(Superseded to 06402800)

$

$

Not available

19

Gravely 065122

NUT-LK TOP .375-16 GR C PL
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 093029

MOUNT BRACKET, STOP SWITCH
(Superseded to 09302953)

$

$

Not available

21

Gravely 093024

WIRE HARNESS 210 PRO CHIP
(Superseded to 09302400)

$

$

Not available

22

Gravely 093035

SWITCH, PUSH/PULL
(Superseded to 09303500)

$

$

Not available

23

Gravely 075306

GRMT .75X1.06X1.38
(Superseded to 07530600)

$2.49

$

Usually ships in 4-12 days

0

24

062039

BLT-RDHDSQNK .25-20X.38 SHT PL

$

$

Not available

25

Gravely 065040

NUT-LK-CTR .250-20 PL
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
