993001 (Pro-Chip 210) - Gravely Pro-Chip Chipper, 18hp Kohler (SN: 000101 & Above) FLYWHEEL AND HOUSING Parts Diagram

Pro-Chip Chipper, 18hp Kohler

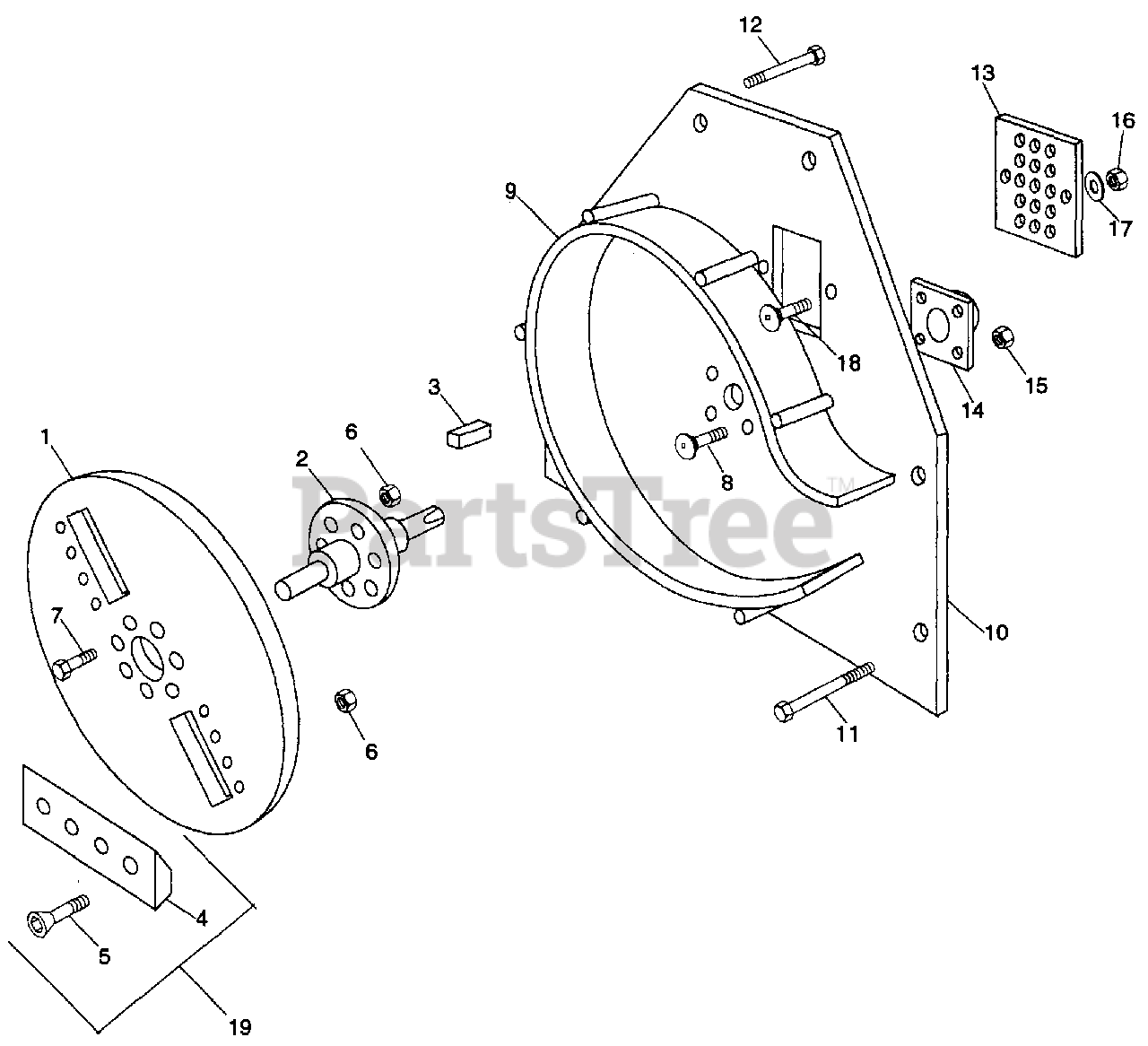

FLYWHEEL AND HOUSING Parts Diagram

  • Title

1

Gravely 093023

CUTTING WHEEL
(Superseded to 09302300)

$1429.99

$

Usually ships in 4-12 days

0

2

Gravely 093022

ARBOR SHAFT 210
(Superseded to 09302200)

$

$

Not available

3

Gravely 066056

KEY STR .38X2.0X.38
(Superseded to 06605600)

$

$

Not available

4

Gravely 093026

CUTTER BLADE
(Superseded to 59304100)

$

$

Not available

5

Gravely 059248

BLT-HEX .50-13X1.75 FL SKH
(Superseded to 05924800)

$

$

Not available

6

Gravely 065127

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

7

Gravely 059235

BLT-HEX .50-13X2.00 PL GR 5
(Superseded to 05969700)

$

$

Not available

8

Gravely 070097

BLT-LUG .50-20X1.50
(Superseded to 07009700)

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 04100853

DRUM STRAP WELDMENT

$

$

Not available

10

Gravely 04100953

BLOWER SIDE L.H.

$

$

Not available

11

Gravely 059247

BLT-HEX .38-16X6.00 PL GR 5
(Superseded to 05966000)

$

$

Not available

12

Gravely 059254

BLT-HEX .38-16X5.50
(Superseded to 05982000)

$3.99

$

In Stock, only 2 left!

0

13

4103153

INSPECTION PLATE

$

$

Not available

14

Gravely 093021

FOUR HOLE FLANGE BEARING
(Superseded to 09302100)

$

$

Not available

15

Gravely 065172

NUT-LK-TOP .50-20 GR C PL
(Superseded to 06517200)

$

$

Not available

16

Gravely 065018

NUT-HEX .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 063004

WSHR-LOCK .375X.115 HVY PL
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

18

Gravely 070098

BLT-CARR SPLRIB .38-16X1.0 GR 5 PL
(Superseded to 07009800)

$

$

Not available

19

Gravely 541004

CHIPPER KNIFE KIT - 210/PTO

$

$

Not available
