993001 (Pro-Chip 210) - Gravely Pro-Chip Chipper, 18hp Kohler (SN: 000101 & Above) ENGINE AND CLUTCH Parts Diagram

Pro-Chip Chipper, 18hp Kohler

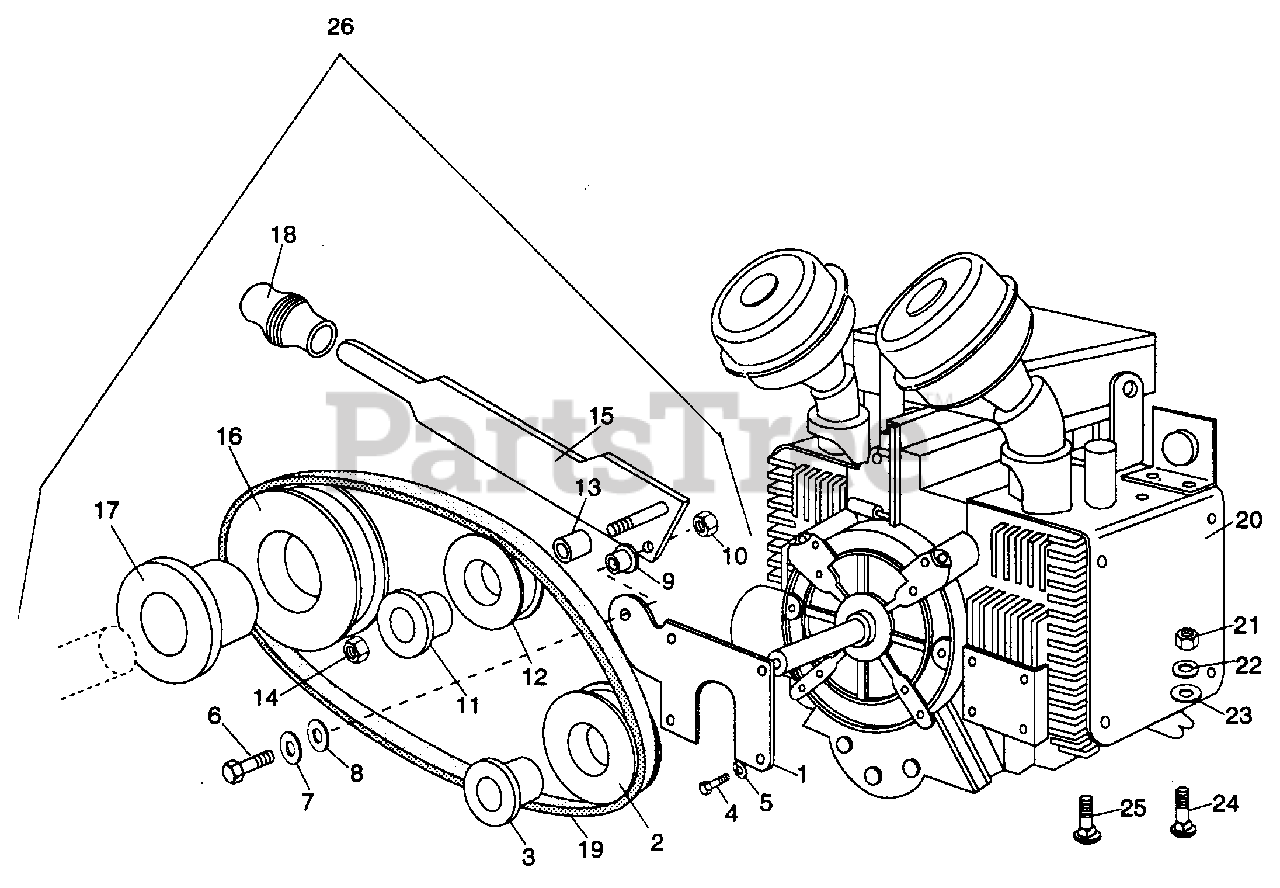

ENGINE AND CLUTCH Parts Diagram

  • Title

1

4129053

ENGINE BRACKET WELDMENT

$

$

Not available

2

Gravely 073164

ENGINE SHEAVE 3-3V41
(Superseded to 07316400)

$

$

Not available

3

Gravely 093046

ENGINE BUSHING SH 1.12
(Superseded to 09304600)

$

$

Not available

4

Gravely 059244

BLT-HEX .44-14X1.25 PL GR 5
(Superseded to 05964800)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 063005

WSHR-LOCK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 059235

BLT-HEX .50-13X2.00 PL GR 5
(Superseded to 05969700)

$

$

Not available

7

Gravely 064003

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 064251

WSHR .50 BRONZE(ND)
(Superseded to 06425100)

Note: (ND)

$

$

Not available

9

Gravely 055110

BSHG-FLG .500X.750X.625X.937
(Superseded to 05511000)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 065127

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

11

Gravely 093049

BUSHING IDP1 X 5/8
(Superseded to 09304900)

$

$

Not available

12

Gravely 073165

IDLER SHEAVE SP3V4.1
(Superseded to 07316500)

$

$

Not available

13

Gravely 093047

SPACER
(Superseded to 09304700)

$

$

Not available

14

Gravely 065200

NUT-LK-FLEX .625-11
(Superseded to 06520000)

$

$

Not available

15

4138153

CLUTCH HANDLE WELDMENT

$

$

Not available

16

Gravely 073166

FLYWHEEL SHEAVE 3-3V80
(Superseded to 07316600)

$

$

Not available

17

Gravely 093045

BUSHING, SK X 1-1/2
(Superseded to 09304500)

$43.99

$

Usually ships in 4-12 days

0

18

Gravely 075006

GRIP

$

$

Not available

19

Gravely 072194

V-BELT 3/3VX500
(Superseded to 07219400)

$

$

Not available

20

Gravely 082303

ENGINE KOHLER 18 H.P. SPEC. #24653

$

$

Not available

21

Gravely 065018

NUT-HEX .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 063004

WSHR-LOCK .375X.115 HVY PL
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

23

Gravely 064008

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 062043

BLT-RDHDSQNK .38-16X1.50 GR 5 PL
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 062081

BLT-RDHDSQNK .38-16X1.25 GR 5 PL
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

26

Gravely 741007

IDLER CLUTCH KIT 1 1/8 IN.(INC. 1 - 19 )

Note: (INC. 1 - 19 )

$

$

Not available
