993001 (Pro-Chip 210) - Gravely Pro-Chip Chipper, 18hp Kohler (SN: 000101 & Above) CHUTE AND BELT GUARD Parts Diagram

Pro-Chip Chipper, 18hp Kohler

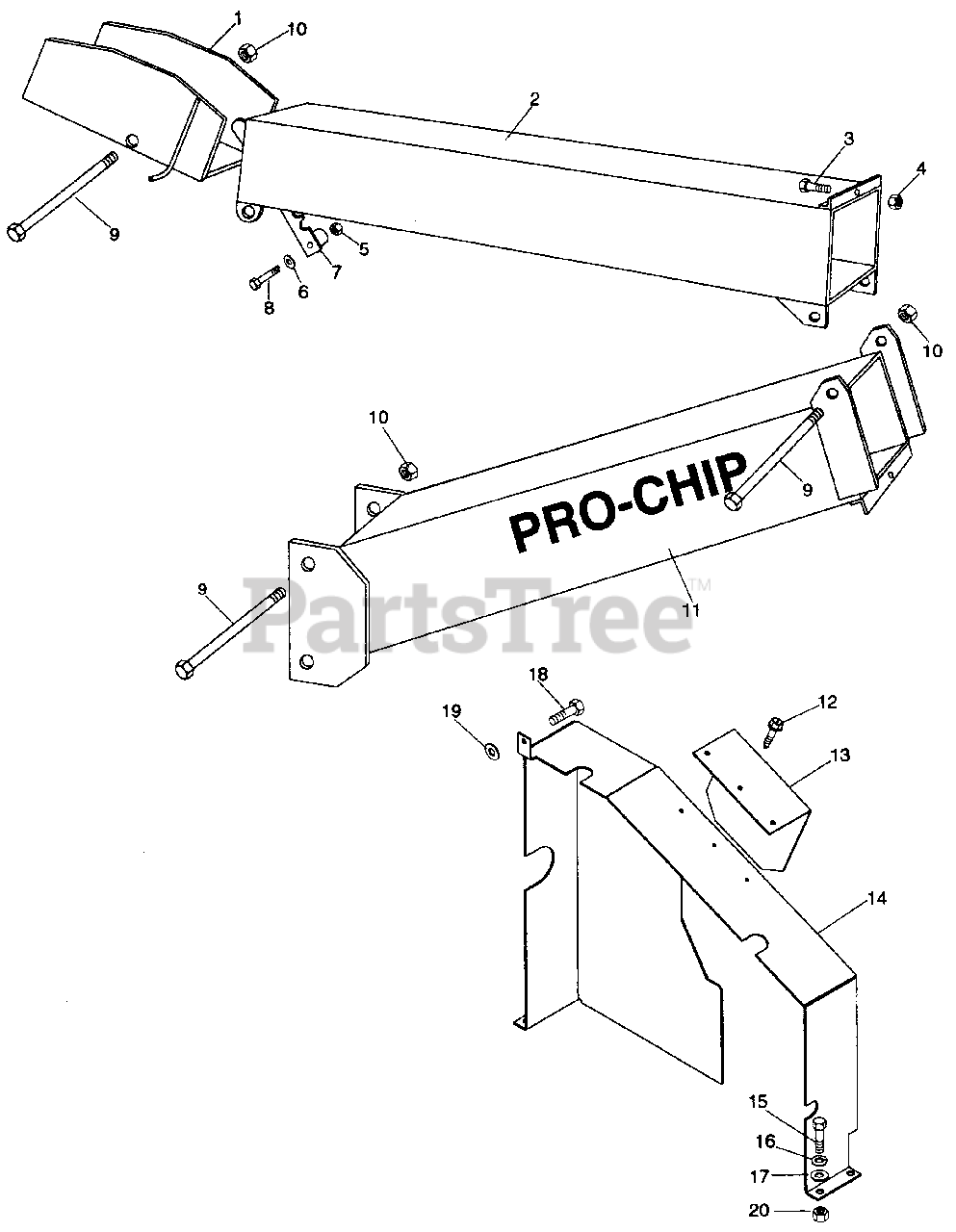

CHUTE AND BELT GUARD Parts Diagram

  • Title
1

Gravely 04125853

CAP
(Superseded to 04125800)

$

$

Not available

2

Gravely 04125753

CHUTE UPPER
(Superseded to 09350800)

$

$

Not available

3

Gravely 059135

BLT-HEX .31-18X.75 PL GR 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 065062

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 065122

NUT-LK TOP .375-16 GR C PL
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 064008

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09303453

LOCK BAR
(Superseded to 09303451)

$

$

Not available

8

Gravely 059147

BLT-HEX .38-16X2.00 PL GR 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

9

Gravely 059247

BLT-HEX .38-16X6.00 PL GR 5
(Superseded to 05966000)

$

$

Not available

10

Gravely 065122

NUT-LK TOP .375-16 GR C PL
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 04101453

LOWER CHUTE
(Superseded to 09348100)

$

$

Not available

12

Gravely 074015

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 093025

SHEAVE GUARD
(Superseded to 09302553)

$

$

Not available

14

Gravely 093005

BELT GUARD WELDMENT
(Superseded to 09343300)

$

$

Not available

15

Gravely 059181

BLT-HEX .31-18X1.00 PL GR 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 063003

WSHR-LOCK .312 ID HEAVY PL
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 064002

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 059155

BLT-HEX .25-20X.50 PL GR 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 063002

WSHR-LOCK .250X.007 HVY PL
(Superseded to 06308000)

$

$

Not available

20

Gravely 065015

NUT-HEX .312 - 18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0
