992808 (3166 S) - Ariens Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Seat And Foot Plate Parts Diagram

Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki

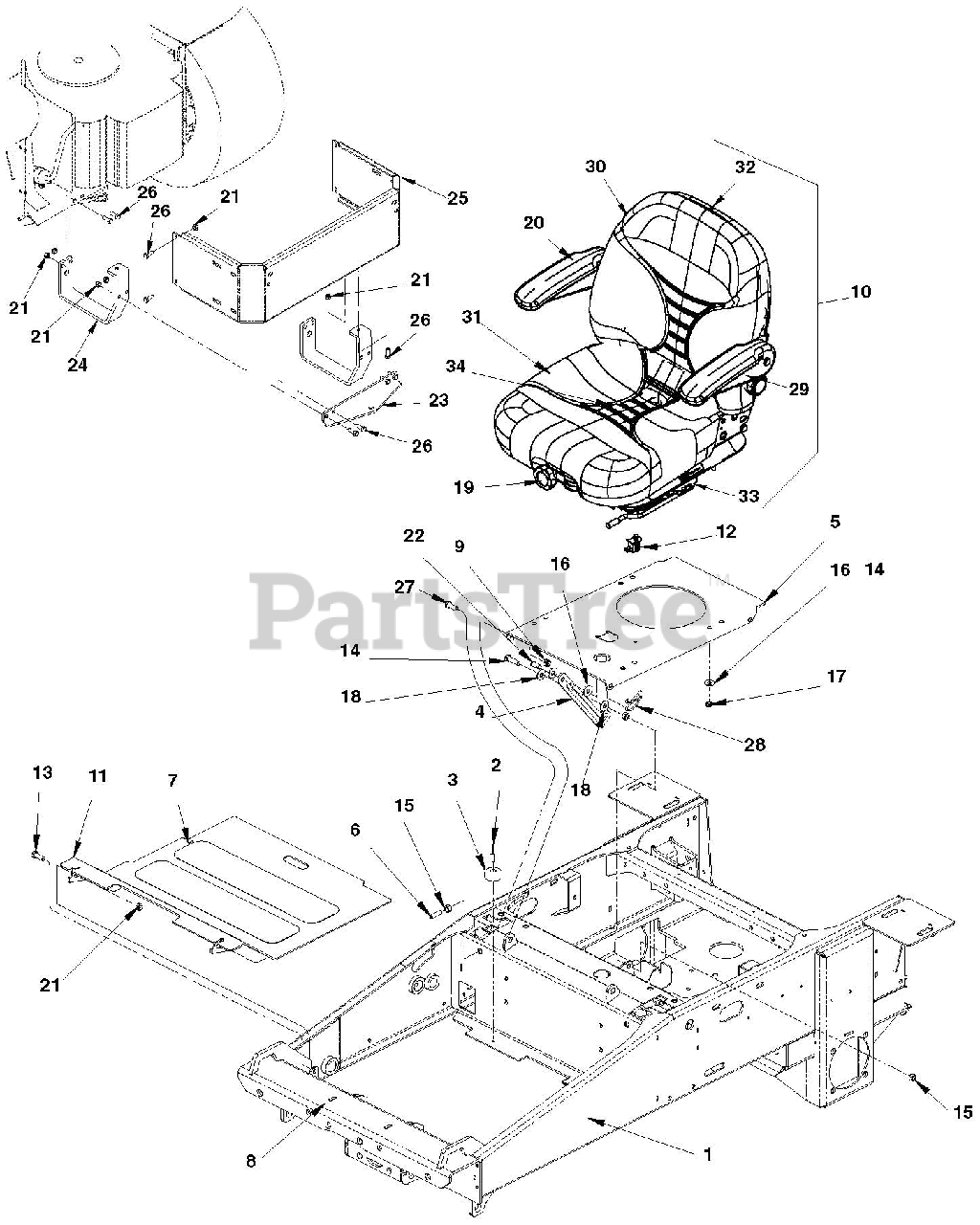

Seat And Foot Plate Parts Diagram

  • Title

1

Ariens 03850400

FRAME WITH DECALS ACM

$

$

Not available

2

Ariens AA968100

RIVET, 3/16 X .500 POP ST

$

$

Not available

3

Ariens 00180390

BUMPER, RUBBER .625 X 1.50 DIA

$4.49

$

Usually ships in 4-12 days

0

4

Ariens 00180391

BAR, SEAT LOCK

$

$

Not available

5

Ariens 03817459

PLATE, SEAT

$67.99

$

Usually ships in 4-12 days

0

6

Ariens 00962903

SET SCREW, 3/8-16X1.25 SK CUP
(Superseded to 06006002)

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 00180658

TAPE, NON-SLIP - 4.00 X 18.00

$26.99

$

Usually ships in 4-12 days

0

8

Ariens 00180659

TAPE, NON-SLIP - 2.50 X 21.50

$

$

Not available

9

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

10

Ariens 03947200

SEAT-SUSP-LT GRY-SEAT BLT BUSH

Note: (Includes items 12, 19, 20 and 29 - 34)

$905.99

$

Usually ships in 4-12 days

0

11

Ariens 03817359

WLDT, FOOT PLATE

$103.99

$

Usually ships in 4-12 days

0

12

Ariens 02754100

SWITCH- SNAP MTG N.O.

$9.49

$

In Stock, Qty 20+

0

13

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

16

Ariens 00960701

WASHER, .313 REG FLAT Y
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 00964021

LOCKNUT, 5/16-18 CROWN Y
(Superseded to 06530800)

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 59208000

KIT-SEAT KNOB

$

$

Not available

20

Ariens 59210400

KIT-RH ARMREST ASSEMBLY REPLAC

$129.99

$

Usually ships in 4-12 days

0

21

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

22

Ariens 00967176

PIN, CVS .375X.750X.516 Y
(Superseded to 06814800)

$3.99

$

In Stock, only 4 left!

0

23

Ariens 03817259

PLATE, HITCH

$

$

Not available

24

Ariens 03771859

ARM, HITCH SUPPORT

$96.99

$

Usually ships in 4-12 days

0

25

Ariens 03792259

PLATE, REAR BUMPER

$

$

Not available

26

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 00967353

RING, RUE .375 X .054 X 1.254

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 59210500

KIT-LH ARMREST ASSEMBLY REPLAC

$129.99

$

Usually ships in 4-12 days

0

30

Ariens 59208800

KIT-BACK CUSHION-LIGHT GRAY

$423.99

$

Usually ships in 4-12 days

0

31

Ariens 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$258.99

$

In Stock, only 3 left!

0

32

Ariens 59208100

KIT-SEAT BACK PANEL

$175.99

$

Usually ships in 4-12 days

0

33

Ariens 59207900

KIT-SEAT SLIDE

$

$

Not available

34

Ariens 59207800

KIT-SPRING AND SADDLE

$175.99

$

Usually ships in 4-12 days

0
