992808 (3166 S) - Ariens Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Deck Mount Parts Diagram

Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki

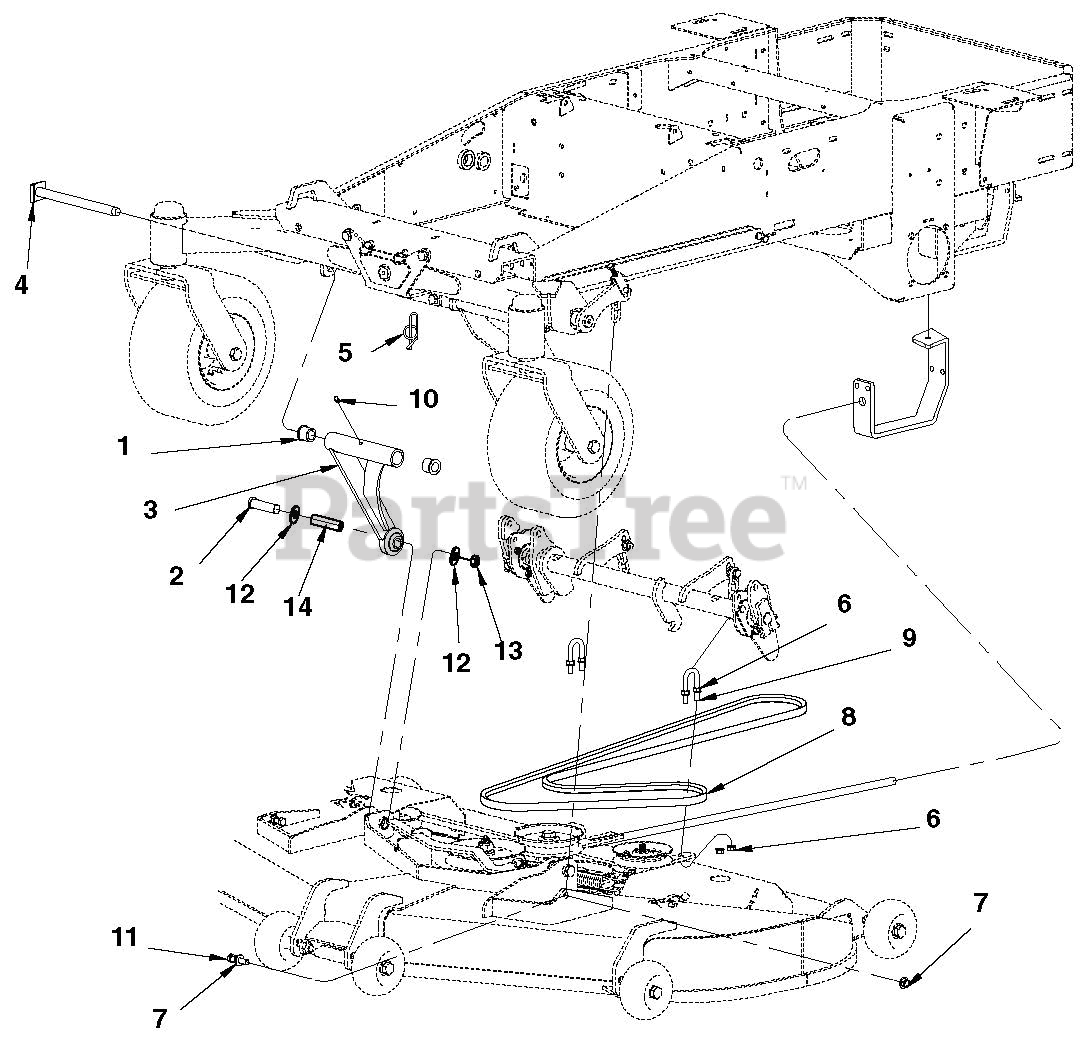

Deck Mount Parts Diagram

  • Title

1

Ariens 00150079

BRG, FLG .750X1.13X1.00

$9.49

$

Usually ships in 4-12 days

0

2

Ariens 00960122

BOLT, 1/2-13X3.50 HEX 5 Y
(Superseded to 05965800)

$4.99

$

In Stock, only 1 left!

0

3

Ariens 03814051

WLDT, DECK PULL 11.5

$196.99

$

Usually ships in 4-12 days

0

4

Ariens 00180224

PIN, PVT .750X9.75X9.20 XDRL U

$

$

Not available

5

Ariens 00967357

RING, RUE .750 X .080 X 2.081

$

$

Not available

6

Ariens 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00967342

LOCKNUT, 7/16-14 WHIZ Y
(Superseded to 06530004)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 00181715

BELT, HB 114.9 EL AMD

Note: (Clutch to Deck)

$80.99

$

Usually ships in 4-12 days

0

9

Ariens 00181485

U-BOLT, RD 1.00X3.00X3/8-16 Y

$11.99

$

Usually ships in 4-12 days

0

10

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

11

Ariens 00960082

BOLT, 7/16-14X1.75 HEX 5 Y
(Superseded to 05982100)

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 00960704

WASHER, .500 REG FLAT Y
(Superseded to 06442000)

$2.49

$

In Stock, only 2 left!

0

13

Ariens AA964000

LOCKNUT, 1/2-13 CROWN Y
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

14

Ariens 03856600

TUBE, RD .750 X.125W X 2.469

$18.99

$

Usually ships in 4-12 days

0
