992808 (3166 S) - Ariens Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 & Above) Belts, Idlers And Blades Parts Diagram

Pro-Zoom 66" Zero-Turn Mower, 31hp Kawasaki

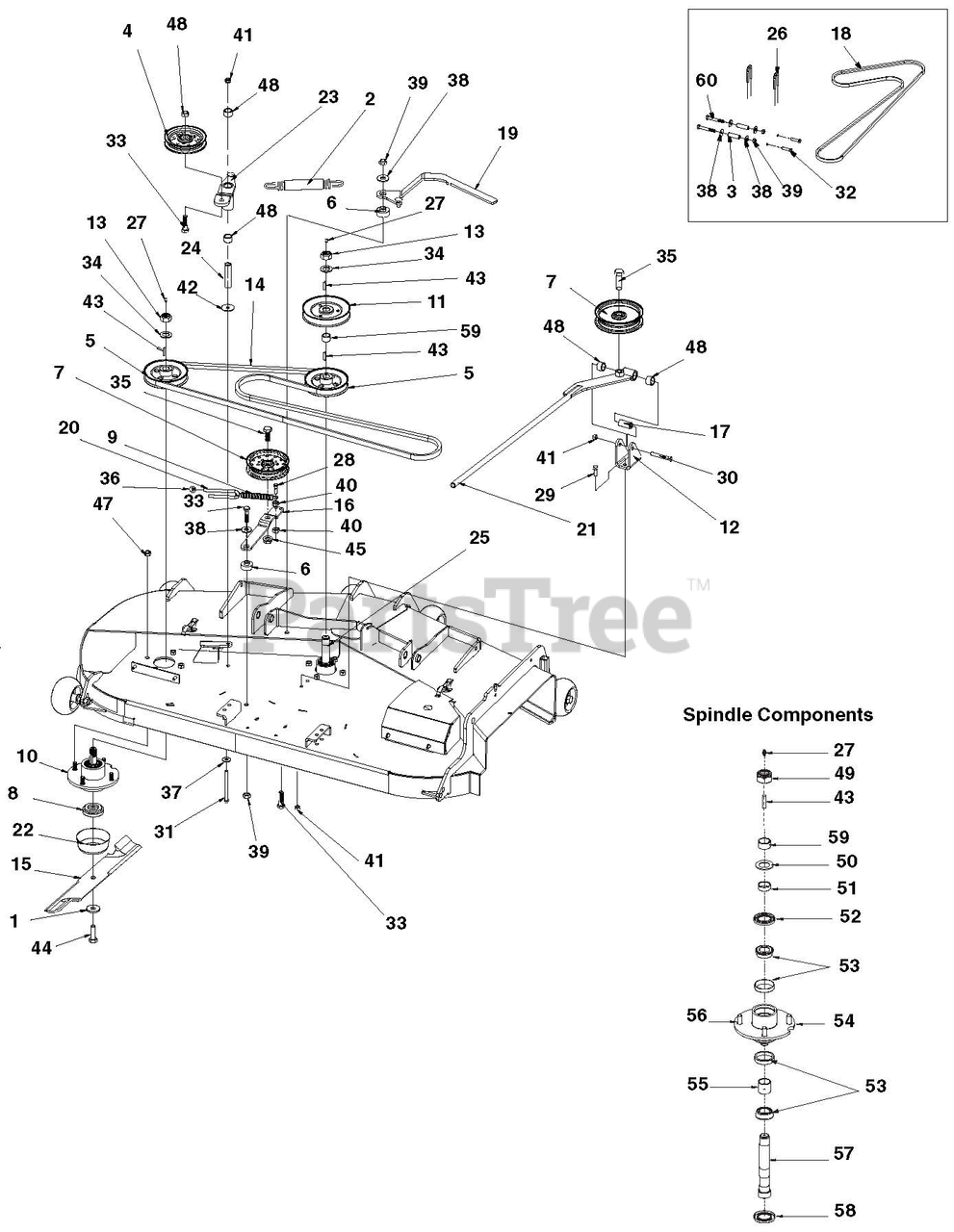

Belts, Idlers And Blades Parts Diagram

  • Title

1

Ariens 00103906

WASHER, M14XM40XM4.5 FLAT Y

$9.49

$

In Stock, only 2 left!

0

2

Ariens 00104657

SPRING, EXT 1.18X.177X7.50 Y

$28.99

$

In Stock, only 2 left!

0

3

Ariens 03856600

TUBE, RD .750 X.125W X 2.469

$18.99

$

Usually ships in 4-12 days

0

4

Ariens 00112614

PULLEY, V-BELT 5.00X.510 W/BRG

$71.99

$

Usually ships in 4-12 days

0

5

Ariens 07300011

SHEAVE, 5.00 SPINDLE (1.00ID)
(Superseded to 07331167)

Note: (1.00ID)

$76.99

$

In Stock, only 1 left!

0

6

Ariens AA160100

SPACER, .516 X .750 X .853 Y

$9.99

$

In Stock, only 3 left!

0

7

Ariens 00162146

PULLEY, FLAT 5.00X.635 W/BRG

$75.99

$

Usually ships in 4-12 days

0

8

Ariens 00162779

SPCR, BLADE

$35.99

$

In Stock, only 1 left!

0

9

Ariens 00162801

SPRING, EXT .750X.125X4.50 Y

$29.99

$

Usually ships in 4-12 days

0

10

Ariens 00181917

ASSY, SPINDLE 1"SHORT SHFT S/O

Note: (includes items 27, 43 and 49 - 59)

$426.99

$

Usually ships in 4-12 days

0

11

Ariens 00181823

PULLEY, V-BELT 6.57X1.00 W/KEY

Note: (992807)

$84.99

$

In Stock, only 1 left!

0

11

Ariens 00181911

PULLEY, V-BELT 7.21X1.00 W/KEY

Note: (992808)

$79.99

$

Usually ships in 4-12 days

0

12

Ariens 03823051

PLATE, PIVOT ANCHOR BENT

$51.99

$

Usually ships in 4-12 days

0

13

Ariens 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, only 2 left!

0

14

Ariens 00112616

BELT, HB 123.0 OC PES OHR

Note: (992807)

$62.99

$

In Stock, only 1 left!

0

14

Ariens 00181711

BELT, HB 131.0 EL AMD

Note: (992808)

$94.99

$

In Stock, only 2 left!

0

15

Ariens 00181026

BLADE, 20.940 X 1.00 LIFT

Note: (992807)

$30.99

$

In Stock, Qty 20+

0

15

Ariens 00181940

BLADE, 23.00 X 2.5 1.00 LIFT

Note: (992808)

$36.99

$

In Stock, only 3 left!

0

16

Ariens 03799551

ARM, BELT TENSIONER

$41.99

$

In Stock, only 1 left!

0

17

Ariens 00181062

SPANNER

$42.99

$

Usually ships in 4-12 days

0

18

Ariens 00181715

BELT, HB 114.9 EL AMD

$85.99

$

In Stock, only 1 left!

0

19

Ariens 03799351

WLDT, TENSION ARM

$48.99

$

Usually ships in 4-12 days

0

20

Ariens 00181194

U-BOLT, RD .63X4.50X3/8-16SP Y

$6.99

$

Usually ships in 4-12 days

0

21

Ariens 03853600

ASSY, OFFSET ARM

Note: (includes item 48)

$142.99

$

Usually ships in 4-12 days

0

22

Ariens 00181288

CAP, SPINDLE

$19.99

$

In Stock, only 1 left!

0

23

Ariens 03853500

ASSY, DECK IDLER

Note: (includes item 48)

$113.99

$

In Stock, only 1 left!

0

24

Ariens 00191347

TUBE, RD .750 X .156 X 3.05

$14.99

$

In Stock, only 1 left!

0

25

Ariens 00181910

ASSY, SPINDLE 1" LONG SHFT S/O

Note: (includes items 27, 43 and 49 - 59)

$426.99

$

In Stock, only 2 left!

0

26

Ariens 00181485

U-BOLT, RD 1.00X3.00X3/8-16 Y

$11.99

$

Usually ships in 4-12 days

0

27

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 00960024

BOLT, 5/16-18X1.25 HEX 5 Y
(Superseded to 05947500)

$2.49

$

In Stock, Qty 8

0

29

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 00960052

BOLT, 3/8-16X2.50 HEX 5 Y

$

$

Not available

31

Ariens 00960059

BOLT, 3/8-16X4.25 HEX 5 Y
(Superseded to 05981900)

$4.49

$

Usually ships in 4-12 days

0

32

Ariens 00960082

BOLT, 7/16-14X1.75 HEX 5 Y
(Superseded to 05982100)

$3.49

$

Usually ships in 4-12 days

0

33

Ariens 00960115

BOLT, 1/2-13X1.75 HEX 5 Y
(Superseded to 05970600)

$3.99

$

In Stock, only 2 left!

0

34

Ariens 00960711

WASHER, 1.062X1.75X0.100 Y

$3.49

$

In Stock, only 1 left!

0

35

Ariens 00960155

BOLT, 5/8-11X1.50 HEX 5 Y
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

36

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

37

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 00960704

WASHER, .500 REG FLAT Y
(Superseded to 06442000)

$2.49

$

In Stock, only 1 left!

0

39

Ariens AA964000

LOCKNUT, 1/2-13 CROWN Y
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

40

Ariens 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

42

Ariens 00964502

WASHER, .375X1.50X.063 FLAT Y
(Superseded to 06439300)

$3.49

$

In Stock, Qty 20+

0

43

Ariens 00966045

KEY, .250 X .250 X 1.00 SQ

$2.99

$

In Stock, only 2 left!

0

44

Ariens 00967187

BOLT, 9/16-12X1.75 HEX 8 Y
(Superseded to 05985600)

$5.99

$

In Stock, only 2 left!

0

45

Ariens 00967324

LOCKNUT, 5/8-11 WHIZ Y
(Superseded to 06500509)

$3.99

$

In Stock, only 3 left!

0

46

Ariens 00967342

LOCKNUT, 7/16-14 WHIZ Y
(Superseded to 06530004)

$2.49

$

Usually ships in 4-12 days

0

47

Ariens 00964005

NUT, 7/16-20 HEX GR5 Y
(Superseded to 06500434)

$3.99

$

Usually ships in 4-12 days

0

48

Ariens 00105546

BRG, SLV .753X.878X.750

$6.99

$

In Stock, only 4 left!

0

49

Ariens 00181818

NUT, 1-14 THIN PATTERN NYLOCK

$9.49

$

Usually ships in 4-12 days

0

50

Ariens 00960711

WASHER, 1.062X1.75X0.100 Y

$3.49

$

In Stock, only 1 left!

0

51

Ariens 00145557

BSHG, 1.00 X 1.25 X .438

$9.99

$

In Stock, only 1 left!

0

52

Ariens AA145551

SEAL, UPPER SPINDLE

$8.99

$

In Stock, only 2 left!

0

53

Ariens 00145555

BRG ASSY, 1IN DIA SPINDLE

$26.99

$

In Stock, Qty 20+

0

54

Ariens 03820551

CASTING-MOWER SPINDLE 3.31 LG

$

$

Not available

55

Ariens 00160116

SPACER, BEARING

$21.99

$

Usually ships in 4-12 days

0

56

Ariens 00145561

BOLT, 7/16-20X1.22 SPC 5 Y

$14.99

$

Usually ships in 4-12 days

0

57

Ariens 00180334

SHAFT, BLADE SPINDLE 1" SHORT

$142.99

$

In Stock, only 1 left!

0

57

Ariens 00180857

SHAFT, BLADE SPINDLE 1" LONG

$109.99

$

Usually ships in 4-12 days

0

58

Ariens 00145552

SEAL, BRG 1.00 ROLLER

$10.99

$

In Stock, only 3 left!

0

59

Ariens 00181822

SPACER, ?1.01 X ?1.25 X .635 Y

$18.99

$

Usually ships in 4-12 days

0

60

Ariens 00960122

BOLT, 1/2-13X3.50 HEX 5 Y
(Superseded to 05965800)

$4.99

$

In Stock, only 2 left!

0

61

Ariens 03876800

SPINDLE BEARING KIT

Note: (Contains items 52, 53, 55 and 58)

$142.99

$

Usually ships in 4-12 days

0
