992807 (2760 S) - Ariens Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000111 & Above) Steering Controls Parts Diagram

Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki

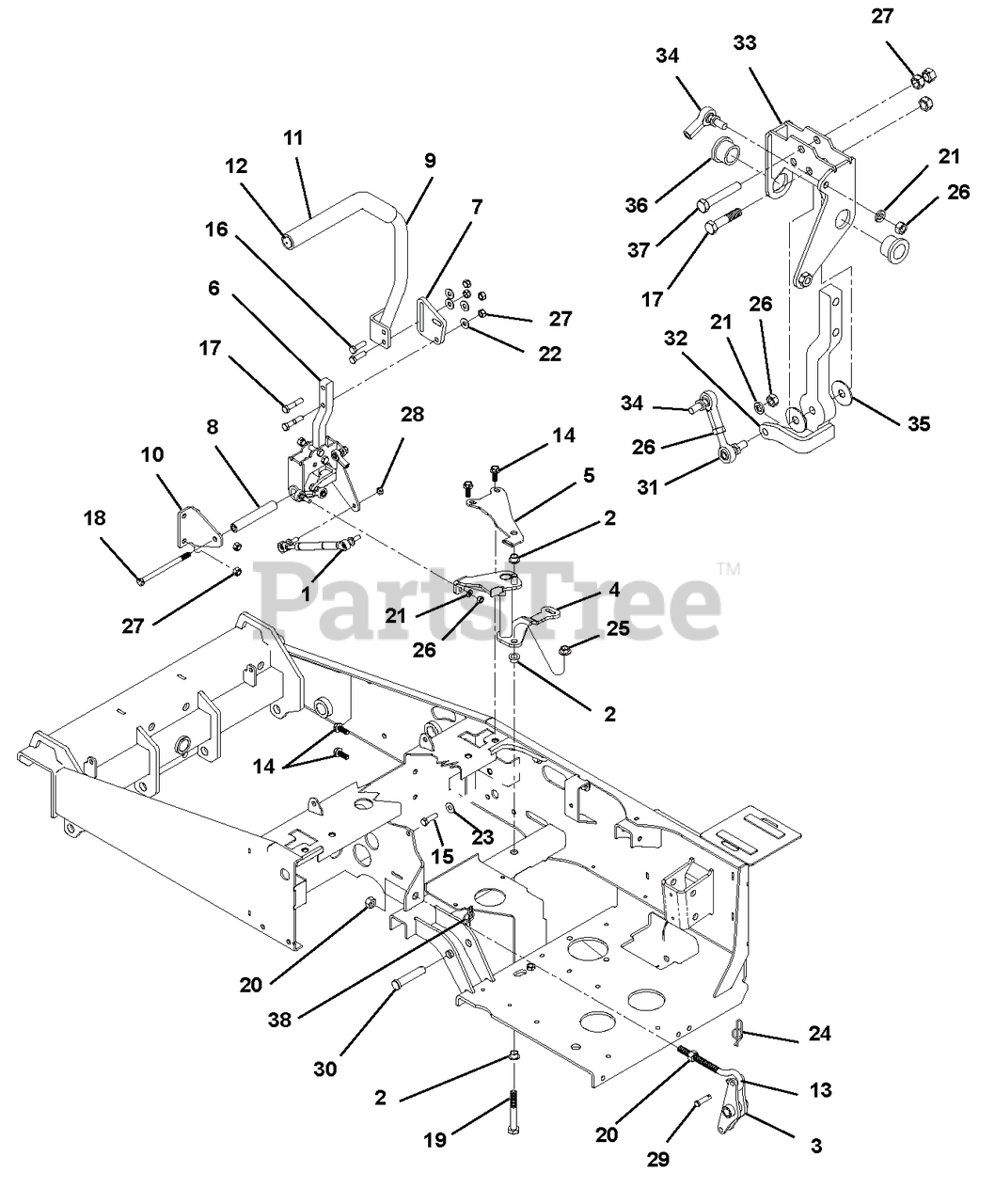

Steering Controls Parts Diagram

  • Title

1

Ariens 00180231

DAMPNER, STEERING CONTROL

$

$

Not available

2

Ariens 00180354

BRG, FLG .502X.629X.421

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 03814551

WLDT, SPRING PIVOT

$47.99

$

Usually ships in 4-12 days

0

4

Ariens 03833751

WLDT, RH PARK BRAKE CONTROL

$93.99

$

Usually ships in 4-12 days

0

4

Ariens 03833951

WLDT, LH PARK BRAKE CONTROL

$93.99

$

Usually ships in 4-12 days

0

5

Ariens 03818951

EAR, RH BRAKE PIVOT

$

$

Not available

5

Ariens 03819051

EAR, LH BRAKE PIVOT

$

$

Not available

6

Ariens 03816151

WLDT, RH STEERING BAR

$170.99

$

Usually ships in 4-12 days

0

6

Ariens 03816351

WLDT, LH STEERING BAR

$178.99

$

Usually ships in 4-12 days

0

7

Ariens 03818251

PLATE, HANDLE HEIGHT

$

$

Not available

8

Ariens 00180543

TUBE, RD .750 X .179 X 4.69 Y

$

$

Not available

9

Ariens 03818051

WLDT, RH STEERING HANDLE

$

$

Not available

9

Ariens 03818151

WLDT, LH STEERING HANDLE

$

$

Not available

10

Ariens 03819251

PLATE, BENT

$

$

Not available

11

Ariens 00180617

FOAM GRIP

Note: (Serial Number 101 - 2499)

$37.99

$

In Stock, only 2 left!

0

11

Ariens 04311900

GRIP, HANDLE

Note: (Serial Number 2500 and up)

$

$

Not available

12

Ariens 00180639

PLUG, 7/8" END

Note: (Serial Number 101 - 2499)

$

$

Not available

13

Ariens 00250356

EYEBOLT, 1/2-13X1.00X4.50 FL Y

$

$

Not available

14

Ariens 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05982000

@BLT-HEX .38-16X5.50 GR5 YWZC

$3.99

$

In Stock, only 2 left!

0

19

Ariens 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

20

Ariens 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

21

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 00967353

RING, RUE .375 X .054 X 1.254

$2.49

$

Usually ships in 4-12 days

0

25

Ariens 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, only 3 left!

0

26

Ariens 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

27

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 06549300

NUT-LK-TOP M8-1.25 YWZC

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 06820300

PIN-CLEV .375X1.38X1.14 YWZC

$

$

Not available

30

Ariens 06823200

PIN-CLEV .625X3.00X2.77 YWZC

$5.99

$

Usually ships in 4-12 days

0

31

Ariens 00180249

BALL JOINT, RH 5/16 MALE W/STD

$

$

Not available

32

Ariens 03816151

WLDT, RH STEERING BAR

$170.99

$

Usually ships in 4-12 days

0

32

Ariens 03816351

WLDT, LH STEERING BAR

$178.99

$

Usually ships in 4-12 days

0

33

Ariens 03816251

WLDT, HANDLE CONTROL RH

$

$

Not available

33

Ariens 03816451

WLDT, HANDLE CONTROL LH

$

$

Not available

34

Ariens 00180606

BALL JOINT, RH 5/16 FMAL W/STD

$

$

Not available

35

Ariens 00180961

WASHER, .400X1.27X.062 NYLON

$1.99

$

Usually ships in 4-12 days

0

36

Ariens 00252126

BUSHING, .750 X 1.00 X .750

$

$

Not available

37

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

38

Ariens 00967356

RING, RUE .625 X .072 X 1.690

$3.49

$

Usually ships in 4-12 days

0
