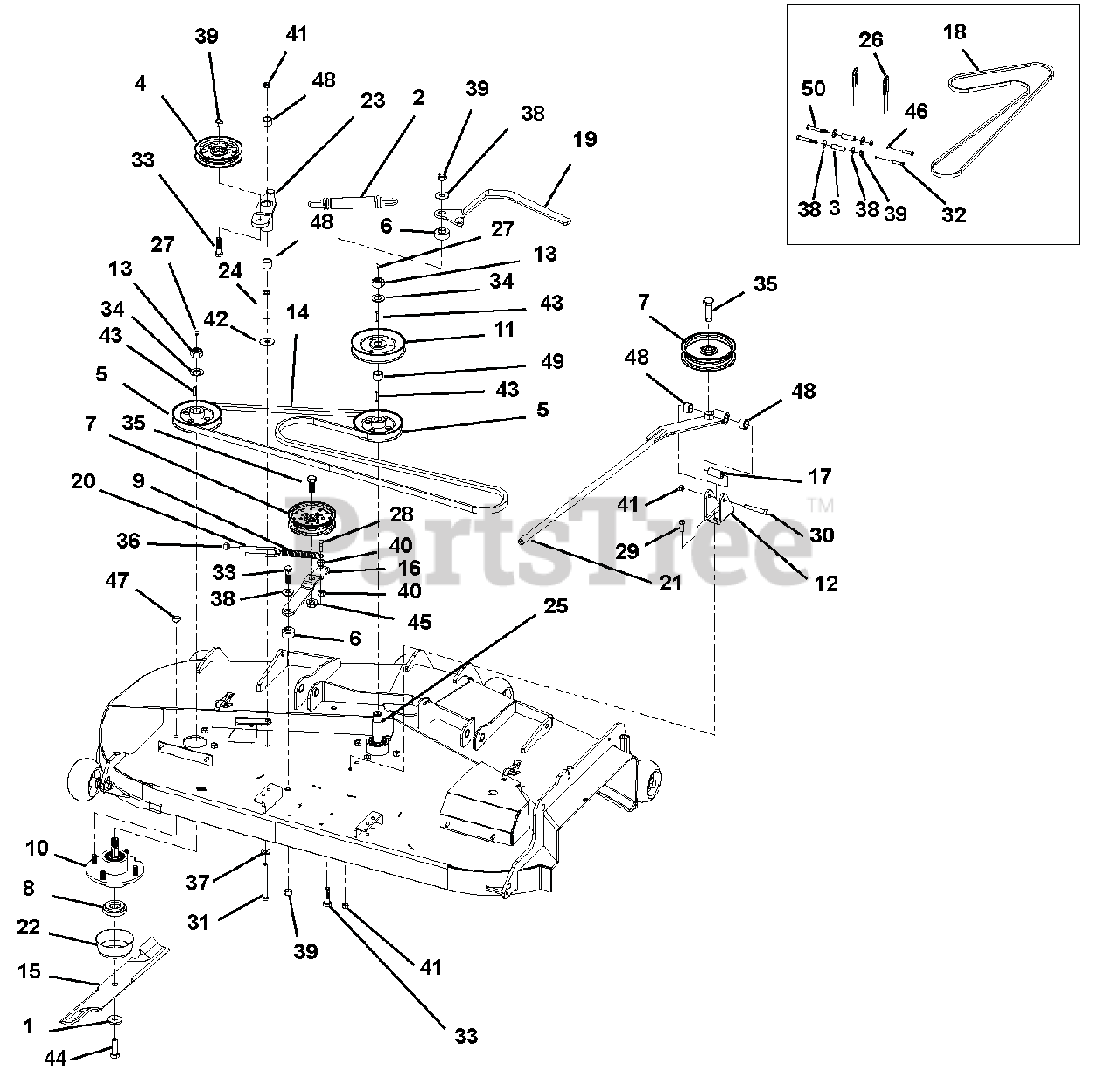

992807 (2760 S) - Ariens Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000111 & Above) Belt, Idlers and Blades Parts Diagram

Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki

Belt, Idlers and Blades Parts Diagram

  • Title

1

Ariens 00103906

WASHER, M14XM40XM4.5 FLAT Y

$9.49

$

Usually ships in 4-12 days

0

2

Ariens 00104657

SPRING, EXT 1.18X.177X7.50 Y

$28.99

$

In Stock, only 2 left!

0

3

Ariens 03856600

TUBE, RD .750 X.125W X 2.469

$18.99

$

Usually ships in 4-12 days

0

4

Ariens 00112614

PULLEY, V-BELT 5.00X.510 W/BRG

$71.99

$

In Stock, only 1 left!

0

5

Ariens 07300011

SHEAVE, 5.00 SPINDLE (1.00ID)
(Superseded to 07331167)

Note: (1.00 ID)

$76.99

$

In Stock, only 1 left!

0

6

Ariens AA160100

SPACER, .516 X .750 X .853 Y

$9.99

$

In Stock, only 3 left!

0

7

Ariens 00162146

PULLEY, FLAT 5.00X.635 W/BRG

$75.99

$

Usually ships in 4-12 days

0

8

Ariens 00162779

SPCR, BLADE

$35.99

$

In Stock, only 1 left!

0

9

Ariens 00162801

SPRING, EXT .750X.125X4.50 Y

$29.99

$

Usually ships in 4-12 days

0

10

Ariens 00181917

ASSY, SPINDLE 1"SHORT SHFT S/O

Note: (includes items 27 and 43) (outside spindles)

$426.99

$

Usually ships in 4-12 days

0

11

Ariens 00181823

PULLEY, V-BELT 6.57X1.00 W/KEY

Note: (992806)

$84.99

$

In Stock, only 1 left!

0

11

Ariens 00181911

PULLEY, V-BELT 7.21X1.00 W/KEY

Note: (992807)

$

$

Not available

12

Ariens 03823051

PLATE, PIVOT ANCHOR BENT

$51.99

$

Usually ships in 4-12 days

0

13

Ariens 00181818

NUT, 1-14 THIN PATTERN NYLOCK

$

$

Not available

14

Ariens 00112616

BELT, HB 123.0 OC PES OHR

Note: (992807)

$60.99

$

Usually ships in 4-12 days

0

14

Ariens 00181036

BELT, B112

Note: (992806)

$52.99

$

In Stock, only 3 left!

0

15

Ariens 00181026

BLADE, 20.940 X 1.00 LIFT

Note: (992807)

$30.99

$

In Stock, Qty 20+

0

15

Ariens 00181042

BLADE, 19.000 X 1.00 LIFT

Note: (992806)

$31.99

$

In Stock, only 3 left!

0

16

Ariens 03799551

ARM, BELT TENSIONER

Note: (992807)

$41.99

$

In Stock, only 1 left!

0

16

Ariens 03822951

ARM, BELT TENSION 54"

$46.99

$

Usually ships in 4-12 days

0

17

Ariens 00181062

SPANNER

$42.99

$

Usually ships in 4-12 days

0

18

Ariens 00181715

BELT, HB 114.9 EL AMD

$80.99

$

Usually ships in 4-12 days

0

19

Ariens 03799351

WLDT, TENSION ARM

$48.99

$

Usually ships in 4-12 days

0

20

Ariens 00181194

U-BOLT, RD .63X4.50X3/8-16SP Y

$6.99

$

Usually ships in 4-12 days

0

21

Ariens 03853600

ASSY, OFFSET ARM

Note: (includes item 48)

$142.99

$

Usually ships in 4-12 days

0

22

Ariens 00181288

CAP, SPINDLE

$19.99

$

Usually ships in 4-12 days

0

23

Ariens 03853500

ASSY, DECK IDLER

Note: (includes item 48)

$113.99

$

In Stock, only 1 left!

0

24

Ariens 00191347

TUBE, RD .750 X .156 X 3.05

$14.99

$

In Stock, only 1 left!

0

25

Ariens 00181910

ASSY, SPINDLE 1" LONG SHFT S/O

Note: (includes item 27) (center spindle)

$426.99

$

In Stock, only 2 left!

0

26

Ariens 00181485

U-BOLT, RD 1.00X3.00X3/8-16 Y

$11.99

$

Usually ships in 4-12 days

0

27

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 00960024

BOLT, 5/16-18X1.25 HEX 5 Y
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

29

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

31

Ariens 05981900

@BLT-HEX .38-16X4.25 GR5 YWZC
(Superseded to 05902024)

$4.49

$

Usually ships in 4-12 days

0

32

Ariens 05982100

@BLT-HEX .44-14X1.75 GR5 YWZC
(Superseded to 05901828)

$3.49

$

Usually ships in 4-12 days

0

33

Ariens 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

34

Ariens 00960711

WASHER, 1.062X1.75X0.100 Y

$3.49

$

In Stock, only 1 left!

0

35

Ariens 05968700

@BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

In Stock, only 3 left!

0

36

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

39

Ariens 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, only 3 left!

0

40

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.99

$

Usually ships in 4-12 days

0

42

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

43

Ariens 00966045

KEY, .250 X .250 X 1.00 SQ

$2.99

$

In Stock, only 2 left!

0

44

Ariens 05985600

BLT-HEX .56-12X1.75 HEX 8 YWZC

$5.99

$

Usually ships in 4-12 days

0

45

Ariens 06500509

SRATD FLNG HEX NUT 5/8-1 44412

$3.99

$

In Stock, only 3 left!

0

46

Ariens 06530004

NUT-FLANGED WHIZ .438-14 YWZC

$2.49

$

Usually ships in 4-12 days

0

47

Ariens 06500434

HEX NUT 7/16-20 UNF CP 15609

$3.99

$

Usually ships in 4-12 days

0

48

Ariens 00105546

BRG, SLV .753X.878X.750

$6.99

$

In Stock, only 4 left!

0

49

Ariens 00181822

SPACER, ?1.01 X ?1.25 X .635 Y

$

$

Not available

50

Ariens 00960122

BOLT, 1/2-13X3.50 HEX 5 Y
(Superseded to 05965800)

$4.99

$

In Stock, only 1 left!

0
