992807 (2760 S) - Ariens Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 - 000110) Mower Deck, Anti-Scalp Wheels And Belt Covers Parts Diagram

Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki

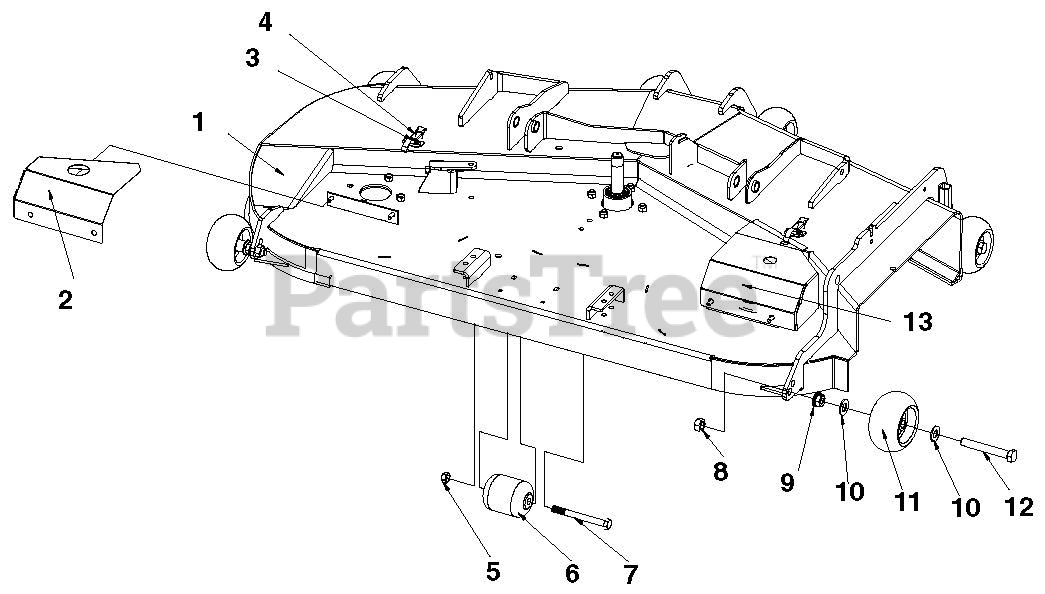

Mower Deck, Anti-Scalp Wheels And Belt Covers Parts Diagram

  • Title

1

Ariens 03852100

ASSY, 60" DECK WITH DECALS ACM

Note: (992907)

$

$

Not available

1

Ariens 03852500

ASSY, 66" DECK WITH DECALS ACM

Note: (992808)

$

$

Not available

2

Ariens 03799259

SHIELD, LH 60" DECK BELT

Note: (992907)

$64.99

$

In Stock, only 1 left!

0

2

Ariens 03821959

SHIELD, BELT LEFT 66"

Note: (992808)

$

$

Not available

3

Ariens 00180501

LATCH, OVERCENTER

$11.99

$

Usually ships in 4-12 days

0

4

Ariens 00104834

RIVET, POP .188 X .375 STEEL

$3.49

$

Usually ships in 4-12 days

0

5

Ariens AA964000

LOCKNUT, 1/2-13 CROWN Y
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

6

Ariens 00161573

WHEEL, GAUGE 3.00 X 3.88 SYM

$59.99

$

Usually ships in 4-12 days

0

7

Ariens 00960128

BOLT, 1/2-13X5.00 HEX 5 Y
(Superseded to 05962200)

$4.99

$

In Stock, Qty 20+

0

8

Ariens 00967392

LOCKNUT, 5/8-11 CROWN Y
(Superseded to 06518700)

$3.99

$

In Stock, Qty 6

0

9

Ariens 00967324

LOCKNUT, 5/8-11 WHIZ Y
(Superseded to 06500509)

$3.99

$

In Stock, only 3 left!

0

10

Ariens 00967087

WASHER, .625X1.31X.098 FLAT Y
(Superseded to 06442800)

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 00162701

WHEEL, GAUGE 5.00 X 2.52

$13.99

$

In Stock, only 3 left!

0

12

Ariens 00960167

BOLT, 5/8-11X4.50 HEX 5 Y
(Superseded to 05983100)

$6.99

$

In Stock, only 4 left!

0

13

Ariens 03799159

SHIELD, RH 54" & 60" BELT

Note: (992907)

$77.99

$

Usually ships in 4-12 days

0

13

Ariens 03822059

SHEILD, BELT RH 66"

Note: (992808)

$

$

Not available
