992807 (2760 S) - Ariens Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 - 000110) Clutch And Belt Parts Diagram

Pro-Zoom 60" Zero-Turn Mower, 27hp Kawasaki

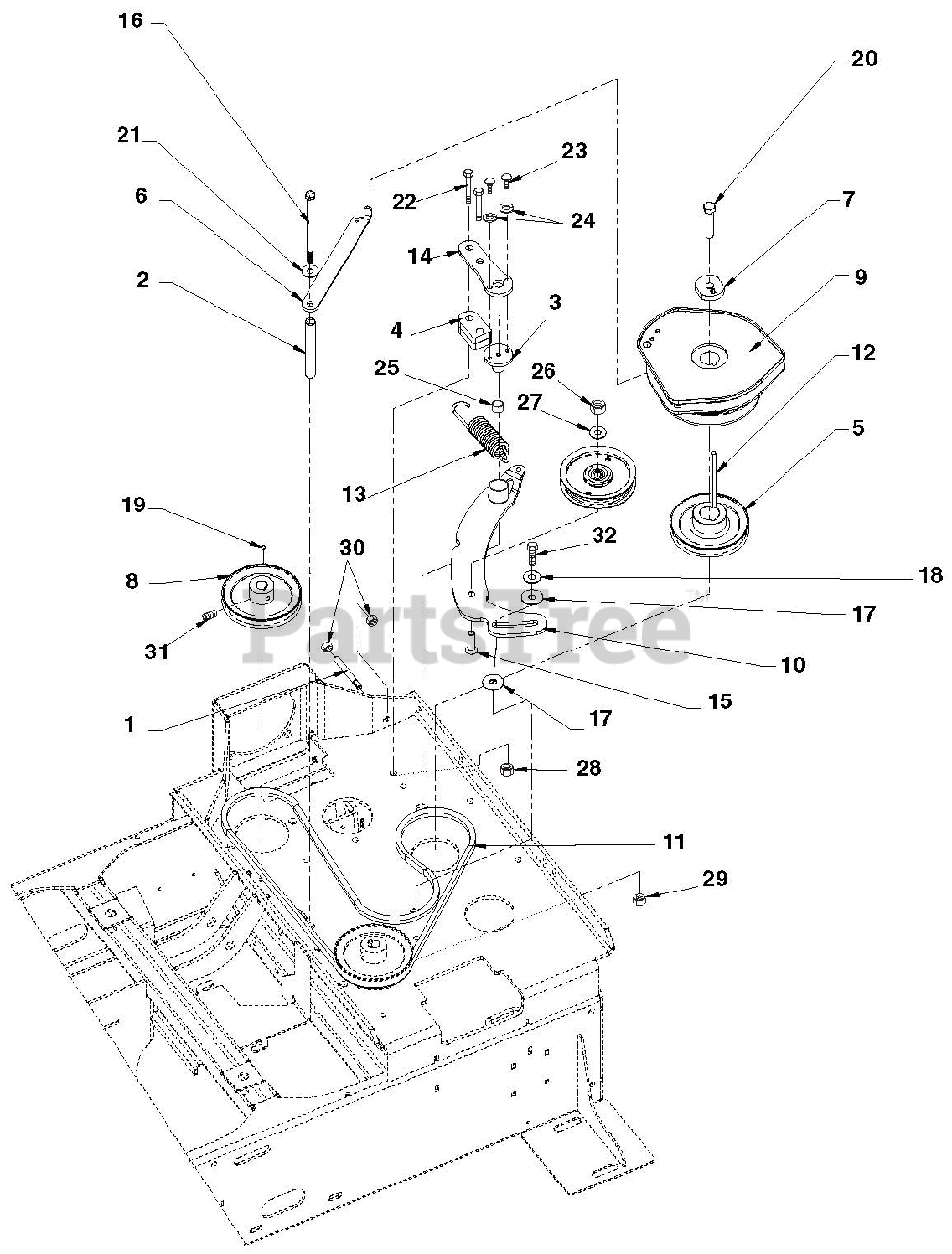

Clutch And Belt Parts Diagram

  • Title

1

Ariens 00104024

ROD, THREADED ADJUSTMENT

$24.99

$

Usually ships in 4-12 days

0

2

Ariens 03821751

TUBE, RD .625 X .120 X 4.50

$55.99

$

In Stock, only 1 left!

0

3

Ariens 03791600

PIN, TENSIONER PIVOT

$77.99

$

In Stock, only 1 left!

0

4

Ariens 03791351

PLATE, SPACER - PUMP TESIONER

$25.99

$

In Stock, only 1 left!

0

5

Ariens 00180641

PULLEY, V-BELT 5.00X1.13 W/KEY

$91.99

$

In Stock, only 1 left!

0

6

Ariens 03821651

PLATE, CLUTCH STOP

$45.99

$

In Stock, only 1 left!

0

7

Ariens 03821851

WASHER, CLUTCH UNIVERSAL

$28.99

$

Usually ships in 4-12 days

0

8

Ariens 00180836

PULLEY, V-BELT 4.78X17MM W/KEY

$56.99

$

In Stock, only 1 left!

0

9

Ariens 00180923

CLUTCH, ELECT-OGURA, GT3.5

$517.99

$

Usually ships in 4-12 days

0

10

Ariens 03791151

WLDT, Z PUMP BELT IDLER ARM

$129.99

$

Usually ships in 4-12 days

0

11

Ariens 00181727

BELT, HA 64.2 EL AMD
(Superseded to 04557400)

Note: (Hydraulic Pump)

$52.99

$

In Stock, only 1 left!

0

12

Ariens 00180962

KEY, .250 X .250 X 4.62 SQ

$

$

Not available

13

Ariens 00180999

SPRING, EXT 1.19X.162X4.25 Y

$34.99

$

Usually ships in 4-12 days

0

14

Ariens 03791251

PLATE, PUMP TENSIONER TOP

$25.99

$

In Stock, only 1 left!

0

15

Ariens 05901332

BOLT, 3/8-16X1.50 FLAT SOC Y

$5.99

$

Usually ships in 4-12 days

0

16

Ariens 00960063

BOLT, 3/8-16X5.50 HEX 5 Y
(Superseded to 05982000)

$3.99

$

In Stock, only 2 left!

0

17

Ariens 00180961

WASHER, .400X1.27X.062 NYLON

$1.99

$

Usually ships in 4-12 days

0

18

Ariens 06400902

WASHER, .406X1.00X.060 FLAT Y

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 00966053

KEY, M5 X M5 X M36 RD

$3.49

$

Usually ships in 4-12 days

0

20

Ariens 00967337

BOLT, 7/16-20X2.25 HEX 5 Y
(Superseded to 05953100)

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

22

Ariens 00960050

BOLT, 3/8-16X2.00 HEX 5 Y
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

23

Ariens AA960000

BOLT, 1/4-20X.500 HEX 5 Y
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

24

Ariens AA960600

WASHER, .250 MED SPRG LOCK Y

$

$

Not available

25

Ariens 00105546

BRG, SLV .753X.878X.750

$6.99

$

In Stock, only 4 left!

0

26

Ariens 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 00164038

WASHER, .390X.750X.080 FLAT Y

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

29

Ariens 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

31

Ariens 00967343

SET SCREW, 5/16-18X.625 SQ CUP

$1.49

$

In Stock, only 1 left!

0

32

Ariens 05901331

BOLT, 3/8 X.500X5/16-18 SLD Y
(Superseded to 07070114)

$5.99

$

Usually ships in 4-12 days

0
