992806 (2754 S) - Ariens Pro-Zoom 54" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 & Above) Deck Mount Parts Diagram

Pro-Zoom 54" Zero-Turn Mower, 27hp Kawasaki

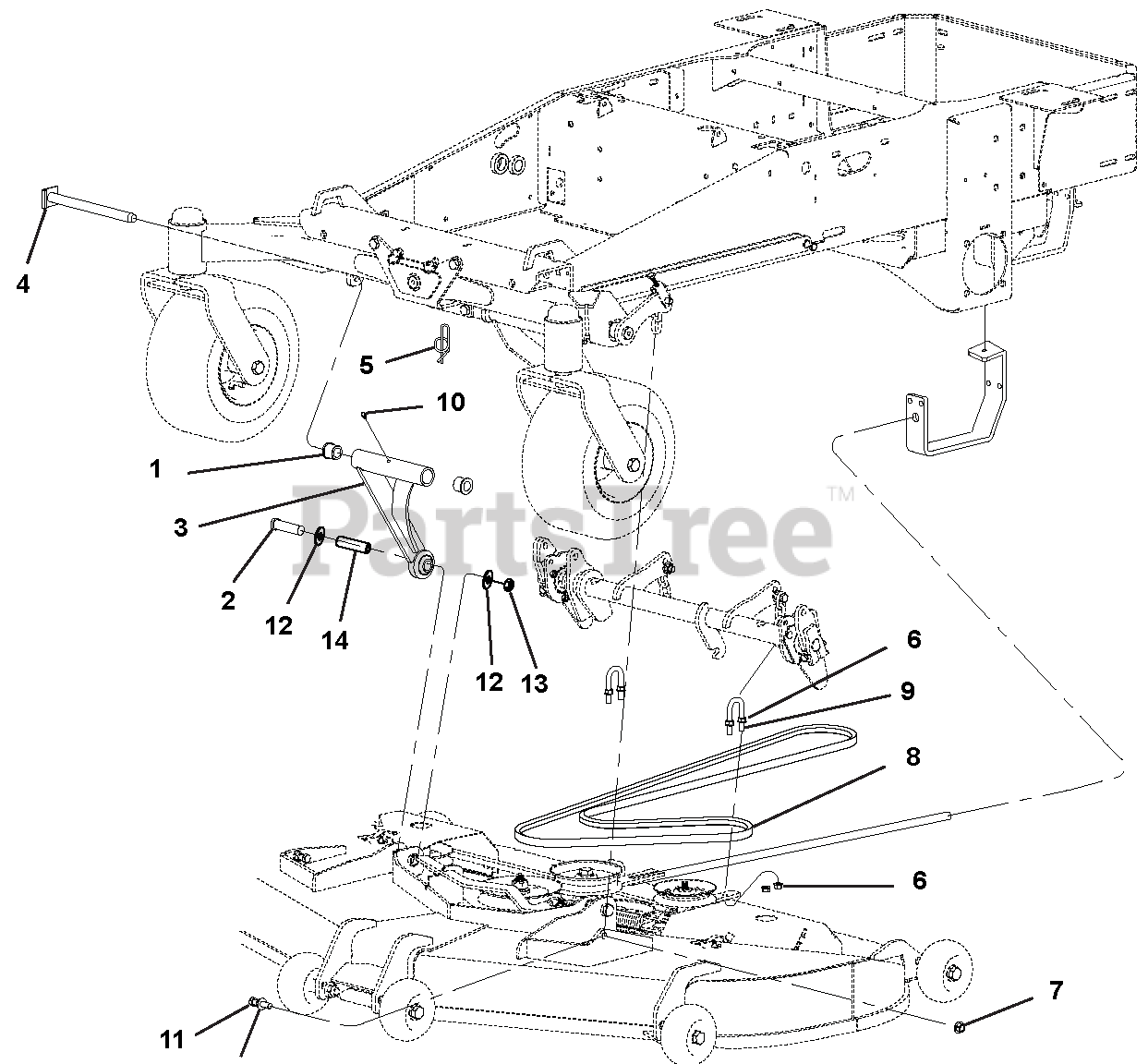

Deck Mount Parts Diagram

  • Title

1

Ariens 00150079

BRG, FLG .750X1.13X1.00

$9.49

$

Usually ships in 4-12 days

0

2

Ariens 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

3

Ariens 03814051

WLDT, DECK PULL 11.5

$196.99

$

Usually ships in 4-12 days

0

4

Ariens 00180224

PIN, PVT .750X9.75X9.20 XDRL U

$

$

Not available

5

Ariens 00967357

RING, RUE .750 X .080 X 2.081

$

$

Not available

6

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06530004

NUT-FLANGED WHIZ .438-14 YWZC

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 00181715

BELT, HB 114.9 EL AMD

Note: (Clutch to Deck)

$80.99

$

Usually ships in 4-12 days

0

9

Ariens 00181485

U-BOLT, RD 1.00X3.00X3/8-16 Y

$11.99

$

Usually ships in 4-12 days

0

10

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

11

Ariens 05982100

@BLT-HEX .44-14X1.75 GR5 YWZC
(Superseded to 05901828)

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

13

Ariens 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, only 3 left!

0

14

Ariens 03856600

TUBE, RD .750 X.125W X 2.469

$18.99

$

Usually ships in 4-12 days

0
