992700 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler Command (SN: 000172 & Above) Battery And Fuel Parts Diagram

Pro-Vac Vacuum, 18hp Kohler Command

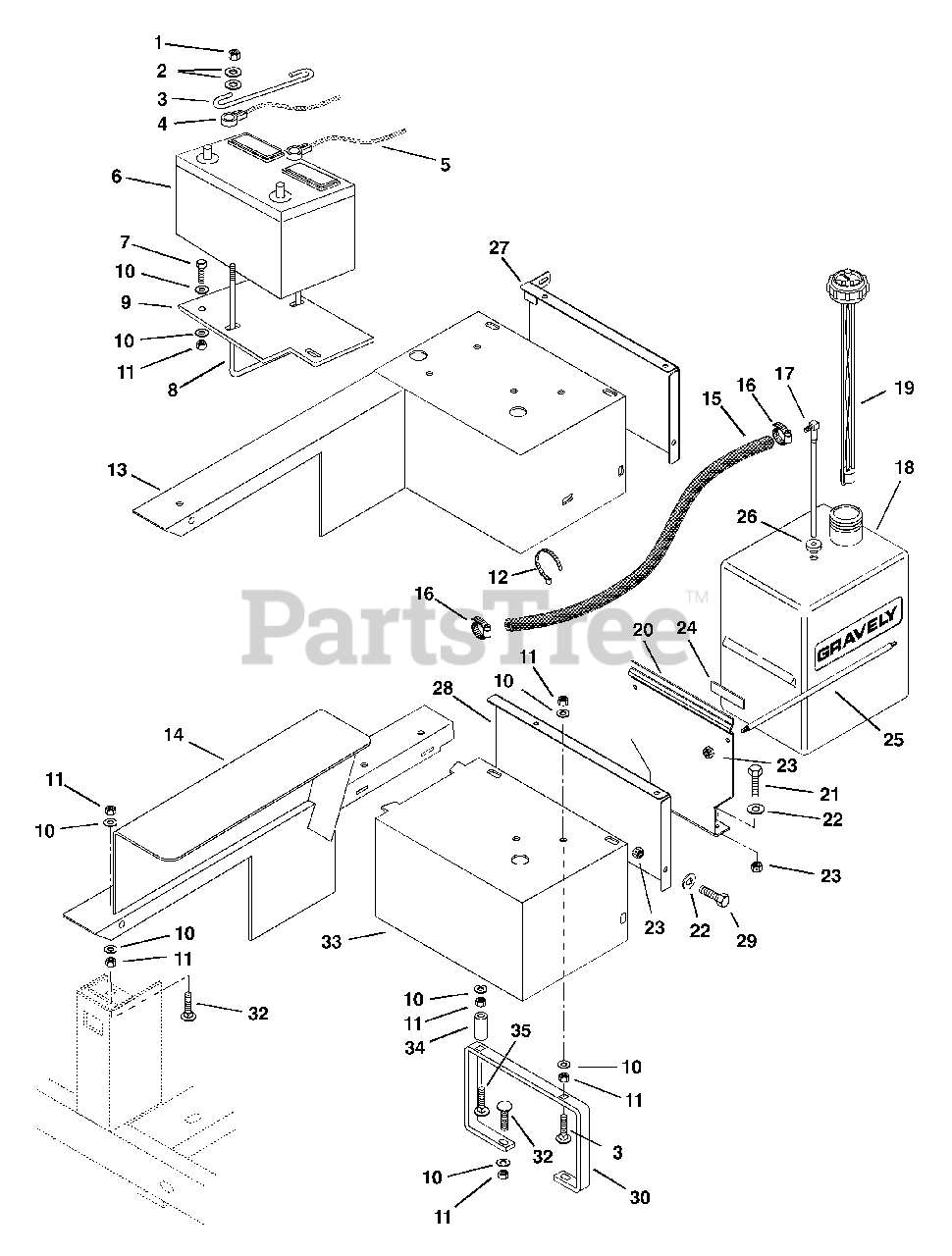

Battery And Fuel Parts Diagram

  • Title

1

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 051098

Rod, Hold Down
(Superseded to 09030300)

$

$

Not available

4

Gravely 04202100

Battery Cable
(Superseded to 02087400)

$

$

Not available

5

Gravely 04202000

Ground Cable
(Superseded to 02078300)

$

$

Not available

6

Gravely 04202200

Battery
(Superseded to 02078500)

$

$

Not available

7

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 050781

Rod, Battery
(Superseded to 09030200)

$252.99

$

Usually ships in 4-12 days

0

9

Gravely 04205251

Mounting Plate
(Superseded to 02953051)

$

$

Not available

10

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 04003800

Tie Wrap

$

$

Not available

13

Gravely 09270700

Guard, Belt Weldment
(Superseded to 02088953)

Note: (Model 700)

$

$

Not available

14

Gravely 09271100

Guard-Belt Weldment

Note: (Model 701)

$

$

Not available

15

Gravely 021134

Gas Line-Bulk .25 ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 047614

Fitting, Tank
(Superseded to 08983100)

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 047612

Tank, Fuel
(Superseded to 08983000)

$

$

Not available

19

Gravely 047615

Gauge, Fuel
(Superseded to 08983200)

$47.99

$

Usually ships in 4-12 days

0

20

Gravely 09270300

Tank Bracket
(Superseded to 09270351)

$20.99

$

Usually ships in 4-12 days

0

21

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 00915900

Gasket

$

$

Not available

25

Gravely 09037800

Rod, Tank

$29.99

$

Usually ships in 4-12 days

0

26

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

27

Gravely 09270900

Plate, End
(Superseded to 02089353)

Note: (Model 700)

$

$

Not available

28

Gravely 09271400

Plate, End

Note: (Model 701)

$9.49

$

Usually ships in 4-12 days

0

29

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 09270800

Stand-Belt Guard

Note: (Model 700)

$

$

Not available

30

Gravely 09271300

Stand-Belt Guard
(Superseded to 09271351)

Note: (Model 701)

$17.99

$

Usually ships in 4-12 days

0

31

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

32

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

33

Gravely 09271200

Cover, Shaft

Note: (Model 701)

$

$

Not available

34

Gravely 09271600

Spacer .493 x .675 x 2.00

Note: (Model 701)

$5.99

$

Usually ships in 4-12 days

0

35

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

Note: (Model 700)

$2.49

$

In Stock, only 3 left!

0

35

Gravely 05961100

Bolt-Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

Note: (Model 701)

$3.99

$

In Stock, Qty 20+

0
