992610 (GCHKW2352S) - Great Dane Chariot 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) Relays Parts Diagram

Chariot 52" Zero-Turn Mower, 23hp Kawasaki

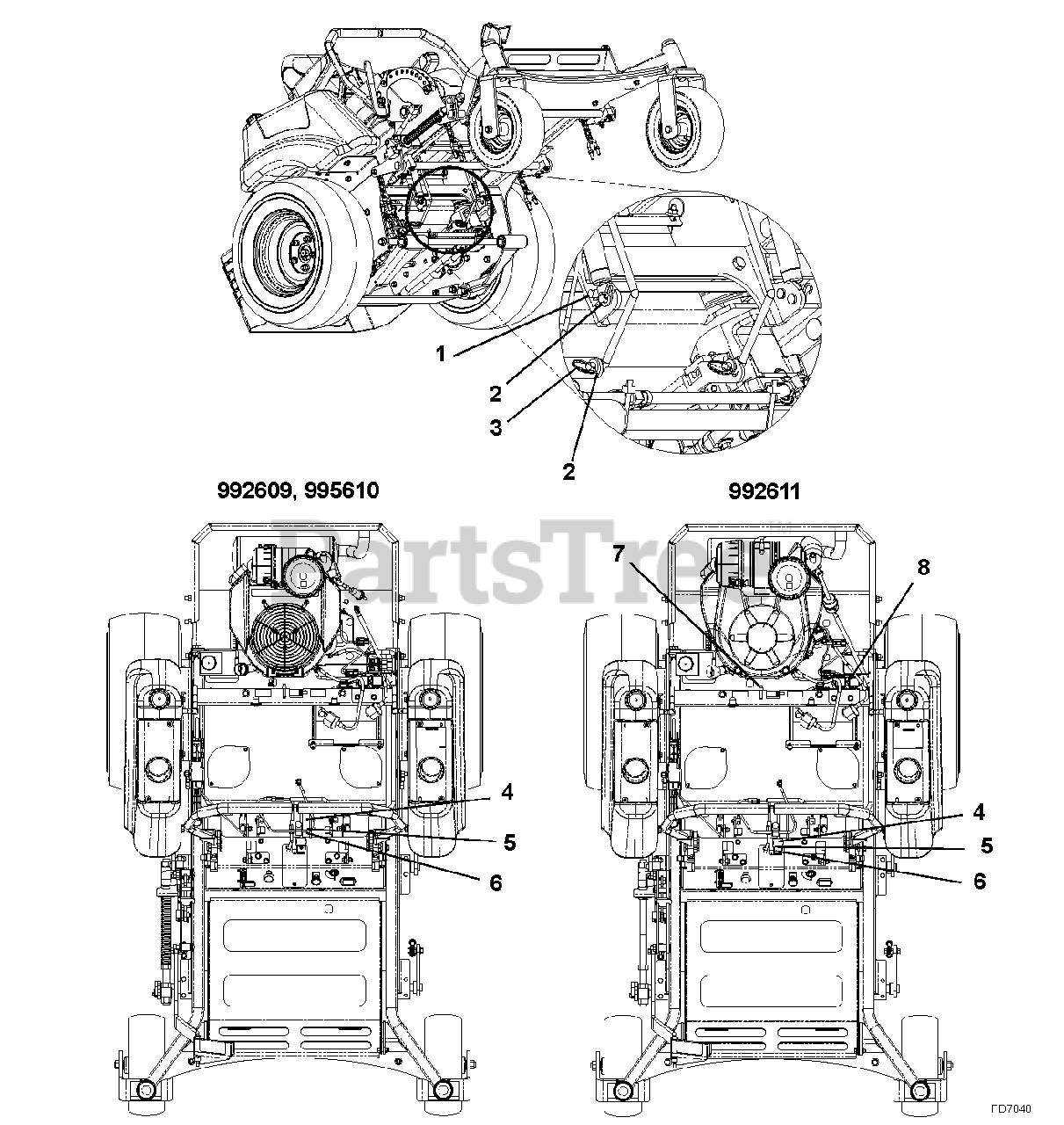

Relays Parts Diagram

  • Title
1

Ariens J16931

PIN, HAR .094X1.53 5/16-1/2 Y

$

$

Not available

2

Ariens 24M7106

WASHER,ISO8738,10-160HV-ZN

$

$

Not available

3

Ariens M88183

RING, LOCKING

$

$

Not available

4

Ariens 00200302

HARNESS. SEAT RELAY

$

$

Not available

5

Ariens 00963101

SCREW, 12-24 SELF DRILLING

$

$

Not available

6

Ariens 00102770

RELAY, ISO MINI ELEC.

$21.99

$

Usually ships in 4-12 days

0

7

Ariens 00967001

CABLE TIE, .31 X 14.6 - BLACK

$

$

Not available

8

Ariens AM123716

RELAY, SEALED W/BRACKET

$35.99

$

Usually ships in 4-12 days

0
