992609 (GCHKW1948S) - Great Dane Chariot 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Seat 09 Parts Diagram

Chariot 48" Zero-Turn Mower, 19hp Kawasaki

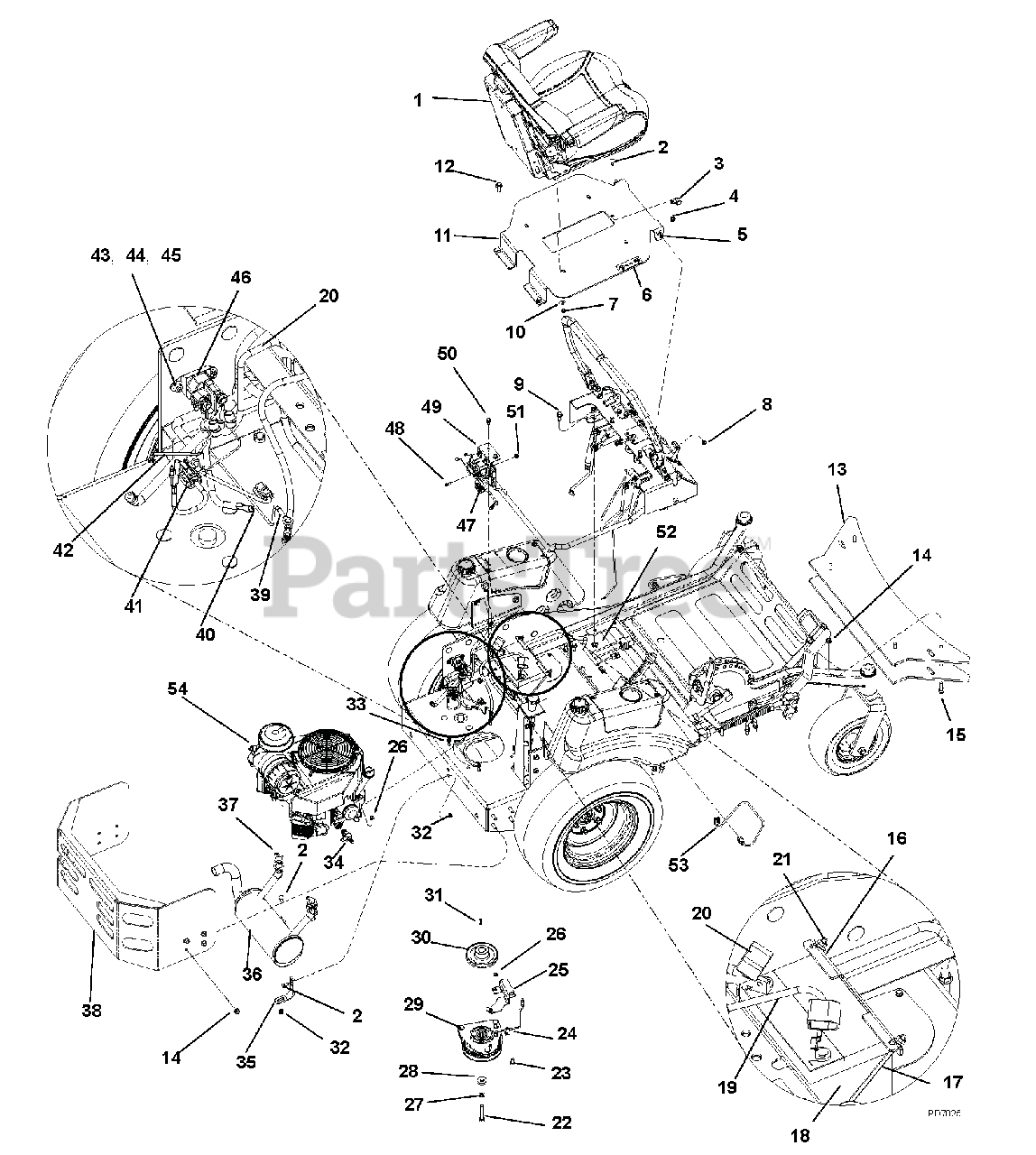

Seat 09 Parts Diagram

  • Title

1

Ariens 00192068

SEAT, FULL SUSPENSION, NO LOGO

$

$

Not available

2

Ariens 03M7184

BOLT, M8X1.25X20 CRG 8.8 Y

$

$

Not available

3

Ariens E53830

P-CLIP, .750 INSULATED

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 14M7396

LOCKNUT, M8X1.25 NYLOC FLG 10Y

$

$

Not available

5

Ariens 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens TCU14862

LABEL - PARK BRAKE DIRECTION

$

$

Not available

7

Ariens D14081

LOCKNUT, 5/16-18 NYLOC Y

$

$

Not available

8

Ariens K40003

NUT, 3/8 LOCK

$

$

Not available

9

Ariens 19M7785

SCREW,HEX,FL,JDS123,M10X1.5X25

$

$

Not available

10

Ariens 24H1887

WASHER, .344X1.00X.134 FLAT Y

$

$

Not available

11

Ariens 03865463

PLATE, SEAT GD

$

$

Not available

12

Ariens 19M7786

SCREW,HEX,FL,JDS123,M10X1.5X30

$

$

Not available

13

Ariens 03869051

PLATE, WEIGHT BLK

$

$

Not available

14

Ariens 14M7518

LOCKNUT,FL,ISO7044,M10X1.5-10-

$3.49

$

Usually ships in 4-12 days

0

15

Ariens 19M8162

SCREW,HEX,FL,JDS121,M10X1.5X40

$

$

Not available

16

Ariens GDU10204

HOLDER, BATTERY

$

$

Not available

17

Ariens D23047

J BOLT

$

$

Not available

18

Ariens 00181779

BATTERY, 12V-U1-CCA400MIN

$

$

Not available

19

Ariens 00180843

CABLE, BATTERY - 20" GROUND

$

$

Not available

20

Ariens D28118

CABLE, BATTERY POSITIVE

$

$

Not available

21

Ariens H122207

NUT-1/4" FLANGE PREVAILING TOR

$

$

Not available

22

Ariens 00967394

BOLT, 7/16-20X2.75 HEX 5 Y

$

$

Not available

23

Ariens 00960078

BOLT, 7/16-14X.750 HEX 5 Y

$

$

Not available

24

Ariens 00967001

CABLE TIE, .31 X 14.6 - BLACK

$

$

Not available

25

Ariens 00200666

PLATE, CLUTCH DOG

$51.99

$

Usually ships in 4-12 days

0

26

Ariens 00964021

LOCKNUT, 5/16-18 CROWN Y
(Superseded to 06530800)

$5.99

$

Usually ships in 4-12 days

0

27

Ariens 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$2.99

$

In Stock, Qty 11

0

28

Ariens D18056

SPACER, .468 X 1.38 X .375 Y

$20.99

$

Usually ships in 4-12 days

0

29

Ariens 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$362.99

$

In Stock, only 2 left!

0

30

Ariens 00200318

PULLEY, V-BELT 4.78PD X 1.000

$56.99

$

Usually ships in 4-12 days

0

31

Ariens D18145

KEY, .250 X .250 X .995 TPR

$

$

Not available

32

Ariens H137328

LOCKNUT,M8X1.25,FLANGED ZN

$

$

Not available

33

Ariens 00960026

BOLT, 5/16-18X1.75 HEX 5 Y
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

34

Ariens TCA16240

FITTING, OIL DRAIN #

$

$

Not available

35

Ariens D22236

BRACKET, MUFFLER

$

$

Not available

36

Ariens 00200822

MUFFLER, CHARIOT ACS KAI

$

$

Not available

37

Ariens M135790

GASKET, MUFFLER

$

$

Not available

38

Ariens 03889863

BUMPER, REAR GDKW

$

$

Not available

39

Ariens GDA10110

WIRE, GROUND

$

$

Not available

40

Ariens 00180842

CABLE, 12" STARTER

$15.99

$

In Stock, only 1 left!

0

41

Ariens GDA10055

HARNESS, PIGTAIL

$

$

Not available

42

Ariens 00200924

FUSIBLE LINK, 10"

$15.99

$

Usually ships in 4-12 days

0

43

Ariens 00960001

BOLT, 1/4-20X.750 HEX 5 Y

$

$

Not available

44

Ariens 00964031

LOCKNUT, 1/4-20 CENTER Y

$

$

Not available

45

Ariens 00960700

MANUAL,OWNERS RAPID XZ TRACTOR

$

$

Not available

46

Ariens 03551000

SOLENOID

$34.99

$

In Stock, Qty 14

0

47

Ariens AM123716

RELAY, SEALED W/BRACKET

$35.99

$

Usually ships in 4-12 days

0

48

Ariens 19M7775

SCREW,FL,JDS123,M6X1X16-10.9-Z

$

$

Not available

49

Ariens GDU10170

BRACKET, ELECTRIC MOUNTING

$

$

Not available

50

Ariens 19M7865

SCREW,HEX,FL,JDS123,M8X1.25X16

$

$

Not available

51

Ariens 14M7397

LOCKNUT,FL,ISO7043,M6X1.00-10-
(Superseded to 06500729)

$2.99

$

Usually ships in 4-12 days

0

52

Ariens E63526

LOCKNUT, M10X1.50 WHIZ GR10 Y

$

$

Not available

53

Ariens D38018

HARNESS, WIRING

$

$

Not available

54

Ariens 00200675

ENGINE, KAWASAKI 19HP FH580V

$

$

Not available
