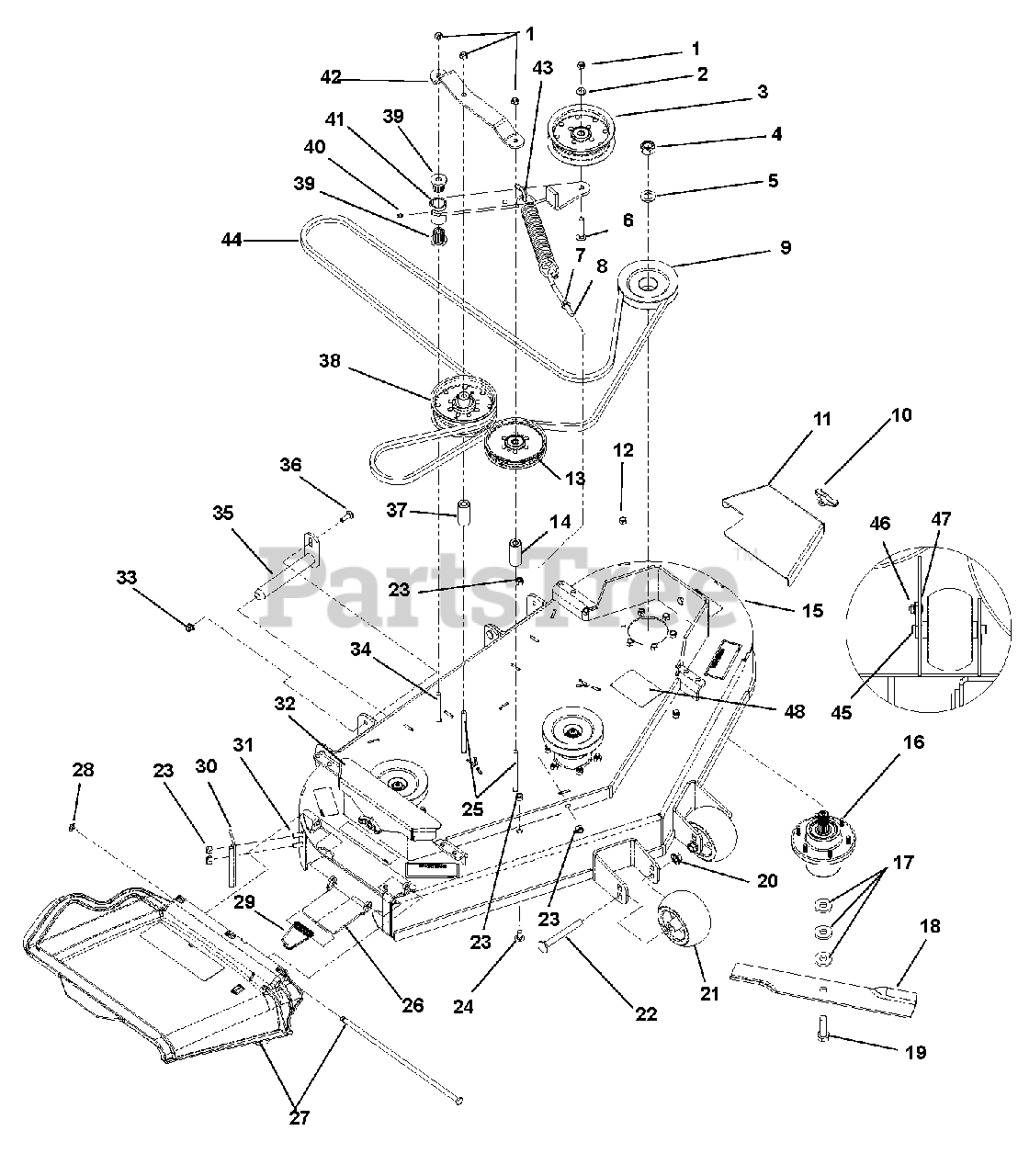

992609 (GCHKW1948S) - Great Dane Chariot 48" Zero-Turn Mower, 19hp Kawasaki (SN: 000101 & Above) Mower Deck 48 Parts Diagram

Chariot 48" Zero-Turn Mower, 19hp Kawasaki

Mower Deck 48 Parts Diagram

  • Title

1

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

2

Ariens 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Ariens D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$79.99

$

In Stock, only 1 left!

0

4

Ariens 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$

$

Not available

6

Ariens 03H1658

BOLT, 3/8-16X2.25 CRG 5 Y
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

7

Ariens N10215

LOCKNUT, 3/8-16 WHIZ Y

$

$

Not available

8

Ariens D23058

J-BOLT, 3/8-16 X 4.00 Y

$

$

Not available

9

Ariens 03828700

PULLEY, SPLINE SPINDLE LSE

$

$

Not available

10

Ariens M119352

KNOB, 3/8-16 INSERT

$3.99

$

In Stock, only 4 left!

0

11

Ariens 03870763

COVER, BELT LH 48

$

$

Not available

12

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

13

Ariens D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

14

Ariens GDU10181

SPACER, .437X1.00X2.50 SMLS

$

$

Not available

15

Ariens 03870300

ASSY, DECK W/DECALS 48 GD

$

$

Not available

16

Ariens 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$262.99

$

In Stock, only 2 left!

0

17

Ariens D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

18

Ariens GDU10230

BLADE, 16.500 X .80 LIFT

$28.99

$

In Stock, Qty 17

0

19

Ariens 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

20

Ariens E62934

LOCKNUT 1/2 W/FLANGE

$

$

Not available

21

Ariens TCU18744

WHEEL, GAGE

$14.99

$

In Stock, only 4 left!

0

22

Ariens 03H1853

BOLT, 1/2-13X4.50 CRG 5 Y

$

$

Not available

23

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

24

Ariens 00963033

BOLT, 3/8-16X.750 CRG 5 LN Y

$

$

Not available

25

Ariens 03H1838

BLT-RDHDSQNK .38-16X5.0 YWZC

$

$

Not available

26

Ariens 00200095

BRKT, SUPPORT DISCHARGE CHUTE

$25.99

$

Usually ships in 4-12 days

0

27

Ariens TCA16387

CHUTE DISCHARGE ASSY #

$35.99

$

In Stock, only 2 left!

0

28

Ariens H141123

RETAINER #

$

$

Not available

29

Ariens 03393800

SPRING, TORSION .460"X.138"

$

$

Not available

30

Ariens 03754063

PLATE, EXTENDER GD DECK

$

$

Not available

31

Ariens 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

32

Ariens 03870863

COVER, BELT RH 48

$

$

Not available

33

Ariens 14M7396

LOCKNUT, M8X1.25 NYLOC FLG 10Y

$

$

Not available

34

Ariens 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

35

Ariens TCA13292

PIN, WELDED

$

$

Not available

36

Ariens 03M7185

BOLT,RH,SQNECK,JDS137,M8X1.25X

$

$

Not available

37

Ariens GDU10180

SPACER, .437X1.00X2.25 SMLS

$

$

Not available

38

Ariens TCA14548

PULLEY, FLAT 5.25X.375 W/BRG

$129.99

$

In Stock, only 1 left!

0

39

Ariens TCU14540

BRG, FLG M10XM25XM27 FLUTED

$17.99

$

In Stock, only 2 left!

0

40

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

41

Ariens TCA15346

ARM, IDLER *

$142.99

$

In Stock, only 1 left!

0

42

Ariens GDU10119

STRAP, IDLER PULLEY

$

$

Not available

43

Ariens D28025

SPRING, DECK IDLER

$29.99

$

In Stock, only 1 left!

0

44

Ariens TCU16092

BELT

$

$

Not available

45

Ariens GDA10103

PIVOT, RETAINER WELD

$55.99

$

In Stock, Qty 7

0

46

Ariens H122207

NUT-1/4" FLANGE PREVAILING TOR

$

$

Not available

47

Ariens 00963095

BOLT, 1/4-20X.750 CRG 5 Y
(Superseded to 06219900)

$0.99

$

In Stock, Qty 13

0

48

Ariens GDU10262

DECAL, BELT PATH (48,52,61)

$

$

Not available
