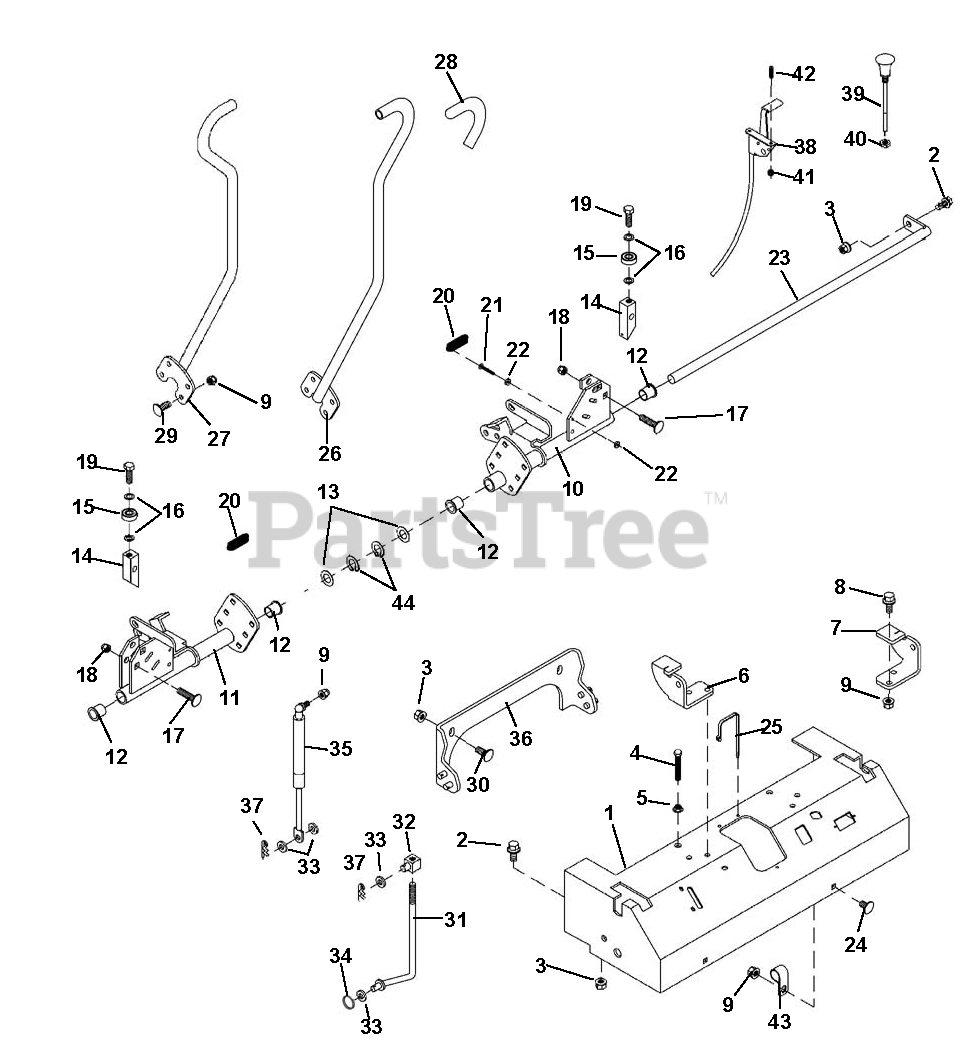

992600 (GCKW2352S) - Great Dane Chariot 52" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 & Above) Console and Control Assembly Parts Diagram

Chariot 52" Zero-Turn Mower, 23hp Kawasaki

Console and Control Assembly Parts Diagram

  • Title

1

Ariens 00201338

CONSOLE PLATE W/DECALS S/O

$

$

Not available

2

Ariens 19M7785

SCREW,HEX,FL,JDS123,M10X1.5X25

$

$

Not available

3

Ariens E63526

LOCKNUT, M10X1.50 WHIZ GR10 Y

$

$

Not available

4

Ariens D14133

CAP SCREW, HEX HEAD

$

$

Not available

5

Ariens N10217

SPINLOCK NUT - 1/4

$

$

Not available

6

Ariens GDU10046

BRACKET, RH SEAT PLATE

$

$

Not available

7

Ariens GDU10045

BRACKET, LH SEAT PLATE

$

$

Not available

8

Ariens 19M7867

SCREW,HEX,FL,JDS123,M8X1.25X25

$

$

Not available

9

Ariens 14M7396

LOCKNUT, M8X1.25 NYLOC FLG 10Y

$

$

Not available

10

Ariens GDA10097

PIVOT, CONTROL L.H.

$

$

Not available

11

Ariens GDA10098

PIVOT, CONTROL R.H.

$

$

Not available

12

Ariens M44508

BUSHING, NYLON

$

$

Not available

13

Ariens 00200397

WASHER, .627X1.09X.030 THST Y

$

$

Not available

14

Ariens GDU10253

ARM, CONTROL

$

$

Not available

15

Ariens AA34134

BRG, BAL M10XM26XM8 - 60002RS

$

$

Not available

16

Ariens 24M7388

SHIM, CIRCULAR

$

$

Not available

17

Ariens 03M7195

BOLT,RH,SQNECK,JDS137,M10X1.5X

$

$

Not available

18

Ariens 14M7517

LOCKNUT, M10X1.50 NYLOC Y

$

$

Not available

19

Ariens 19H1936

BOLT, 3/8 X .75 A17D ZINC HEX

$

$

Not available

20

Ariens GX10707

SPRING, PARK BRAKE

$

$

Not available

21

Ariens D14236

SCREW, PAN HEAD 10-24X1.25 SS

$

$

Not available

22

Ariens 14H778

NUT, 3/16 HEX MACHINE 1020 ZIN

$

$

Not available

23

Ariens TCA13253

PIVOT,CONTROL SHAFT-PLATED

$

$

Not available

24

Ariens 03M7184

BOLT, M8X1.25X20 CRG 8.8 Y

$

$

Not available

25

Ariens 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

26

Ariens GDA10081

WLDT, CONTROL LEVER LH

$

$

Not available

27

Ariens GDA10080

WLDT, CONTROL LEVER RH

$

$

Not available

28

Ariens D18093

GRIP, CONTROL
(Superseded to 07500222)

$7.99

$

In Stock, only 1 left!

0

29

Ariens 03M7184

BOLT, M8X1.25X20 CRG 8.8 Y

$

$

Not available

30

Ariens 19H3693

SCREW, HEX FLANGE HEAD

$

$

Not available

31

Ariens TCU17400

ROD, CONTROL

$

$

Not available

32

Ariens D33002

SWIVEL, 3/8-24

$10.99

$

Usually ships in 4-12 days

0

33

Ariens 24M7388

SHIM, CIRCULAR

$

$

Not available

34

Ariens M88183

RING, LOCKING

$

$

Not available

35

Ariens TCA15322

ABSORBER, ASM. WITH BALL STUD

$

$

Not available

36

Ariens GDA10136

WLDT, DAMPNER BRACKET

$

$

Not available

37

Ariens J16931

PIN, HAR .094X1.53 5/16-1/2 Y

$

$

Not available

38

Ariens 200591

ACCELERATOR

$

$

Not available

39

Ariens D38146

CABLE, CHOKE57.0"

$

$

Not available

40

Ariens 14H1080

NUT, .375 UNF2B HEX JDS14 8 ZN

$

$

Not available

41

Ariens M63431

#8.32 ELASTIC STOP NUT

$

$

Not available

42

Ariens 21H1158

SCREW,.164X.500 ZN RD HD MACH

$

$

Not available

43

Ariens E53830

P-CLIP, .750 INSULATED

$3.99

$

Usually ships in 4-12 days

0

44

Ariens P46402

RING, RETAINING

$

$

Not available
