992530 (Pro-Turn 560) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX EFI (SN: 010000 & Above) Electrical - Kawasaki - EFI with Air Ride Seat Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX EFI

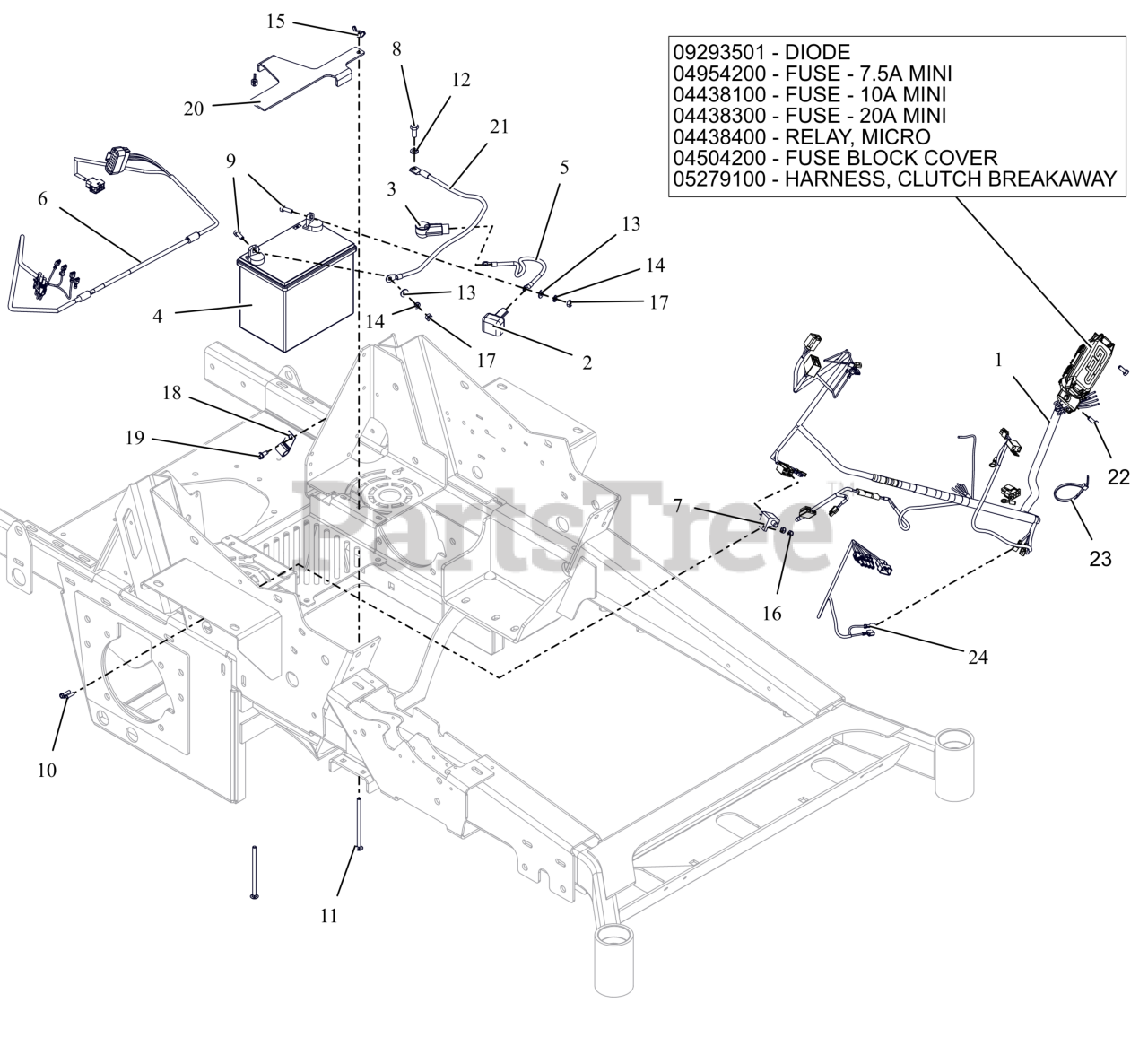

Electrical - Kawasaki - EFI with Air Ride Seat Parts Diagram

  • Title

1

Gravely 09478900

HARNESS- WIRE PT300 MAIN

$232.99

$

Usually ships in 4-12 days

0

1

Gravely 09293501

DIODE, CONNECTOR SHELL

Note: Component Service Part

$11.99

$

Usually ships in 4-12 days

0

1

Gravely 04954200

FUSE, 7.5 AMP MINI-ATC

Note: Component Service Part

$

$

Not available

1

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

1

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: Component Service Part

$

$

Not available

1

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part

$

$

Not available

1

Gravely 04504200

COVER, HARNESS FUSE/RELAY MOD

Note: Component Service Part

$28.99

$

Usually ships in 4-12 days

0

1

Gravely 05279100

HARNESS, CLUTCH BREAKAWAY

Note: Component Service Part

$

$

Not available

2

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 07500401

BOOT, .65ID POS

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

5

Gravely 02727201

CABLE, STARTER 13.00"

$20.99

$

In Stock, only 1 left!

0

6

Gravely 09683600

HARNESS- EFI ENG ADAPTER PT300

$

$

Not available

7

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 2 left!

0

8

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

9

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 5

0

10

Gravely 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06200308

BLT, RHSN .25-20X4.50 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 8

0

13

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 18

0

14

Gravely 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, only 4 left!

0

15

Gravely 06500805

NUT, LK-WING .25-20 ZCC

$4.99

$

In Stock, only 2 left!

0

16

Gravely 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 5

0

17

Gravely 06500916

NUT-STD .250-20 G2 ZCC

$0.99

$

In Stock, Qty 5

0

18

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 07400135

SCR,TAP .25-20X.625 HWH ZCC

$2.49

$

In Stock, Qty 7

0

20

Gravely 09494851

HOLDDOWN- BATTERY

$

$

Not available

21

Gravely 30132400

CABLE- NEG 16.00 IN

$34.99

$

Usually ships in 4-12 days

0

22

Gravely 05902026

BLT, HEX M6-1X16 G8.8 ZCC

$0.99

$

In Stock, only 2 left!

0

23

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

24

Gravely 09683400

HARNESS- AIR RIDE SEAT

$45.99

$

Usually ships in 4-12 days

0
