992529 (Pro-Turn 360) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX EFI (SN: 010000 & Above) Fuel Tanks - Kawasaki FX850 EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX EFI

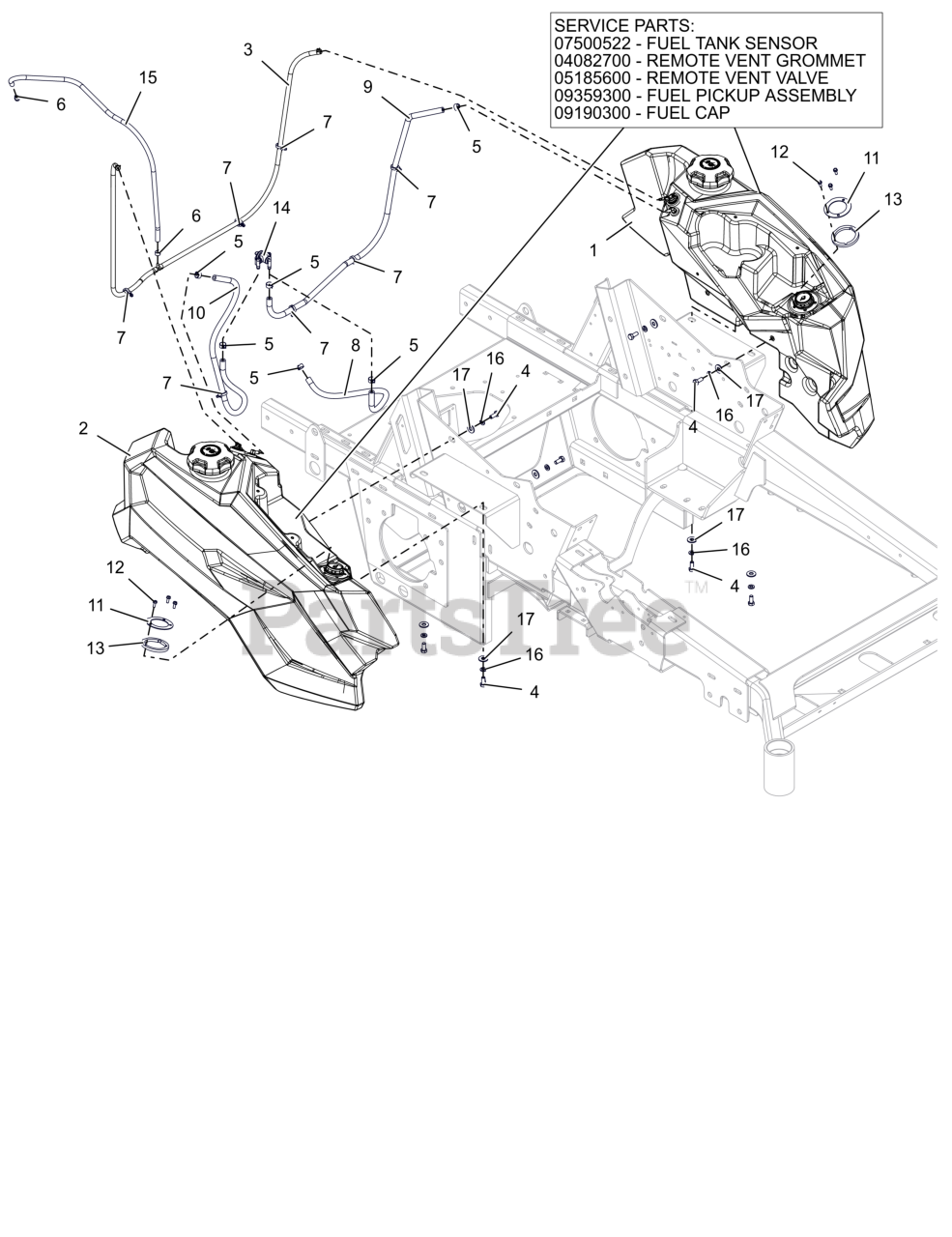

Fuel Tanks - Kawasaki FX850 EFI Parts Diagram

  • Title

1

Gravely 09673200

ASM- PT300-500 LH FUEL TANK

$517.99

$

Usually ships in 4-12 days

0

1

Gravely 07500522

GAUGE- REMOTE SEALED FUEL

Note: Component Service Part

$56.99

$

Usually ships in 4-12 days

0

1

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: Component Service Part

$3.49

$

In Stock, Qty 9

0

1

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: Component Service Part

$17.99

$

In Stock, only 1 left!

0

1

Gravely 09359300

FUEL PICKUP ASSEMBLY

Note: Component Service Part

$

$

Not available

1

Gravely 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

Note: Component Service Part

$33.99

$

In Stock, Qty 20+

0

2

Gravely 09673400

ASM- PT300-500 RH FUEL TANK

$

$

Not available

2

Gravely 07500522

GAUGE- REMOTE SEALED FUEL

Note: Component Service Part

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: Component Service Part

$3.49

$

In Stock, Qty 9

0

2

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: Component Service Part

$17.99

$

In Stock, only 1 left!

0

2

Gravely 09359300

FUEL PICKUP ASSEMBLY

Note: Component Service Part

$

$

Not available

2

Gravely 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

Note: Component Service Part

$33.99

$

In Stock, Qty 20+

0

3

Gravely 09683500

ASM- PT300/500/600 VENT LINE

$

$

Not available

4

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

7

Gravely 07500515

CLIP- PUSH-IN X-MAS TREE CABLE

$

$

Not available

8

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

10

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

11

Gravely 30150651

RETAINER, FUEL GAUGE (BLACK)

$

$

Not available

12

Gravely 06100137

SCR-MCH 10-24X.50 HWHSTAINLESS

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 30150551

SPCR, FUEL GAUGE RETAINER (BLACK)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 09389900

VALVE, FUEL - WITH MAGNET
(Superseded to 30193300)

$39.99

$

Usually ships in 4-12 days

0

15

Gravely 04745900

HOSE, .188 30R7 BULK

$

$

Not available

16

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0
