992529 (Pro-Turn 360) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX EFI (SN: 010000 & Above) Engine - Kawasaki FX850 EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX EFI

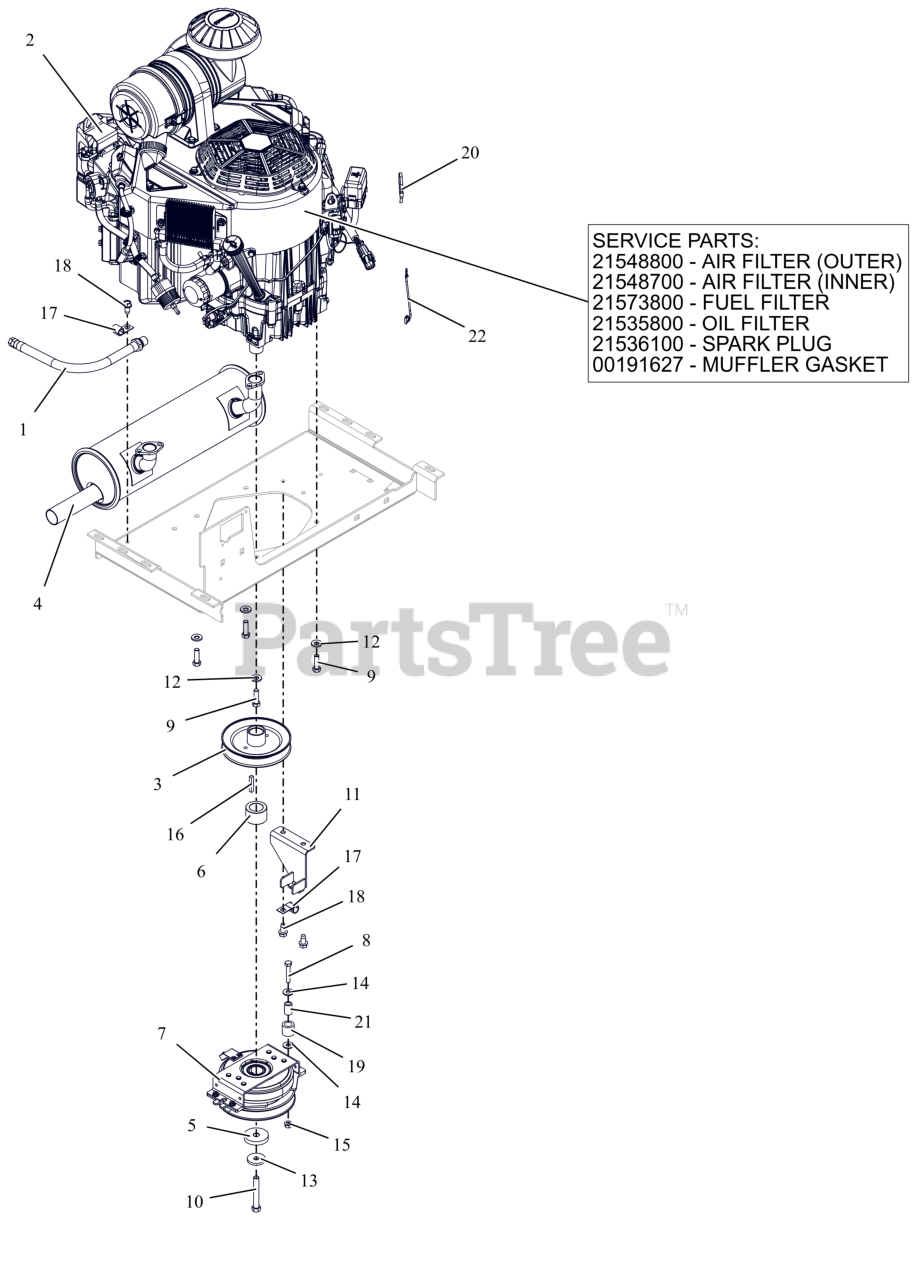

Engine - Kawasaki FX850 EFI Parts Diagram

  • Title

1

Gravely 07001731

HOSE, OIL DRAIN

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 08201424

ENGINE, KAWASAKI - FX 850 EFI W/VOLT REG

$

$

Currently unavailable

2

Gravely 21548800

FILTER, OUTER

Note: Component Service Part

$27.99

$

In Stock, Qty 20+

0

2

Gravely 21548700

FILTER, INNER - KAW

Note: Component Service Part

$27.99

$

In Stock, Qty 20+

0

2

Gravely 21573800

FUEL FILTER

Note: Component Service Part

$

$

Not available

2

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

2

Gravely 21536100

PLUG, SPARK

Note: Component Service Part

$3.49

$

In Stock, Qty 20+

0

2

Gravely 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$7.99

$

Usually ships in 4-12 days

0

3

Gravely 09374300

WLDMT, TRANSAXLE DRIVE PULLEY

$85.99

$

Usually ships in 4-12 days

0

4

Gravely 09386000

MUFFLER, KAWASAKI FX850

$168.99

$

Usually ships in 4-12 days

0

5

Gravely 05501240

SPACER, .474/.459X2.00X.350

$14.99

$

In Stock, only 1 left!

0

6

Gravely 05501427

SPCR, 1.125 x 1.750 x 1.147

$

$

Not available

7

Gravely 09653700

CLUTCH- OGURA GT2.75-DC03(D)

$

$

Not available

8

Gravely 05901804

BLT, HEX .31-18X1.75 G5 ZCC

$2.99

$

In Stock, Qty 8

0

9

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

10

Gravely 05901819

BLT, HEX 0.4375-20X3 G8 ZCC NT

$5.99

$

In Stock, only 1 left!

0

11

Gravely 09674051

BRKT- CLUTCH STOP - BLACK

$

$

Not available

12

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

13

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

14

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$5.99

$

In Stock, only 2 left!

0

20

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

21

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$5.99

$

In Stock, only 1 left!

0

22

Gravely 03286700

LEAD - STARTER SOLENOID

$9.49

$

Usually ships in 4-12 days

0
