992528 (Pro-Turn 352) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 010000 & Above) Engine - Kawasaki FX801 Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

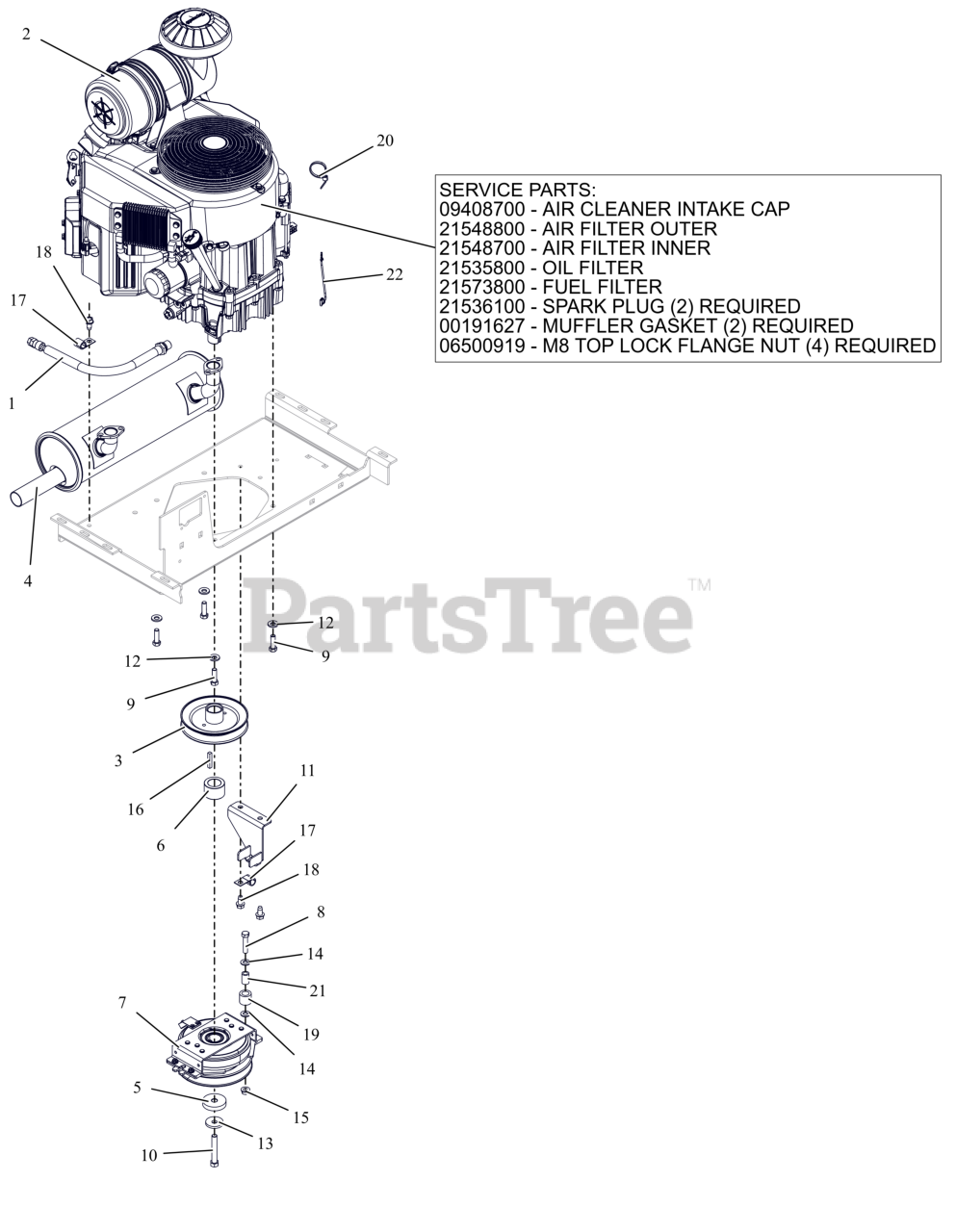

Engine - Kawasaki FX801 Parts Diagram

  • Title

1

Gravely 07001731

HOSE, OIL DRAIN

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 08201505

ENGINE, KAWASAKI FX801

$

$

Currently unavailable

2

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

Note: Component Service Part

$51.99

$

In Stock, only 1 left!

0

2

Gravely 21548800

FILTER, OUTER

Note: Component Service Part

$27.99

$

In Stock, Qty 20+

0

2

Gravely 21548700

FILTER, INNER - KAW

Note: Component Service Part

$27.99

$

In Stock, Qty 20+

0

2

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

2

Gravely 21573800

FUEL FILTER

Note: Component Service Part

$

$

Not available

2

Gravely 21536100

PLUG, SPARK

Note: Component Service Part

$3.49

$

In Stock, only 2 left!

0

2

Gravely 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$7.99

$

In Stock, only 2 left!

0

2

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

Note: Component Service Part

$2.49

$

In Stock, Qty 18

0

3

Gravely 09374300

WLDMT, TRANSAXLE DRIVE PULLEY

$85.99

$

Usually ships in 4-12 days

0

4

Gravely 09386000

MUFFLER, KAWASAKI FX850

$168.99

$

In Stock, only 1 left!

0

5

Gravely 05501222

SPACER, .450X2.00X.396

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 05501427

SPCR, 1.125 x 1.750 x 1.147

$

$

Not available

7

Gravely 09653700

CLUTCH- OGURA GT2.75-DC03(D)

$

$

Not available

8

Gravely 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

10

Gravely 05902013

BLT, HEX 0.4375-20X2.75 G8 ZCC NT

$4.49

$

In Stock, Qty 11

0

11

Gravely 09674000

BRKT, CLUTCH STOP

$14.99

$

Usually ships in 0 days

0

12

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

13

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

14

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$5.99

$

In Stock, only 2 left!

0

20

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

21

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$5.99

$

In Stock, only 1 left!

0

22

Gravely 03286700

LEAD - STARTER SOLENOID

$9.49

$

Usually ships in 4-12 days

0
