992525 (Pro-Turn 372) - Gravely Pro-Turn 72" Zero-Turn Mower, Kawasaki FX (SN: 000400 - 000999) Frame, Front Bumper and Battery Tray - 72" Parts Diagram

Pro-Turn 72" Zero-Turn Mower, Kawasaki FX

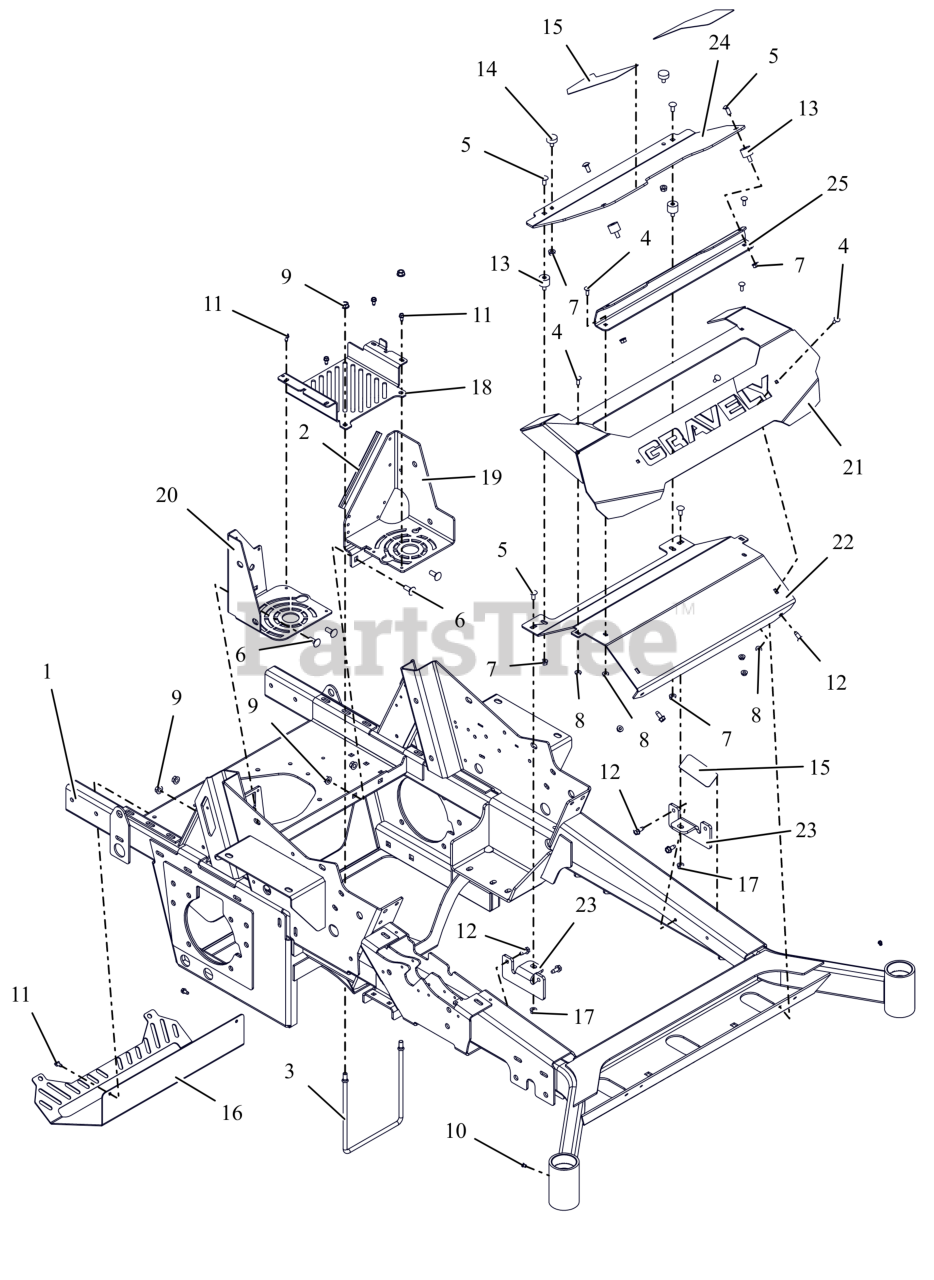

Frame, Front Bumper and Battery Tray - 72" Parts Diagram

  • Title
1

Gravely 09363953

WLDMT, MACH ONE, 72" FRAME (RED)

$1612.99

$

Usually ships in 4-12 days

0

2

Gravely 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 03975800

ROD, BRAKE MTG

$23.99

$

Usually ships in 4-12 days

0

4

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 13

0

5

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

7

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, only 1 left!

0

11

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0

13

Gravely 07500214

BUMPER,STUD MNTD W/FEMALE INSR

$20.99

$

Usually ships in 4-12 days

0

14

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

15

Gravely 09390700

KIT, PT300-600 ANTI-SKID Tape

$51.99

$

Usually ships in 4-12 days

0

16

Gravely 09375151

GUARD, MUFFLER (BLACK)

$62.99

$

Usually ships in 4-12 days

0

17

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09494753

TRAY- BATTERY

$32.99

$

Usually ships in 4-12 days

0

19

Gravely 09670753

GUSSET-LH BATTERY TRY/ROPS-RED

$77.99

$

Usually ships in 4-12 days

0

20

Gravely 09670853

GUSSET- FAN GUARD/ROPS - RED

$

$

Not available

21

Gravely 09672453

BMPR-PT300-500 FRT FTRST/ -RED

$206.99

$

Usually ships in 4-12 days

0

22

Gravely 09672551

BRKT-FRT BUMPER MTG/BACKER-BLK

$

$

Not available

23

Gravely 30135000

BRKT, FOOTREST MTG (RED)

$

$

Not available

24

Gravely 30157653

FOOTREST, PT300-500 (RED)

$79.99

$

Usually ships in 4-12 days

0

25

Gravely 30157751

BRKT, FOOTREST SUPPORT (BLK)

$34.99

$

Usually ships in 4-12 days

0
