992523 (Pro-Turn 360) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FT EFI (SN: 000101 - 000399) Control Panel - RH - Kawasaki FT730 Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FT EFI

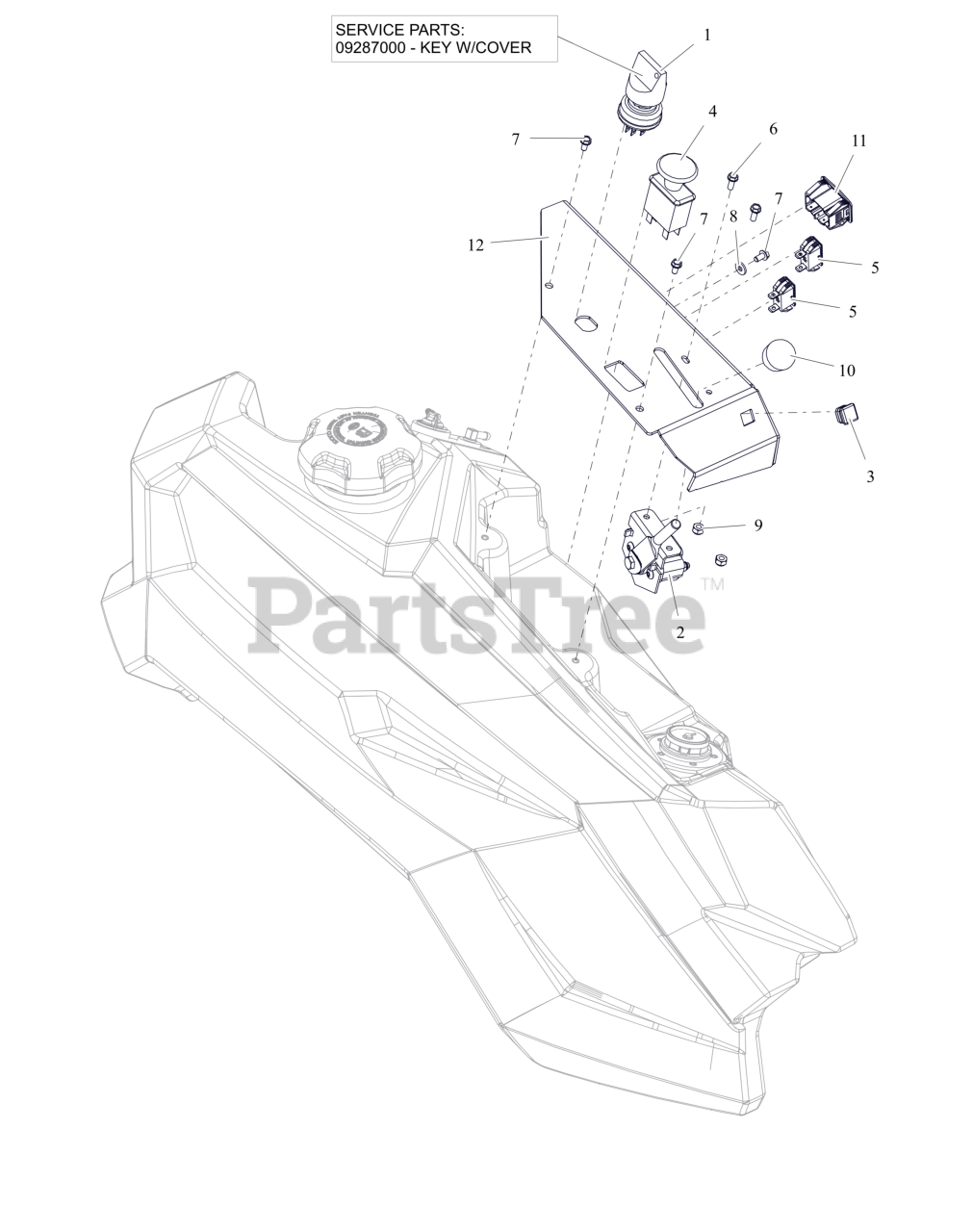

Control Panel - RH - Kawasaki FT730 Parts Diagram

  • Title

1

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

1

Gravely 09287000

KEY, W/ SHIELD

Note: Component Service Part

$14.99

$

In Stock, Qty 20+

0

2

Gravely 06900711

CONTROL, ELECTRONIC THROTTLE

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 07500123

PLUG, 5/8" SQ BLACK (14-20GA)

$

$

Not available

4

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

5

Gravely 05128700

LIGHT, INDICATOR (RED)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 11

0

8

Gravely 06401029

WSHR-FL-STL .196X.50X.06 ZC120

$

$

Not available

9

Gravely 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, Qty 8

0

11

Gravely 09497400

HOUR METER

$23.99

$

In Stock, only 2 left!

0

12

Gravely 09677653

PANEL- RH CONTROL (RED)

$

$

Not available
