992520 (Pro-Turn 348) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 000400 - 000999) Casters and Drive Wheels - 48" Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

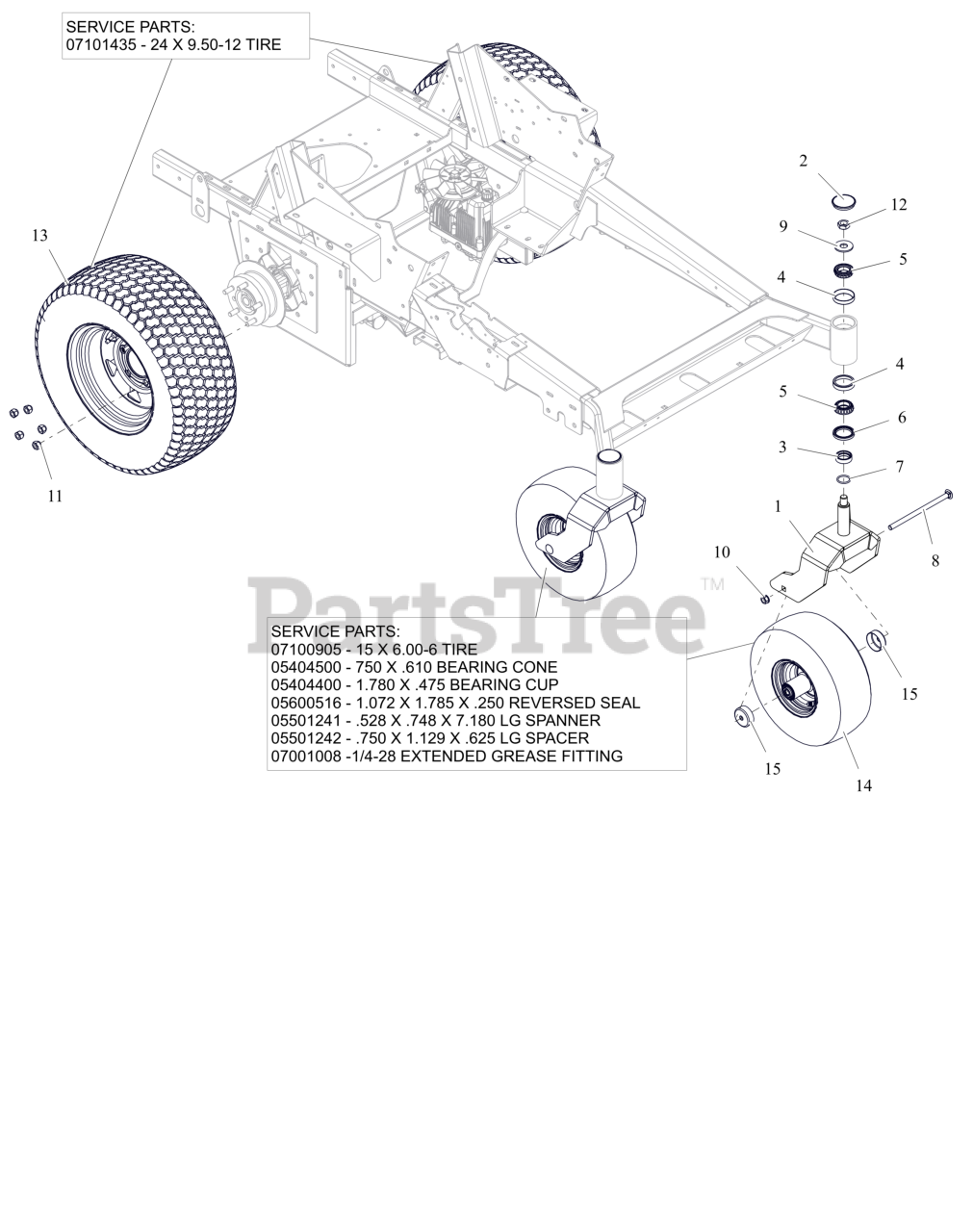

Casters and Drive Wheels - 48" Parts Diagram

  • Title
1

Gravely 09372353

WLDMT, CASTER FORK (RED)

$

$

Not available

2

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

3

Gravely 04861500

SPCR, FRONT CASTER FORK

$14.99

$

In Stock, Qty 6

0

4

Gravely 05404600

BRG-CUP 2.328X.465

$13.99

$

In Stock, only 2 left!

0

5

Gravely 05404700

BRG-CONE 1.25X.66

$20.99

$

In Stock, Qty 20+

0

6

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

7

$2.49

$

In Stock, Qty 8

0

8

Gravely 06200322

BTL,RHSN .500-13 X 9 G5 ZCC
(Superseded to 06200510)

$7.99

$

In Stock, only 2 left!

0

9

Gravely 06401201

WSHR-FL-STL 0.812X2X0.148 ZCC

$3.99

$

In Stock, only 3 left!

0

10

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500933

NUT, JAM-TOPLOCK .750-16 ZCC

$3.99

$

In Stock, only 1 left!

0

13

Gravely 07101434

ASM-WHL/TIRE24X9.5-12 RAD BK

$239.99

$

Usually ships in 4-12 days

0

13

Gravely 07101434

ASM-WHL/TIRE24X9.5-12 RAD BK

Note: Component Service Part

$239.99

$

Usually ships in 4-12 days

0

13

Gravely 07140500

TUBE 22,23&24X8.50/9.50/10.00/10.50/12.00-12

Note: Component Service Part

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 07101512

ASM-WHL/TIRE15X6.00-6 SMTH BLK

$

$

Not available

14

Gravely 07100905

TIRE, 15X6-6 SMOOTH

Note: Component Service Part

$45.99

$

In Stock, only 1 left!

0

14

Gravely 05404500

BRG-CONE .750X.61

Note: Component Service Part

$23.99

$

In Stock, Qty 9

0

14

Gravely 05404400

BRG-CUP 1.781X.475

Note: Component Service Part

$10.99

$

In Stock, Qty 20+

0

14

Gravely 05600516

SEAL,1.072X1.785X.250 REVERSED

Note: Component Service Part

$21.99

$

In Stock, Qty 9

0

14

Gravely 05501241

SPANNER, .528X.748X7.18 LG

Note: Component Service Part

$30.99

$

In Stock, only 1 left!

0

14

Gravely 05501242

SPACER, .750X1.129X.625 LG

Note: Component Service Part

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 07001008

GREASE FITTING 1/4-28 EXTENDED

Note: Component Service Part

$12.99

$

In Stock, only 2 left!

0

14

Gravely 07140200

TUBE 15X6-6

Note: Component Service Part

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0
